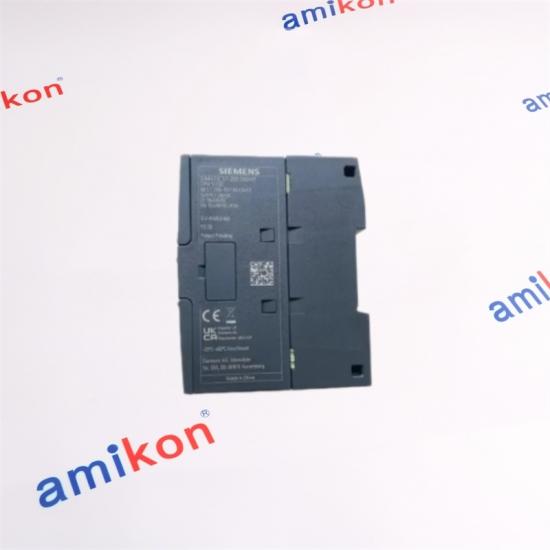

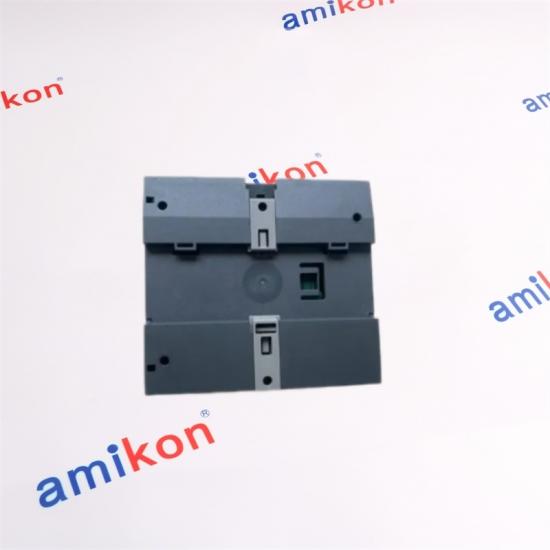

6ES7288-1ST30-0AA1

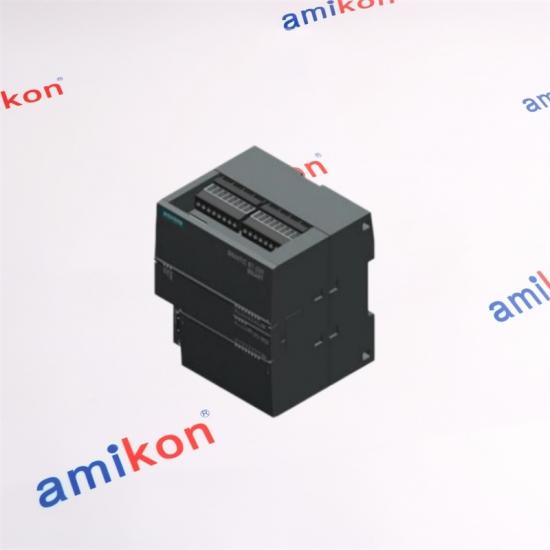

The SIMATIC S7-200 SMART CPU ST30 combines integrated digital I/O, high-speed technology functions and industrial communication interfaces in a compact controller for machine and process automation.

Core Specifications

Where the ST30 Fits

The 6ES7288-1ST30-0AA1 belongs to the SIMATIC S7-200 SMART family and is suited to compact automation architectures where integrated digital I/O and controller-level communication are required.

Its PROFINET interface supports controller and device functions, while the RS-485 interface provides an additional serial communication path for compatible automation equipment.

Keep Your Automation Running.

Since 2005, Amikon has focused on industrial automation components and hard-to-find control-system parts. Our inventory covers PLC, HMI, DCS, industrial PC and drive-related components, helping maintenance teams restore existing systems without unnecessary replacement of complete control architectures.

It is a SIMATIC S7-200 SMART CPU ST30 standard CPU with DC/DC/DC power and integrated digital I/O.

The CPU provides 18 digital inputs rated for 24 V DC operation. Six inputs can be used for technological functions such as high-speed counting.

The ST30 provides 12 transistor digital outputs. Three outputs can be used as high-speed pulse outputs with a maximum switching frequency of 100 kHz.

The CPU includes one industrial Ethernet interface for PROFINET and one RS-485 interface. The PROFINET interface supports controller and device functions.

Siemens specifies STEP 7 Micro/WIN SMART as the engineering system for this CPU family.

The rated supply voltage is 24 V DC, with a permissible range from 20.4 V DC to 28.8 V DC.
