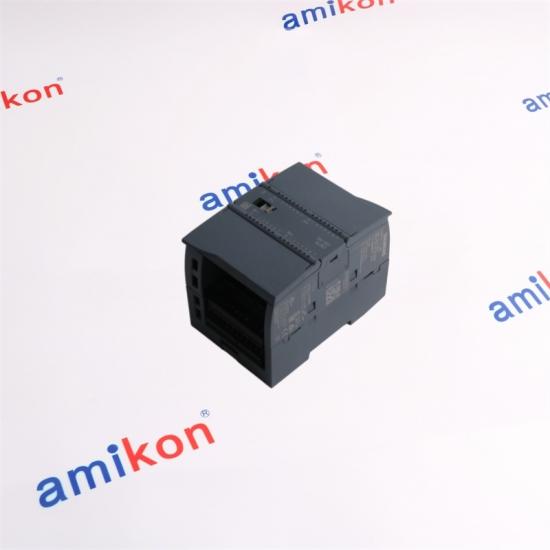

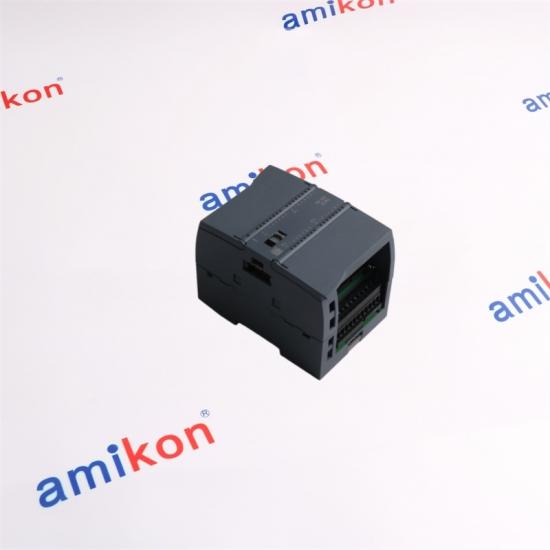

The SIEMENS 6ES7223-1PL32-0XB0 is a SIMATIC S7-1200 SM 1223 digital I/O module featuring 16 digital inputs and 16 relay digital outputs. The module is designed with 24 V DC digital inputs and relay outputs rated at up to 2 A.
SIEMENS 6ES7223-1PL32-0XB0 belongs to the SIMATIC S7-1200 SM 1223 digital input/output module family. It combines 16 digital inputs and 16 digital relay outputs within one expansion module.
The digital input section operates with a rated input voltage of 24 V DC and supports sink/source input characteristics. The relay output section is designed for switching loads with a maximum resistive load current of 2 A.
With a rated 24 V DC supply voltage and a permissible supply range from 20.4 V DC to 28.8 V DC, the module provides digital signal expansion for compatible SIMATIC S7-1200 automation configurations.
|
16 DI
DIGITAL INPUTS
|
16 DO
RELAY OUTPUTS
|
24 V
RATED DC INPUT
|
2 A
OUTPUT RATING
|
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Article Number | 6ES7223-1PL32-0XB0 |
| Product Type | SM 1223, DI 16 × 24 V DC, DQ 16 × Relay |
| Product Family | SM 1223 Digital Input/Output Modules |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 20.4 V DC to 28.8 V DC |
| Backplane Bus Current | 5 V DC, maximum 180 mA |
| Typical Power Loss | 10 W |
| Number of Digital Inputs | 16 |
| Digital Input Grouping | Groups of 2 |
| Rated Input Voltage | 24 V DC |
| Signal “0” Input Level | 5 V DC at 1 mA |
| Signal “1” Input Level | 15 V DC at 2.5 mA |
| Selectable Input Delay | 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms |
| Number of Digital Outputs | 16 |
| Digital Output Grouping | Groups of 4 |
| Output Type | Relay |
| Maximum Resistive Load | 2 A |
| Rated DC Output Voltage | 5 V DC to 30 V DC |
| Rated AC Output Voltage | 5 V AC to 250 V AC |
| Short-Circuit Protection | External protection required |
| Combined I/O Expansion Integrates 16 digital inputs and 16 relay digital outputs in one SM 1223 module. |
24 V DC Digital Inputs Designed for 24 V DC input signals with sink/source characteristics. |
| Selectable Input Delay Supports multiple selectable delay values from 0.2 ms to 12.8 ms. |
Relay Switching Capability Provides relay outputs with a maximum resistive load switching capacity of 2 A. |
The module is intended for compatible SIMATIC S7-1200 automation systems requiring combined digital input monitoring and relay output control.
| 01. Digital signal acquisition | 02. Relay-based output switching |
| 03. SIMATIC S7-1200 I/O expansion | 04. Mixed digital monitoring and control tasks |
SIEMENS 6ES7223-1PL32-0XB0 integrates 16 digital inputs and 16 relay digital outputs, combining input acquisition and output switching in one S7-1200 expansion module.
The digital inputs are rated at 24 V DC. A signal “0” is specified at 5 V DC and 1 mA, while a signal “1” is specified at 15 V DC and 2.5 mA.
The module supports parameterizable input delay settings of 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms.
Each relay output is specified for a maximum resistive load of 2 A. The output section supports rated voltage ranges from 5 to 30 V DC and from 5 to 250 V AC.
The module has a rated supply voltage of 24 V DC, with a permissible operating range from 20.4 V DC to 28.8 V DC. Its maximum backplane bus current is 180 mA at 5 V DC.
