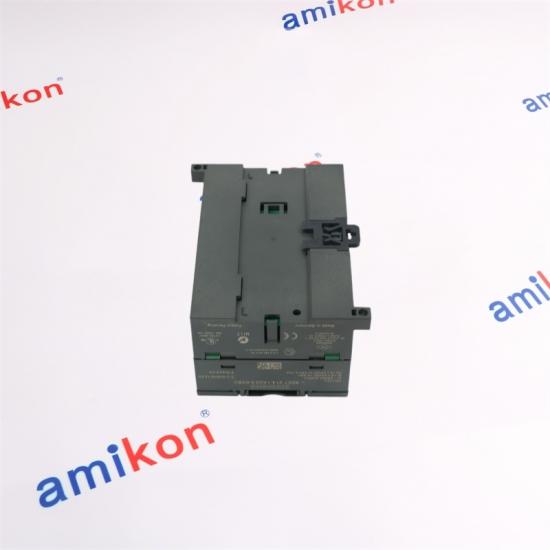

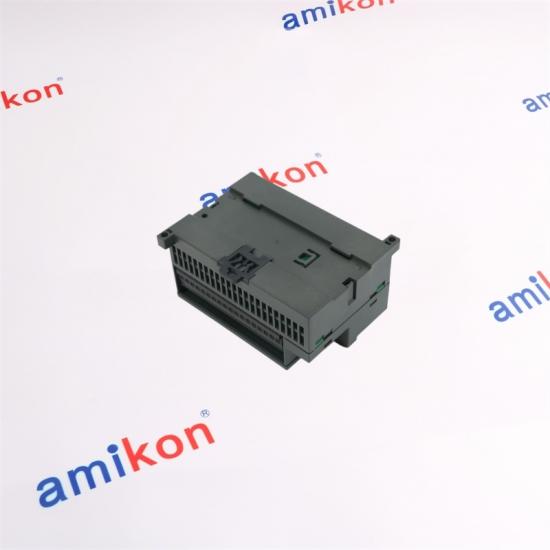

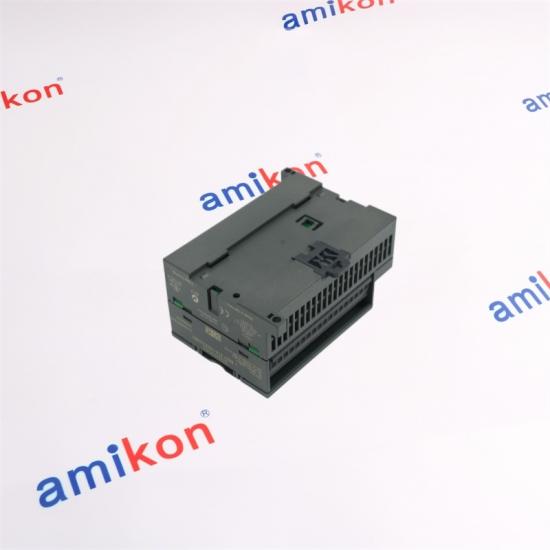

Siemens 6ES7214-1AD23-0XB0

SIMATIC S7-200 CPU 224 Compact Unit with 24 V DC supply, 14 digital inputs and 10 transistor outputs.

When is this CPU commonly searched for?

Maintenance teams typically identify this part number when an existing S7-200 CPU 224 requires replacement, when the controller no longer starts correctly, when the installed CPU has suffered a hardware fault, or when a discontinued machine requires a matching controller rather than a complete control-system redesign.

A failed PLC CPU can interrupt machine sequencing, digital I/O processing, communication with operator devices and connected automation functions. For production equipment that depends on continuous PLC operation, delayed replacement can therefore extend the overall machine downtime.

20 Years of Keeping Automation Moving

Since 2005, Amikon has developed into a global supplier of industrial automation spare parts and control-system components. Our focus is simple: help maintenance teams locate hard-to-find automation components quickly and keep established systems operating for longer.

Amikon maintains an extensive inventory covering PLCs, HMIs, DCS components, industrial PCs, panel controllers and VFD-related automation parts. Our team works with customers around the world to support maintenance replacement, stock replenishment and urgent automation requirements.

1. What distinguishes the Siemens 6ES7214-1AD23-0XB0 CPU 224 from other S7-200 CPUs in terms of integrated I/O?

The Siemens 6ES7214-1AD23-0XB0 provides 14 digital inputs and 10 transistor outputs in the CPU 224 compact unit, giving a relatively high integrated I/O count without requiring an additional basic digital I/O module.

2. How does the Siemens 6ES7214-1AD23-0XB0 handle high-speed counting and pulse-generation requirements?

The Siemens 6ES7214-1AD23-0XB0 integrates six high-speed counters with counting frequencies up to 30 kHz and two high-speed pulse outputs capable of up to 20 kHz.

3. Which communication functions are integrated into the Siemens 6ES7214-1AD23-0XB0?

The Siemens 6ES7214-1AD23-0XB0 has an integrated RS 485 interface and supports MPI, PPI and freely programmable serial communication. MPI transmission rates are specified from 19.2 to 187.5 kbit/s.

4. What expansion capacity should engineers consider when replacing a Siemens 6ES7214-1AD23-0XB0?

The Siemens 6ES7214-1AD23-0XB0 can support up to seven S7-22x expansion units. Depending on the selected configuration, the system can reach substantial digital and analog I/O expansion capacity.

5. Why is the Siemens 6ES7214-1AD23-0XB0 often important during maintenance of an established S7-200 control system?

Because the CPU combines the controller, digital I/O, RS 485 communication, high-speed counting and pulse-generation functions in one compact unit, a failed CPU can affect several control functions simultaneously. A matching replacement can therefore help reduce the scope and duration of an unplanned machine interruption.

Get Your Siemens 6ES7214-1AD23-0XB0 Quote

To help us respond quickly, please include the complete part number, required quantity, destination, required date and the machine or system where the component will be installed.
