Product Details

SIMATIC ET 200SP

Overview Specifications Application FAQ Contact

BASE UNIT · TYPE A0

6ES7193-6BP20-0BA0

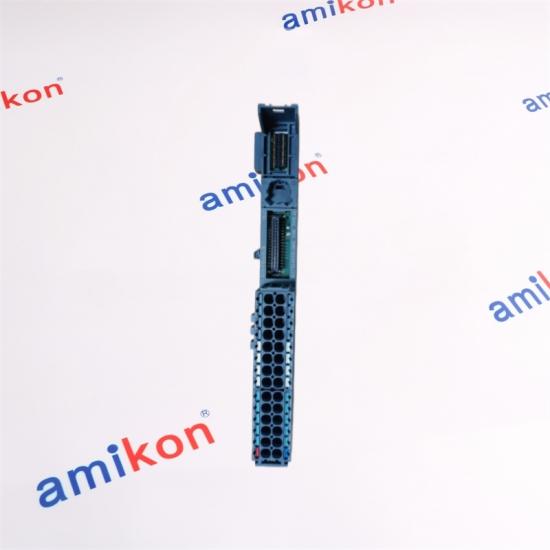

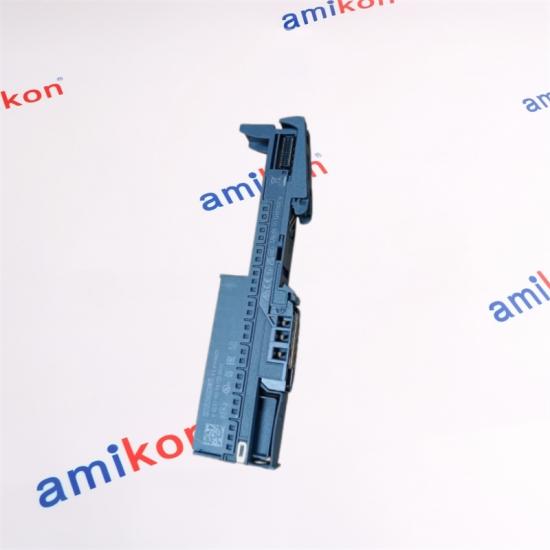

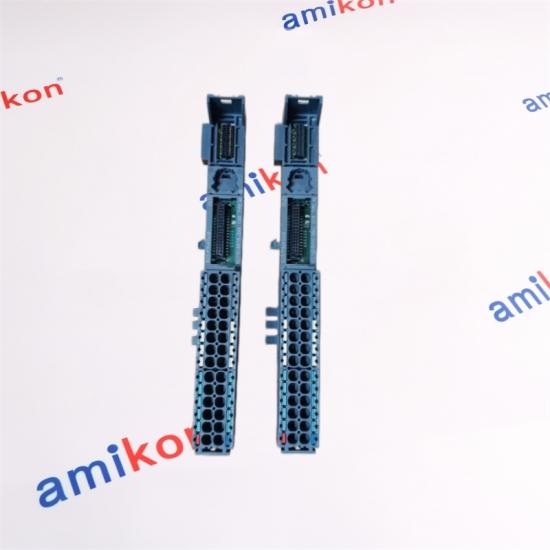

SIMATIC ET 200SP BaseUnit
BU15-P16+A10+2B

A compact ET 200SP BaseUnit with Push-in terminals, 10 AUX terminals and a potential group continued from the left. The unit is designed for one Type A0 slot and provides the connection interface for compatible ET 200SP I/O modules.

ET 200SP / BASE UNITS

KEY DIMENSION

mm width

141

mm height

mm depth

SUPPLY

24 V DC

P1 / P2 BUS

10 A max.

AUX BUS

10 A max.

PROCESS TERMINALS

2 A max.

TECHNICAL PROFILE

Connection Architecture

ET 200SP · BU type A0

TERMINAL DESIGN

Push-in

Push-in terminals are used for the process connections of the BaseUnit.

AUX CONNECTION

10 AUX

The BaseUnit provides 10 AUX terminals with the AUX bus bridged to the left.

POTENTIAL GROUP

Continued

The potential group is continued from the left rather than creating a new group.

CORE VALUES

Product type designation

BU type A0

Rated supply voltage

24 V DC

P1 / P2 bus current

10 A maximum

AUX bus current

10 A maximum

Process terminal current

2 A maximum

Dimensions W × H × D

15 × 141 × 35 mm

ET 200SP FIELD CONNECTION

Built for the
modular I/O station

This BaseUnit forms part of the connection structure of an ET 200SP station. When a BaseUnit is missing, damaged or no longer provides reliable terminal connections, maintenance teams may search the exact article number to restore the affected I/O position.

01 I/O module connection

02 Potential group continuity

03 Compact cabinet installation

In a running automation installation, a defective BaseUnit can affect the physical connection of the associated I/O position. For maintenance teams, matching the exact BaseUnit type, terminal arrangement and dimensions helps avoid unnecessary changes to the surrounding ET 200SP assembly.

INSTALLATION RANGE

Designed for compact control cabinets

−

−30 °C

minimum horizontal / vertical operating temperature

60 °C

maximum operating temperature for horizontal installation

↑

5,000 m

maximum installation altitude above sea level

TECHNICAL FAQ

Questions that matter during replacement

Focused on the practical details engineers normally verify before replacing an ET 200SP BaseUnit.

01 Does 6ES7193-6BP20-0BA0 use screw terminals?

No. This BaseUnit uses Push-in terminals. The terminal technology is therefore one of the first points to verify when replacing another ET 200SP BaseUnit with a different terminal arrangement.

02 What is the difference between this BaseUnit and an A0 unit without AUX terminals?

The 6ES7193-6BP20-0BA0 is the BU15-P16+A10+2B version. It provides 10 AUX terminals and the AUX bus is bridged to the left. This makes the terminal arrangement different from the A0 variants with no AUX terminals.

03 Can the AUX bus carry the same current as the process terminals?

No. The specified maximum is 10 A for the AUX bus, while the process terminals are rated at 2 A maximum. These values should be considered separately when checking an installation.

04 Does this BaseUnit create a new potential group?

No. For this model, the potential group is continued from the left. This distinction is important when matching the BaseUnit to the intended ET 200SP station arrangement.

05 What dimensions should be checked before ordering a replacement?

The listed dimensions are 15 mm width, 141 mm height and 35 mm depth. These dimensions are useful when checking cabinet space and the physical position within an ET 200SP station.
