SIMATIC ET 200SP

PRODUCT SYSTEM STOCK CONTACT FAQ MODELS

HIGH-SPEED ANALOG OUTPUT / ET 200SP

6ES7135-6HB00-0DA1

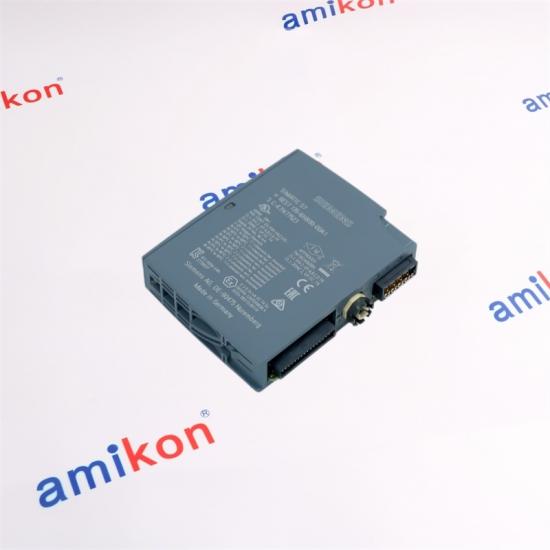

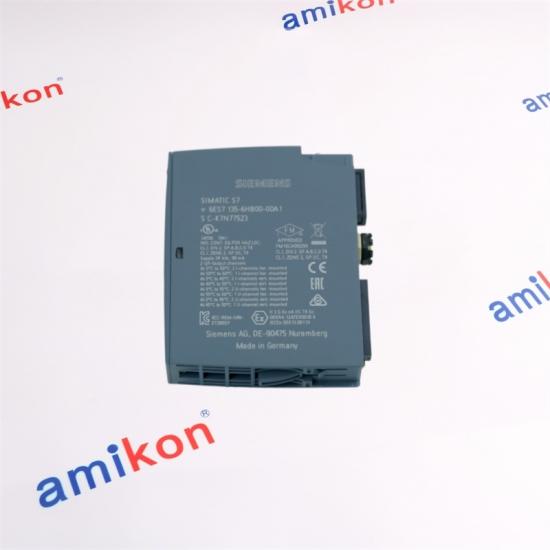

The SIMATIC ET 200SP AQ 2xU/I HS is a two-channel analog output module designed for high-speed voltage and current signal generation. Its combination of 16-bit resolution, short activation time and channel-level diagnostics makes it suitable where compact distributed I/O must provide controlled analog signals to actuators and other process loads.

The module supports voltage ranges of ±10 V, ±5 V, 0–10 V and 1–5 V, together with current ranges of ±20 mA, 0–20 mA and 4–20 mA. Output behavior can be parameterized for different process requirements, while diagnostic functions help maintenance teams distinguish wiring, supply and module conditions.

Analog
Outputs

High-speed ET 200SP signal generation

CORE PARAMETERS

2 Channels
Independent analog output channels

16-bit
Maximum resolution including sign

70 μs
Minimum execution and activation time

±0.2%
Operational limit for voltage/current over full temperature range

Signal Architecture / Performance Detail

Output ranges	Voltage: ±10 V, ±5 V, 0–10 V, 1–5 V Current: ±20 mA, 0–20 mA, 4–20 mA
Accuracy characteristics	Basic error limit ±0.1% at 25 °C; operational limit ±0.2%; output ripple ±0.02%; linearity error ±0.03%.
Diagnostics	Supply monitoring, wire-break detection for current output, short-circuit detection for voltage output, overflow/underflow, diagnostic alarms and LED status indication.
Synchronization	Isochronous operation supported; minimum bus cycle time 125 μs.

Where 6ES7135-6HB00-0DA1 Fits

ET 200SP
The module belongs to the compact distributed I/O architecture, using the ET 200SP station structure and compatible BaseUnits.

AQ 2xU/I HS
Compared with digital output modules, this module is intended for continuously variable voltage or current control signals.

Selection Point
Choose this model when two high-speed analog channels and flexible U/I ranges are required within ET 200SP.

AMIKON INDUSTRIAL SUPPLY

Amikon 's large stock is the core of our supply.

Our large stock of industrial products is ready for delivery, which is the core of our supply. It contains more than 400,000 electronic products, such as PLC, HMI, drivers, servo and CNC devices, IPC and PG.

Whether new or out of production, from the smallest module to the complete configuration. We have products that have not been available for many years, the latest technology and all other products in between.

Procurement & Technical Contact

Sales Manager: Miya zheng
Email: sales@amikon.cn
Phone / WhatsApp: +86 18020776792

Please provide Part Number, Quantity, Destination, Required Date and Machine/System when requesting a quotation.

Delivery: 3–5 days
Warranty: 12 months
Packaging: Brand New
Delivery Way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment: T/T

Return / Replacement: Please contact us within 7 days after receipt if there is a problem. Returned items should remain in original condition with a stated reason. A return or replacement can be arranged after the item is received. Shipping costs related to the return are the buyer's responsibility.

Buyer Questions / 6ES7135-6HB00-0DA1

Can 6ES7135-6HB00-0DA1 cover both voltage and current control tasks?	Yes. Each channel can be configured for voltage or current output, with several supported ranges including ±10 V, 0–10 V, 4–20 mA and 0–20 mA. This makes the module useful when the project contains mixed analog actuator requirements.
Is 6ES7135-6HB00-0DA1 suitable when fast analog response matters?	It is the high-speed AQ 2xU/I HS variant. The specified minimum execution and activation time is 70 μs and the minimum bus cycle time is 125 μs, making its high-speed architecture a key selection point.
What diagnostic advantage does 6ES7135-6HB00-0DA1 provide?	It provides supply-voltage monitoring, diagnostic alarms, overflow/underflow detection, current-output wire-break diagnostics and voltage-output short-circuit diagnostics. These functions can reduce troubleshooting time in distributed I/O installations.
What accuracy should be considered when selecting 6ES7135-6HB00-0DA1?	The basic error limit at 25 °C is ±0.1% of the output range for voltage and current. The operational limit over the full temperature range is ±0.2%.
What should be checked before ordering 6ES7135-6HB00-0DA1?	Confirm the ET 200SP station architecture, compatible BaseUnit requirement and required output type/range. For replacement work, comparing the existing module number and wiring arrangement before purchase helps avoid selecting a different output class.
