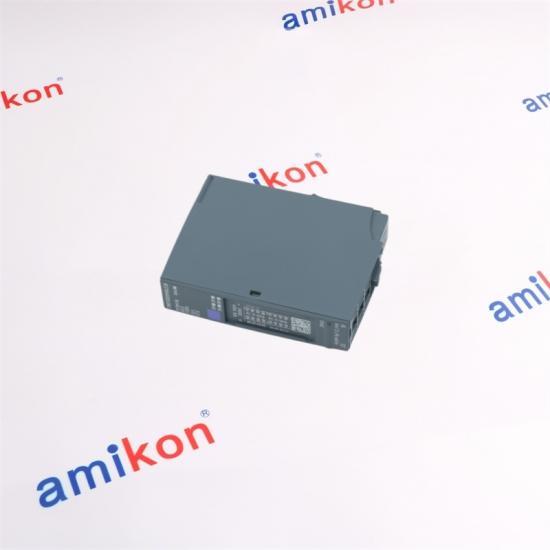

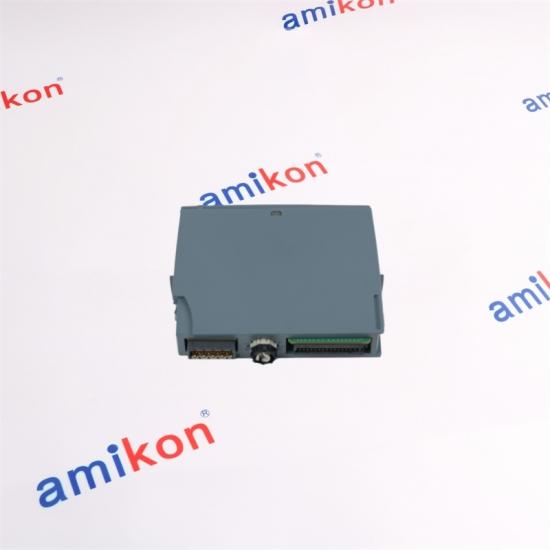

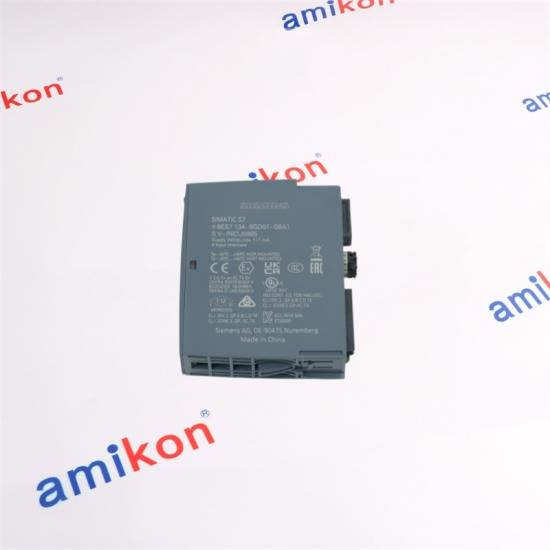

SIMATIC ET 200SP 6ES7134-6GD01-0BA1

SIMATIC ET 200SP • ANALOG INPUT

Siemens 6ES7134-6GD01-0BA1

AI 4xI 2-/4-wire Standard

A SIMATIC ET 200SP analog input module with four current inputs for 2-wire and 4-wire transmitters. The module provides 16-bit resolution, module diagnostics and compatibility with BU type A0 and A1.

4 Analog Inputs 16 Bit 2-/4-Wire

PRODUCT SNAPSHOT

4 × Current Input

Standard analog input module

Resolution	16 bit
Accuracy	±0.3%
Supply	24 V DC
BaseUnit	A0 / A1

CHANNELS

Differential inputs

INPUT TYPE

Current

2-wire / 4-wire

RESOLUTION

16 bit

Sigma-delta conversion

ACCURACY

±0.3%

Analog input accuracy

TECHNICAL PROFILE

Built for Flexible Current Measurement

Key electrical, configuration and mechanical characteristics

Input Characteristics

Number of inputs	4
Input configuration	Differential
Signal type	Current
Supported wiring	2-wire / 4-wire
Input resistance	100 Ω

Signal Ranges

Standard current range 0–20 mA

Bipolar current range -20–+20 mA

Process current range 4–20 mA

Conversion resolution 16 bit

Power & Diagnostics

Rated supply	24 V DC
Permitted supply range	19.2–28.8 V DC
Reverse polarity protection	Yes
Module diagnostics	Yes
I&M data	I&M0–I&M3

Installation & Integration

Compatible BaseUnits	BU type A0 / A1
Module width	15 mm
Module height	73 mm
Module depth	58 mm
Approx. weight	31 g

SYSTEM ROLE

Four Channels for Process Current Signals

The 6ES7134-6GD01-0BA1 belongs to the SIMATIC ET 200SP distributed I/O platform. Its four differential current inputs are intended for acquisition of analog process signals from suitable 2-wire or 4-wire transmitters.

01 Analog Signal Acquisition Receives current signals such as 0–20 mA and 4–20 mA from compatible process transmitters.	02 Distributed I/O Fits into an ET 200SP station using a compatible A0 or A1 BaseUnit.
03 Process Monitoring Suitable for control architectures where analog process values must be acquired by the automation system.	04 Maintenance Replacement A replacement search may arise when a running ET 200SP station develops an analog channel or module fault.

Why this part can matter during a plant interruption

If an analog input module in a distributed ET 200SP station stops acquiring process values correctly, the affected control logic may lose the expected measurement from one or more channels. Depending on the machine architecture and process interlocks, this can lead to alarms, degraded control or an interruption of production. Matching the replacement part to the existing station configuration helps reduce unnecessary commissioning work.

CONFIGURATION

Integration Highlights

STEP 01

Select the BaseUnit

The module is designed for BU type A0 and A1 BaseUnits.

STEP 02

Configure the Inputs

The four channels can be configured for supported current measurement ranges.

STEP 03

Check Diagnostics

Module diagnostics and identification data support operation and maintenance activities.

STEP 7 / TIA Portal

V14 / integrated

STEP 7

V5.6 and higher

16+ Years of Delivering Control System Parts Worldwide

Shop the Largest Inventory of the Rarest Parts

Find what you need. Search our store for parts for ABB, Alstom, Bently Nevada, Emerson, GE, Honeywell, Rolls Entronic, Siemens, Triconex, Westinghouse, and Woodward control systems.

Our Parts Are More Diverse

We continuously innovate and are committed to improving the global supply of automation parts. No matter where our customers are located, or how difficult it is to find parts, we aim to connect customers worldwide through our parts. Our extensive business scope allows us to provide a wide variety of parts needed by customers around the globe.

FREQUENT QUESTIONS

Siemens 6ES7134-6GD01-0BA1 FAQ

01. What type of module is Siemens 6ES7134-6GD01-0BA1?

It is a SIMATIC ET 200SP analog input module designated AI 4xI 2-/4-wire ST. It provides four differential current inputs and is designed for suitable 2-wire and 4-wire signal connections.

02. Which current ranges can 6ES7134-6GD01-0BA1 measure?

The module supports current input ranges including 0–20 mA, -20–+20 mA and 4–20 mA. The current input resistance is 100 Ω.

03. What BaseUnit can be used with Siemens 6ES7134-6GD01-0BA1?

The module is specified for use with BU type A0 and BU type A1 BaseUnits within the SIMATIC ET 200SP system.

04. What resolution does the 6ES7134-6GD01-0BA1 provide?

The analog conversion provides a resolution of up to 16 bit, with a specified analog input accuracy of ±0.3%.

05. What should be checked when replacing a 6ES7134-6GD01-0BA1?

Check the exact article number, ET 200SP station configuration, compatible BaseUnit, signal wiring, configured current range and the required controller engineering environment before replacement. This helps avoid a mismatch between the installed module and the existing automation configuration.
