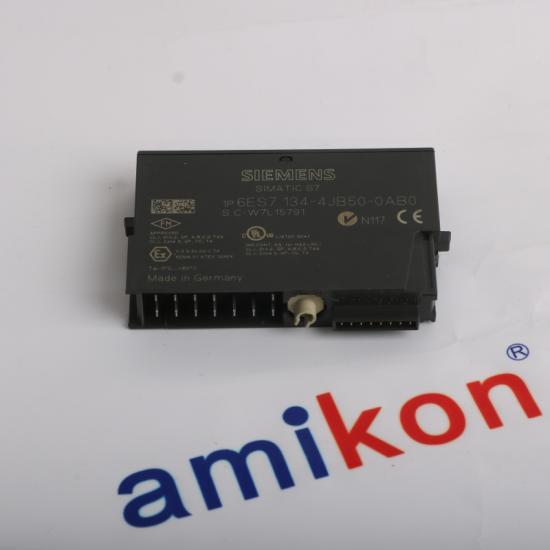

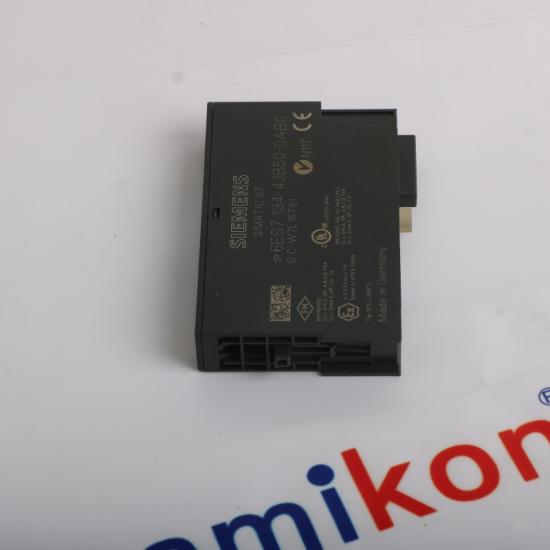

Siemens 6ES7134-4JB50-0AB0 Electronics module for ET 200S

The client wants to know more details

❏. Model number:  6ES7134-4JB50-0AB0

❏. Product type: Electronics module for ET 200S

❏. Manufacturer :  | Siemens

❏. Country of origin :  | Germany

❏. Lead time : In Stock | Huge Discount

❏. Worldwide shipping : DHL, UPS, Fedex, and TNT | Fast Delivery

Product Properties

❏.2 inputs (3- and 4-cable connection) / 4 inputs (2-cable connection) for resistance thermometers or resistance measurement

❏.Resistance thermometers: Pt100 (α = 0,003851); Ni100 (α = 0,00618); resolution 15 bit + sign

❏.Resistance measurement: 150 Ω; 300 Ω; 600 Ω, PTC; resolution max. 15 bit + sign

❏.Isolated from the load voltage L+

❏.Linearization of the sensor characteristic curves

❏.Extended temperature range from 0 to 50°C with vertical installation

❏.compatible with the 2AI RTD ST (6ES7134-4JB50-0AB50). The wiring does not have to be changed. The additional bridges on the terminal module of the 2AI RTD ST (6ES7134-4JB50-0AB50) do not have to be removed.

Our products are widely used in

1.CNC machinery metallurgy,

2.oil and gas,

3.petrochemical,

4.chemical,

5. paper printing,

6.textile printing and dyeing,

7.machinery,

8.electronics manufacturing,

9.automobile manufacturing,
