Power Characteristics

Control Cabinet Integration

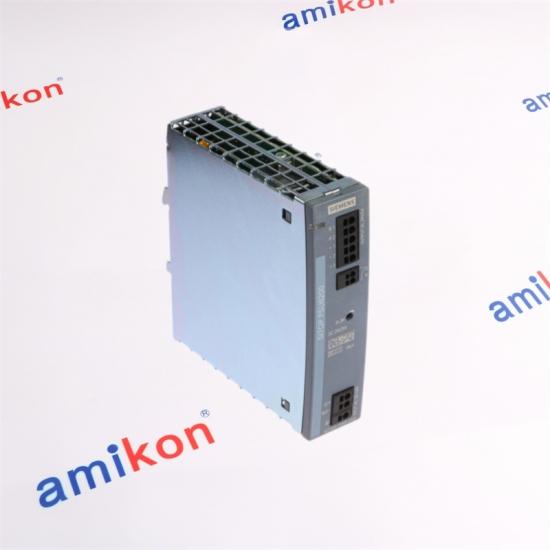

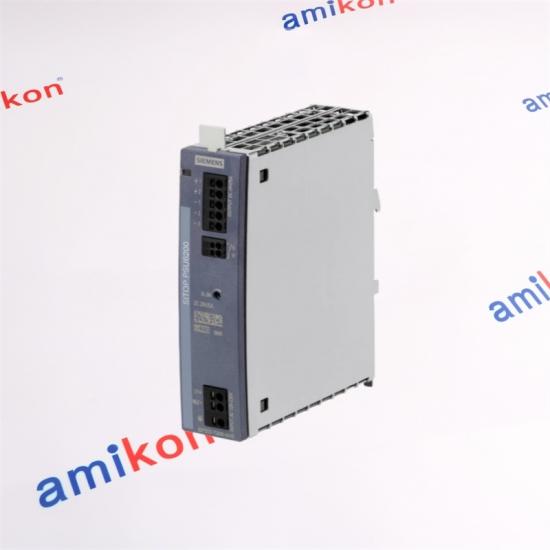

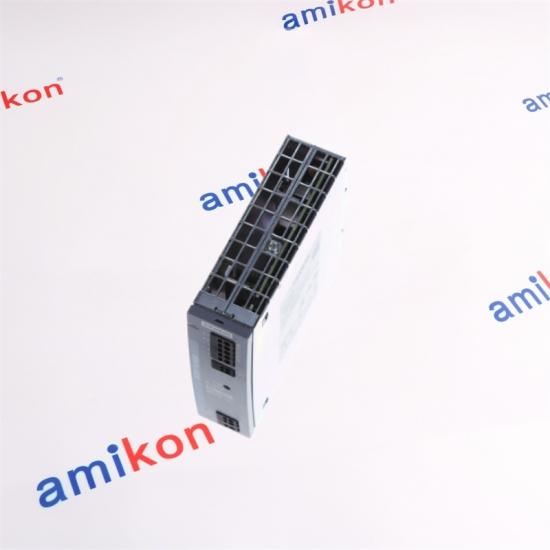

The 6EP3333-7SB00-0AX0 is designed for industrial power supply duties where a stabilized 24 V DC supply is required for control and automation equipment. Its single-phase input architecture supports both AC and DC input operation.

Automation Power Continuity

Stable DC power is fundamental to PLC, I/O, HMI and other control-side loads. When the power supply is overloaded, short-circuited or unavailable, downstream control functions can be interrupted and machine operation may stop.

Output Adjustment

Output voltage can be adjusted within the specified 24–28 V range.

Short-Circuit Protection

Electronic short-circuit protection operates with constant-current behavior and hiccup characteristics below the specified threshold.

DIN-Rail Format

The compact housing is designed for installation in industrial control cabinet environments.

What output does the 6EP3333-7SB00-0AX0 provide?

It provides a stabilized 24 V DC output with a rated output current of 5 A.

Can this SITOP power supply accept DC input?

Yes. The rated input is 120–240 V DC, with a specified DC input range of 110–275 V.

What is the AC input range?

The specified AC input range is 85–264 V AC, supporting the 120–230 V AC rated input.

Can the output voltage be adjusted?

Yes. The specified adjustment range is 24–28 V DC.

How does the unit respond to a short circuit?

It incorporates electronic short-circuit protection with constant-current behavior and hiccup operation below the specified output-voltage threshold.

What are the dimensions of the 6EP3333-7SB00-0AX0?

The housing measures approximately 35 × 135 × 125 mm in width, height and depth.
