Siemens 6DL3100-8AA Front End Module

Siemens  6DL3100-8AA Product Parameters

Applications of Siemens  6DL3100-8AA

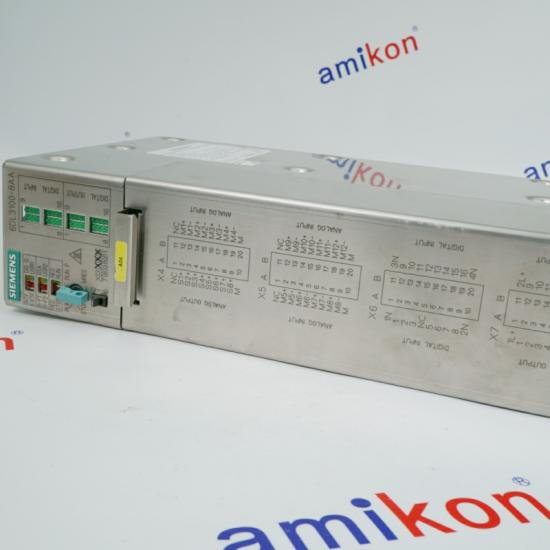

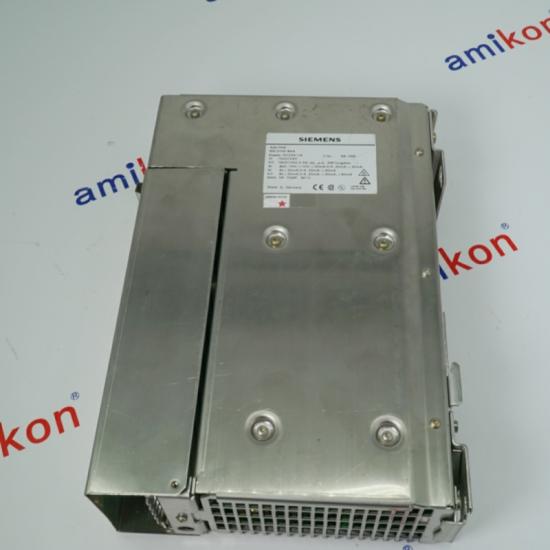

The 6DL3100-8AA Front End Module from Siemens, also known as the AddFEM, is a robust and versatile I/O interface module

designed for high-performance automation and control systems. It offers a comprehensive set of inputs and outputs, including 12

analog inputs—six fixed for current and six configurable for either current or voltage—alongside eight analog outputs, 15 digital inputs,

and 16 digital outputs. Among the digital inputs, three are dedicated high-speed pulse-counting channels, making the module suitable for

applications requiring precise speed or position detection. Communication with the central controller is established via PROFIBUS DP

at speeds up to 12 Mbps, and the module supports redundancy for increased system reliability. Its compact dimensions and compatibility

with platforms such as SIMATIC S7, PCS 7, SPPA-T3000, and SIMADYN D make it ideal for integration into demanding industrial environments.

Built for reliable signal acquisition and processing in real-time, the 6DL3100-8AA is commonly used in power generation,

turbine control, and other process-critical industries where consistent performance is paramount.
