Manufacturer |
Schneider Electric |
|
Range of Product |
Modicon X80 |
|
Product or Component Type |
Modbus Plus proxy module |
|
Structure type |
Industrial bus |
|
Category |
US1PC3418160 |
|
Discount Schedule |
PC34 |
We are: Amikon Automation Limited
We are the ideological leader of the world's automation manufacturing industry and are committed to promoting global industry exchanges.
No matter how complex your problem is, our experienced professional team will use the industry knowledge accumulated for many years to provide you with the most efficient solutions.
More than 20 Multilingual Services
Customers are located in 149 countries/regions.
Distribution Centers in the United Kingdom and the United States.
Professional contact channel
|
Sales Manager：Miya zheng |
|
E-mail: sales@amikon.cn |
|
Phone: 86-18020776792 （whatsapp） |
Specifications
|
Manufacturer |
Schneider Electric |
|
Range of Product |
Modicon X80 |
|
Product or Component Type |
Modbus Plus proxy module |
|
Structure type |
Industrial bus |
|
Category |
US1PC3418160 |
|
Discount Schedule |
PC34 |
|
GTIN |
3595864035918 |
|
Returnability |
Yes |
|
Country of origin |
FR |
|
Unit Type of Package 1 |
PCE |
|
Nbr. of units in pkg. |
1 |
|
Package 1 Height |
2.362 in (6.000 cm) |
|
Package 1 Width |
7.087 in (18.000 cm) |
|
Package 1 Length |
10.236 in (26.000 cm) |
Descripution
TCSEGDB23F24FA is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This module has 128 slaves, 10/100BASE-T and RS485 physical interfaces. It is a proxy module with an external current consumption 300mA at 24V DC. This Modbus Plus Proxy module allows PLCs to communicate with existing Modbus Plus devices without the need to modify these devices applications. It features 2 Ethernet TCP/IP - RJ45 for Modbus TCP and 2 Modbus - SUB-D 9 for Modbus plus for integrated connections. Its current consumption is 300 mA at 24V DC external. It shows a white coating. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. It conforms to UL 508, CSA 22.2, cUL, EMI EN 55011, EN 61131-2, and C-Tick specifications. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). The module is provided with a mounting plate, 2 front-mounted power supply connectors (2 positions). It can be attached either to a rack or to a DIN rail. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

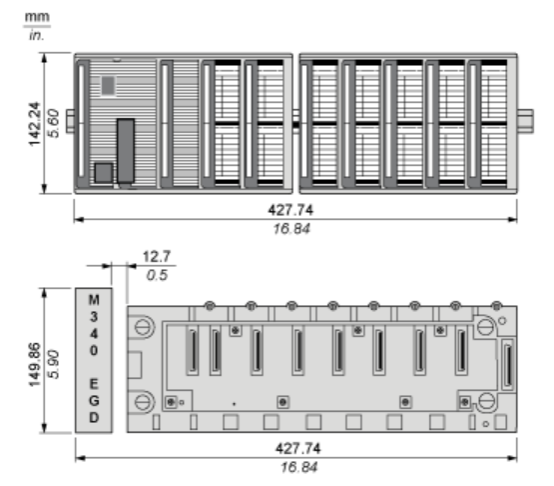

Dimensions Drawings
 |
||
|

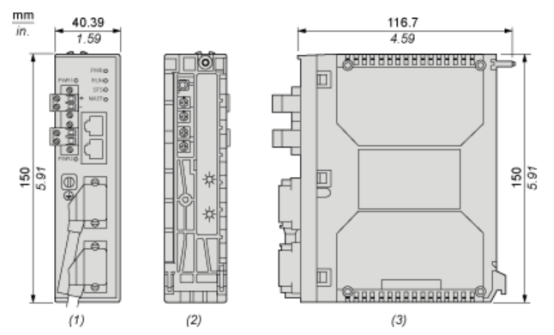

（1）Front |
（2）Rear |
（3）Side |
Mounting and Clearance
|
|
Schneider TCSEGDB23F24FA FAQ
|
Question : |
What advanced networking capabilities make the Schneider TCSEGDB23F24FA suitable for mission-critical industrial Ethernet infrastructures? |
|
Answer: |
The Schneider TCSEGDB23F24FA is engineered to provide high-performance industrial Ethernet communication with robust network stability, enabling reliable data exchange and continuous operation in demanding automation environments. |
|
Question : |
How does the Schneider TCSEGDB23F24FA enhance communication resilience within distributed automation systems? |
|
Answer: |
The Schneider TCSEGDB23F24FA supports efficient network traffic management and dependable data transmission, helping to minimize communication delays while maintaining consistent connectivity between controllers, field devices, and supervisory systems. |
|
Question : |
Which industrial sectors can maximize operational efficiency by deploying the Schneider TCSEGDB23F24FA? |
|
Answer: |
The Schneider TCSEGDB23F24FA is well suited for manufacturing facilities, power generation plants, oil and gas operations, water and wastewater treatment systems, transportation infrastructure, and other industrial applications requiring reliable Ethernet networking. |
|
Question : |
Why is the Schneider TCSEGDB23F24FA considered an effective solution for expanding industrial communication networks? |
|
Answer: |
The Schneider TCSEGDB23F24FA offers scalable network integration, dependable industrial-grade performance, and seamless interoperability with automation devices, making it an excellent choice for both new installations and system expansion projects. |
|
Question : |
What technical parameters should engineers assess before integrating the Schneider TCSEGDB23F24FA into an industrial Ethernet architecture? |
|
Answer: |
Before installing the Schneider TCSEGDB23F24FA, engineers should verify network topology, transmission speed, power requirements, port configuration, environmental specifications, and compatibility with existing automation equipment to ensure optimal communication performance and long-term reliability. |
