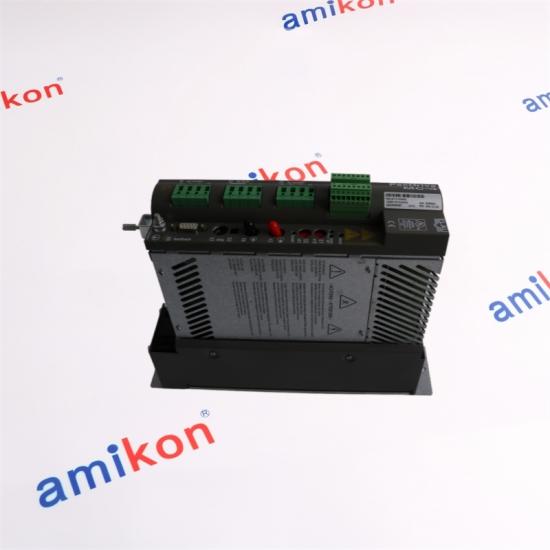

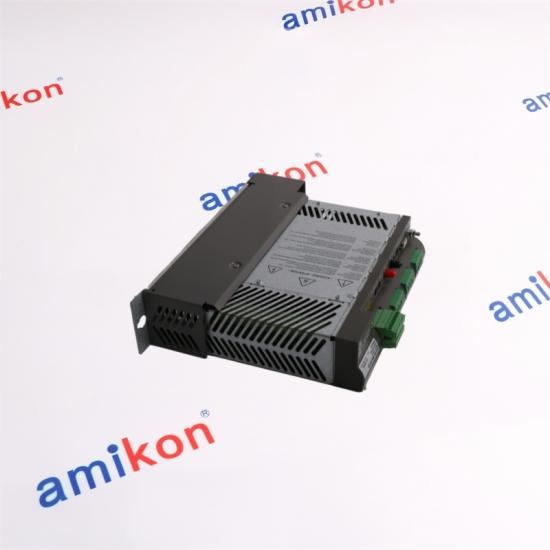

Model: MC-4/11/10/400 HW: E0R603 SW:V00.12.XX
Brand: SCHNEIDER
Warranty:12 months
7/24 online!
WE PROVIDE
●24-hour global logistics network with express courier partners cuts average lead times to <48 h worldwide—no rush fees, no hidden surcharges.
●Every part—new, used, or refurbished—is fully tested and protected by our industry-leading warranty, giving you risk-free operation.
●50+ professionals serve customers in 20+ languages. Custom CRM and real-time order tracking deliver a truly seamless buying experience.
●Aggressive purchasing power + excess-inventory buy-back programs translate into cost savings of up to 30 % versus OEM pricing.
●Authorized distributor for 100+ leading brands; counterfeit-free guarantee through rigorous incoming inspection and supplier audits.
WE ARE HERE FOR YOU
Manager: Miya Zheng
E-mail: sales@amikon.cn
F-WhatsApp/Mobile: 86-18020776792
FEATURES ABOUT MC-4/11/10/400 HW: E0R603 SW:V00.12.XX
●400 V-class servo drive delivering 10 A rms (≈ 4 kW) continuous for high-dynamic brushless servo motors.
●Integrated Safe Torque-Off (STO) SIL 3 / PL-e and single-cable encoder feedback (Hiperface DSL / EnDat) for plug-and-play motor replacement.
●Built-in EtherCAT 100 Mbps interface with 250 µs position-loop update; no option card required for multi-axis synchronisation.
DESCRIPTION
|
Mains supply: 3 × 380 – 480 V AC ±10 %, 48 – 63 Hz; in-rush ≤ 15 A; internal brake-chopper 400 W cont. / 8 kW peak. |
|
Rated output: 3 × 0 – 400 V AC; 10 A rms continuous, 20 A rms for 3 s (200 % overload); PWM 4 – 16 kHz (factory 8 kHz). |
|
Control loops: 62.5 µs current, 125 µs speed, 250 µs position; bandwidth ≥ 1 kHz current, ≥ 100 Hz speed. |
|
Max. cable length: 50 m motor power, 25 m feedback (OCT); shielded, 75 °C rated. |
|
I/O on-board: 1 × ±10 V analogue, 4 × 24 V digital inputs, 2 × 24 V outputs, 1 × relay 30 V / 1 A; encoder supply 8 V 350 mA. |
|
Protection & safety: STO, over-current ±150 %, DC-bus OVP 820 V, UVP 380 V, phase-loss, I²t, short-circuit to earth/phase. |
|
Operating ambient: 0 – 45 °C at rated power (derate 2 %/K to 55 °C max); storage –40 – +70 °C; IP20; 220 × 170 × 85 mm, 5 kg. |
