Schneider BMXP341000 CPU module

Sales Manager: Miya zheng

E-mail: sales@amikon.cn

Phone: 86-18020776792 （whatsapp）

Manufacturer

Schneider Electric

Product Type

Central Processing Unit Module

Product Line

Modicon

Part Number

BMXP341000

EAN

3595863910698

Weight

0.50 lbs (0.23 kg)

Maximum Discrete I/O Capacity

512 points (single-rack configuration)

Maximum Analog I/O Capacity

128 points (multi-rack configuration)

Integrated Communication Interfaces

RS232C, RS485, USB, Modbus RTU/ASCII (non-isolated and isolated variants)

Supported Communication Modules

2 Ethernet, 2 AS-Interface

Internal Memory Allocation

2048 kB total (1792 kB program, 128 kB data, 128 kB constants/symbols)

Boolean Instruction Execution Speed

0.18 µs per operation

Task Management Capability

1 cyclic master task, 32 event-driven tasks

Operating Temperature Range

0°C to 80°C (ambient air)

Power Supply Requirements

24 V DC, 72 mA consumption

The BMXP341000 CPU module by Schneider Electric is integral for automation applications. It possesses a maximum capacity for 512 discrete I/O points when configured in a single rack. In a multi-rack setup, this module can handle up to 128 analog I/O points, guaranteeing flexibility in diverse configurations.

The unit includes essential communication interfaces, namely RS232C, RS485, USB, and Modbus RTU/ASCII, with options for both isolated and non-isolated setups. It is compatible with 2 Ethernet and 2 AS-Interface modules, further enhancing its capability to communicate across systems. For task management, the module can handle 1 cyclic master task alongside up to 32 event-driven tasks, offering substantial processing power.

With an internal memory area of 2048 kB—comprising 1792 kB for program instructions, 128 kB for data storage, and 128 kB for constants and symbols—this CPU is capable of effectively managing complex automation programs. It executes Boolean instructions with an impressive speed of 0.18 microseconds per operation.

In terms of environmental ratings, this module operates efficiently within a temperature range of 0°C to 80°C and is protected against dust and contact with an IP20 enclosure rating. Its power supply needs include 24 V DC with a low consumption of 72 mA, making it energy efficient. Furthermore, diagnostic indicators on the device provide real-time feedback on various statuses such as RUN, I/O faults, memory issues, and system faults. It supports an isolated bus segment length of up to 1000 meters using shielded twisted pairs, and it can handle 252 bytes per RTU frame and 504 bytes per ASCII frame, ensuring effective modulation of data protocols.

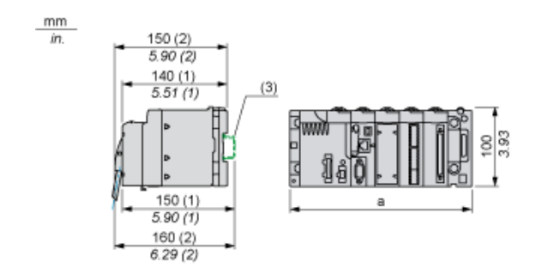

(1)With removable terminal block (cage, screw or spring).

(2)With FCN connector.

(3)On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.

Q1. What architectural advantages does the Schneider BMXP341000 deliver for Modicon M340 automation systems?
The Schneider BMXP341000 serves as a high-performance processor designed for the Modicon M340 platform. It provides deterministic execution, integrated communication capabilities, and scalable processing power, making it well suited for complex discrete and process automation applications.

Q2. How does the Schneider BMXP341000 optimize execution efficiency in time-critical control applications?
The Schneider BMXP341000 features a high-speed processing engine capable of executing control logic with minimal latency. Its optimized task management and memory architecture enable rapid response to I/O events while maintaining stable PLC performance.

Q3. Which communication interfaces and expansion capabilities make the Schneider BMXP341000 suitable for advanced industrial networks?
The Schneider BMXP341000 supports integrated industrial communication interfaces and accommodates additional communication modules, allowing seamless connectivity with distributed I/O, HMIs, SCADA systems, and enterprise-level automation networks.

Q4. Why is the Schneider BMXP341000 an effective choice for scalable manufacturing and process control environments?
The Schneider BMXP341000 supports modular system expansion, extensive I/O capacity, and flexible application development. These characteristics enable engineers to accommodate evolving production requirements without redesigning the entire control architecture.

Q5. What commissioning and maintenance practices should be followed to maximize the operational reliability of the Schneider BMXP341000?
Before deploying the Schneider BMXP341000, engineers should validate firmware compatibility, configure communication parameters, verify power supply integrity, confirm I/O addressing, and perform comprehensive diagnostic testing to ensure reliable long-term operation and simplified maintenance.
