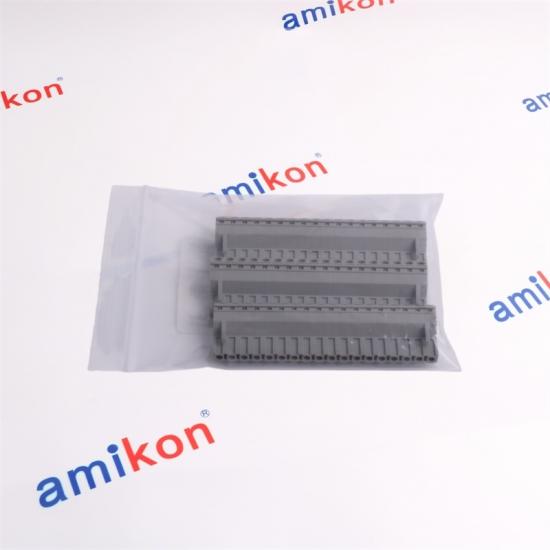

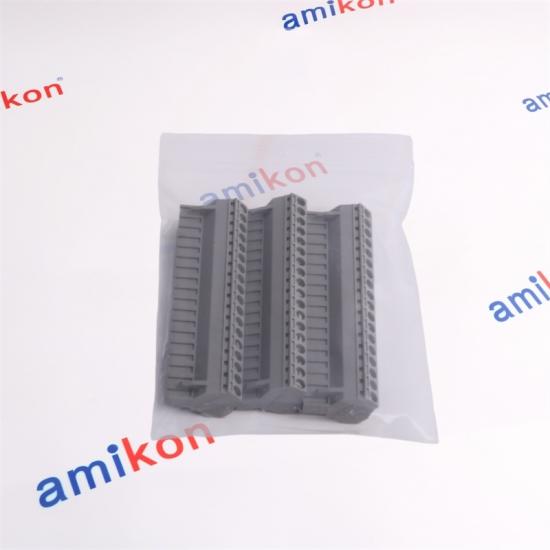

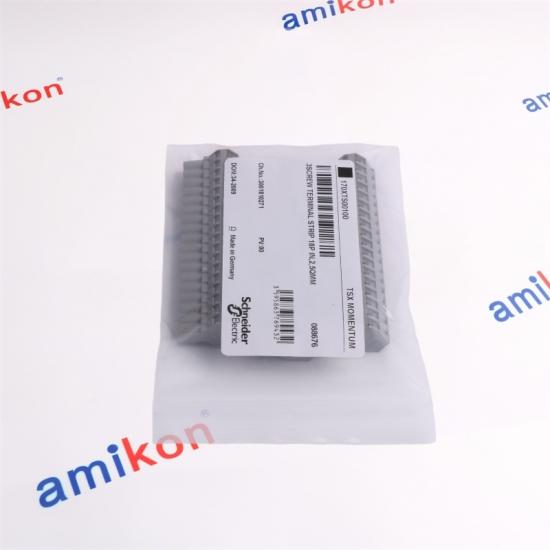

Schneider 170XTS00100 Terminal Block

Sales Manager: Miya zheng

E-mail: sales@amikon.cn

Phone: 86-18020776792 （whatsapp）

Manufacturer

Schneider Electric

Product Type

Terminal block

Product Line

Modicon

Part Number

170XTS00100

EAN

3389110886764

Weight

0.25 lbs (0.11 kg)

Termination Style

Screw clamp terminals

Kit Composition

3 connectors in one row

Compatibility

Modicon Momentum and Modicon Quantum Automation Platform

Wire Clamp Type

Threaded

Clamping Connection Capacity

1 x 2.5 square millimeter to 2 x 1.5 square millimeter

Ambient Operating Temperature

0 to 60°C (in a non-condensing environment)

Humidity Tolerance

95% relative humidity or less (without condensation)

General Application

This module facilitates the connection and integration of analog I/O and discrete I/O in an automation system

Storage Temperature

-40 to 85°C (in a non-condensing environment)

The Schneider Electric Modicon 170XTS00100 terminal block provides a robust solution for establishing reliable electrical connections in automation systems. Designed specifically for compatibility with the Modicon Momentum and Quantum automation platforms, this product enhances with its integration capabilities.

This terminal block is organized into a kit featuring three connectors situated in one row, allowing for efficient wiring. The design utilizes screw clamp terminals, which ensure a secure and stable connection for all types of wiring. It features threaded wire clamps that accommodate a range of cable sizes, specifically allowing the connection of wires sized from 1 x 2.5 square millimeters to 2 x 1.5 square millimeters.

When installed, the terminal block functions efficiently in ambient conditions ranging from 0 to 60 degrees Celsius in non-condensing environments. It is designed to withstand storage temperatures as low as -40 degrees Celsius up to 85 degrees Celsius, showcasing its durability even in extreme conditions. The product also tolerates up to 95% relative humidity, provided that condensation is absent, making it suitable for various operational contexts.

The primary application of this terminal block is to facilitate both analog input/output and discrete I/O connections within automation systems, simplifying and enhancing system integration.

Q1. What functional role does the Schneider 170XTS00100 play within a Modicon Momentum distributed I/O architecture?
The Schneider 170XTS00100 is designed to provide reliable terminal connectivity for Modicon Momentum I/O modules. It facilitates secure field wiring while supporting efficient signal transmission and simplifying installation and maintenance procedures.

Q2. How does the Schneider 170XTS00100 enhance wiring integrity and long-term operational reliability?
The Schneider 170XTS00100 features a robust terminal interface that helps ensure stable electrical connections, reduces the risk of loose wiring, and supports dependable signal continuity in demanding industrial environments.

Q3. Why should engineers select the Schneider 170XTS00100 for industrial control panel installations?
The Schneider 170XTS00100 offers a practical connection solution for distributed automation systems by enabling organized cable management, streamlined module replacement, and reliable integration with compatible Modicon Momentum components.

Q4. Which installation practices are recommended to maximize the performance of the Schneider 170XTS00100?
When installing the Schneider 170XTS00100, engineers should verify terminal assignments, apply the specified wire sizes and tightening torque, ensure proper grounding, and follow the manufacturer's wiring guidelines to maintain optimal electrical performance.

Q5. How does the Schneider 170XTS00100 contribute to reduced maintenance time in industrial automation systems?
The Schneider 170XTS00100 simplifies field wiring organization and module servicing, allowing technicians to perform inspections, replacements, and troubleshooting more efficiently while minimizing system downtime and preserving operational continuity.
