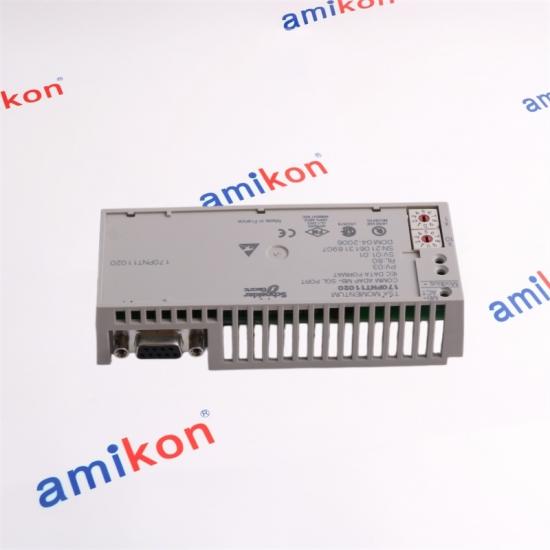

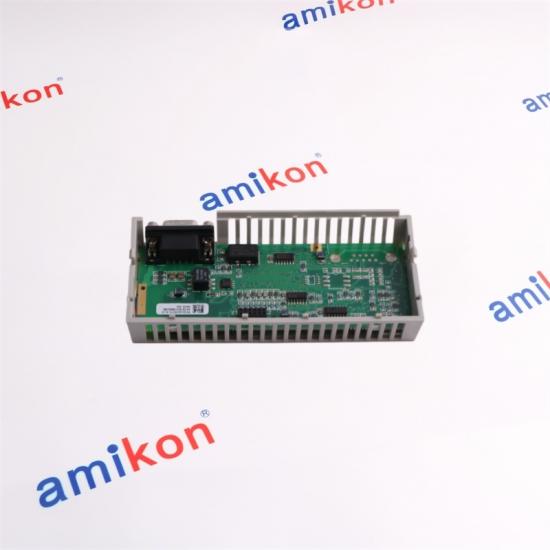

Schneider 170PNT11020 Communication Adapter

Sales Manager：Miya zheng

E-mail: sales@amikon.cn

Phone: 86-18020776792 （whatsapp）

The Schneider Electric 170PNT11020 is a robust communication adapter specifically developed for use within the Modicon Momentum series. It is designed to facilitate data transfer using a twisted pairs cable, ensuring efficient communication.

Operating on the Modbus Plus protocol, this device provides a baud rate of 1 megabit per second, enabling fast data exchange. The access method is based on a token bus and peer-to-peer (P2P) configuration, allowing flexible network topologies for various industrial applications.

This communication adapter can connect up to 31 devices per individual segment and supports a total of 64 devices across all segments, making it versatile for larger setups. The maximum cable length between devices can reach approximately 16,404 feet (5,000 meters) when using a repeater, supporting extensive installations.

The 170PNT11020 operates effectively in ambient temperatures ranging from 0 to 60°C. It also has a wide storage temperature range, functioning in conditions from -40 to 85°C. The unit maintains an IP20 protection class, indicating basic safeguards against dust and accidental contact.

Electrical connections are facilitated through two 9-pin D-Sub connectors, ensuring redundancy and facilitating integration into the Modbus Plus network. Additionally, this device complies with several safety standards, including UL, CSA, and CE, confirming its reliability in domestic and industrial applications. The recommended operating altitude is below 16,404 feet (5,000 meters). With a weight of just 0.44 pounds (0.2 kilograms), it is lightweight and manageable for installation and use.

Question :

What distinguishes the Schneider 170PNT11020 as a reliable communication interface for distributed I/O architectures?

Answer:

The Schneider 170PNT11020 is engineered to provide stable and efficient network communication between distributed I/O devices and automation controllers. Its robust communication capabilities enhance data exchange reliability and improve overall system responsiveness.

Question :

How does the Schneider 170PNT11020 enhance communication efficiency in complex industrial automation networks?

Answer:

The Schneider 170PNT11020 supports high-speed data transmission and deterministic communication, enabling seamless integration of remote I/O stations while minimizing network latency and ensuring consistent control performance.

Question :

Which industrial applications benefit most from integrating the Schneider 170PNT11020 into their control systems?

Answer:

The Schneider 170PNT11020 is ideally suited for manufacturing plants, process automation, water treatment facilities, power generation systems, and material handling applications that require dependable distributed I/O communication.

Question :

Why is the Schneider 170PNT11020 considered a practical solution for expanding or modernizing industrial automation systems?

Answer:

The Schneider 170PNT11020 simplifies system expansion by supporting scalable distributed architectures and reliable network connectivity. It allows engineers to increase system flexibility while maintaining stable operational performance.

Question :

What critical engineering factors should be verified before installing the Schneider 170PNT11020 in an industrial network?

Answer:

Before deploying the Schneider 170PNT11020, engineers should confirm network protocol compatibility, power supply requirements, communication topology, environmental conditions, and controller interoperability to ensure efficient commissioning and long-term system reliability.
