Schneider 170ADI35000 Input Module

We are: Amikon Automation Limited

We are the ideological leader of the world's automation manufacturing industry and are committed to promoting global industry exchanges.

No matter how complex your problem is, our experienced professional team will use the industry knowledge accumulated for many years to provide you with the most efficient solutions.

More than 20 Multilingual Services

Customers are located in 149 countries/regions.

Distribution Centers in the United Kingdom and the United States.

Professional contact channel

Overview

The Modicon 170ADI35000 input module from Schneider Electric is engineered for discrete input applications. It supports a wide input voltage range of 24 VDC across 32 channels, grouped into two sets of 16, providing reliable performance in various control systems.

Specifications

Descripution

The Schneider Electric part number 170ADI35000 is an input module specifically designed for discrete input applications within the Modicon series. This module provides 32 discrete input channels that accept a voltage level of 24 VDC. The inputs are organized into two separate groups of 16 channels each, making it suitable for structured input management in complex systems.

This input module operates using positive discrete input logic, ensuring clarity in signal interpretation. An important feature is the robust channel isolation rated at 500 V, enhancing system safety by preventing unintended voltages from affecting other circuits. Additionally, each input channel includes status LEDs for immediate visual feedback on operational status.

The protective coating treatment of the module signifies its durability in demanding environments. The marking under CE specifications indicates compliance with European standards. With an input resistance of 4 kΩ, the module is capable of delivering precise performance without excessive load on the circuits. Power consumption for this module is limited to 5.5 W, which contributes to overall system efficiency. This combination of features makes the 170ADI35000 a versatile choice for industrial input applications.

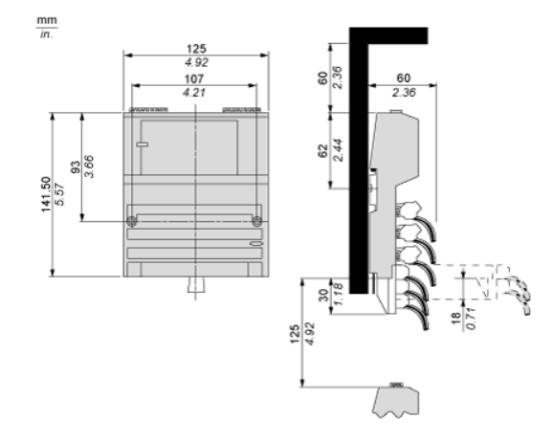

Dimensions Drawings

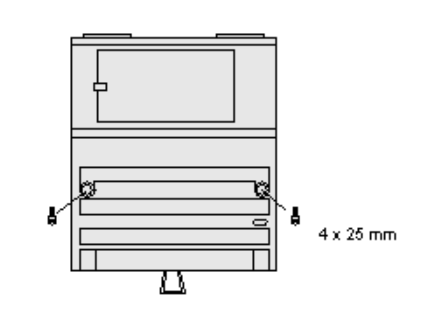

Mounting and Clearance

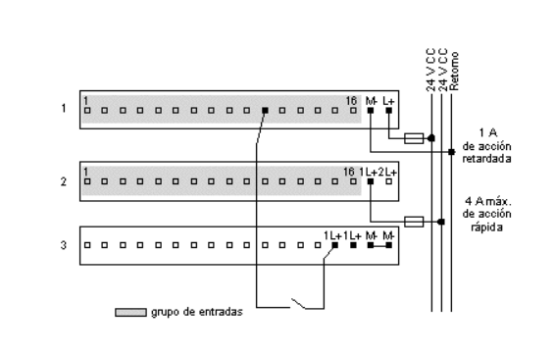

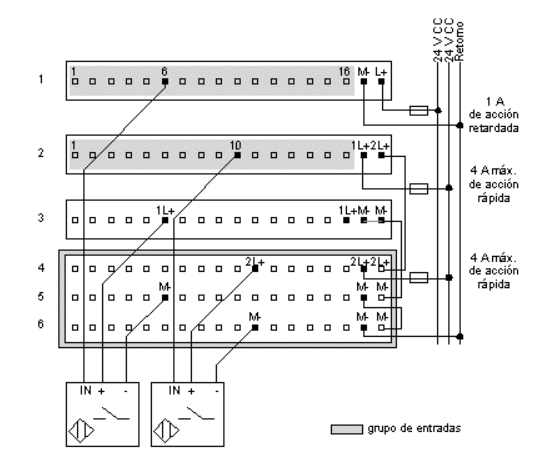

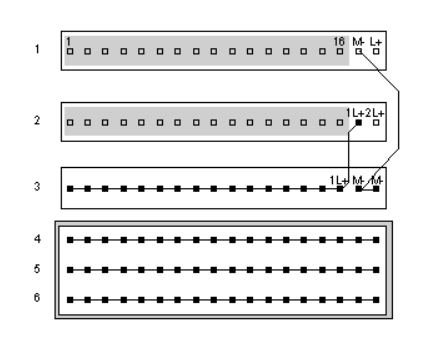

Connections and Schema - External Wiring Diagrams

Schneider 170ADI35000 FAQ

Q1. What makes the Schneider 170ADI35000 a dependable digital input module for distributed I/O systems?

The Schneider 170ADI35000 is engineered to acquire digital input signals from field devices with high reliability and accuracy. Its robust design enables consistent signal monitoring, making it an ideal choice for industrial automation systems that require dependable input processing.

Q2. How does the Schneider 170ADI35000 enhance signal acquisition and control performance in industrial applications?

The Schneider 170ADI35000 provides stable digital input processing, allowing controllers to accurately detect the operating status of sensors, switches, and other field devices. This helps improve process consistency and supports fast, reliable control decisions.

Q3. Which industrial environments are best suited for the Schneider 170ADI35000?

The Schneider 170ADI35000 is widely deployed in manufacturing plants, water and wastewater treatment facilities, power generation, chemical processing, material handling systems, and other industrial applications where dependable digital input monitoring is essential.

Q4. Why do automation engineers select the Schneider 170ADI35000 for control system upgrades and maintenance?

The Schneider 170ADI35000 offers reliable compatibility with Schneider distributed I/O platforms, making it a practical solution for replacing legacy modules, expanding existing automation systems, and maintaining long-term operational continuity while minimizing system downtime.

Q5. What technical aspects should be evaluated before installing the Schneider 170ADI35000 in an automation system?

Before integrating the Schneider 170ADI35000, engineers should verify the input voltage specifications, channel configuration, wiring requirements, controller compatibility, environmental operating conditions, and overall system architecture to ensure seamless installation and dependable long-term performance.
