◈Product Specification◈
Backplane current load:800 mA @ 5 V
Operating temperature:32 to 140°F (0°C to 60°C)
Storage temperature:-40°F to 185°F (-40°C to 85°C)
Shock:30g operational 50g non-operational
Vibration:5 g from 10150 Hz
Relative Humidity:5% to 95%, RH with no condensation
◈Functional Specifications◈
10/100 MB Ethernet Application port
Supports Enron version of Modbus protocol for floating-point data transactions
PCB includes a powerful Modbus network analyzer
Special functions (command control, event commands, status, etc.) are supported by message transfer (unscheduled) using the MSG instruction
Configurable parameters for the Client including a minimum response delay of 0 to 65535 ms and floating-point support
Supports ten independent server connections for Service Port 502
Supports ten independent server connections for Service Port 2000
All data mapping begins at Modbus register 40001
Error codes, network error counters, and port status data available in user data memory
◈Product Overview◈

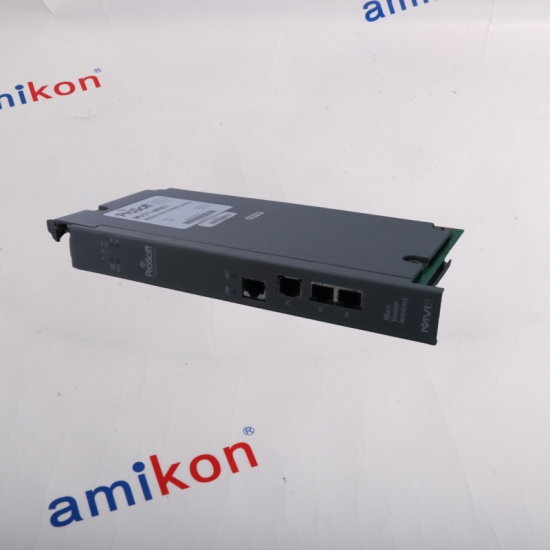

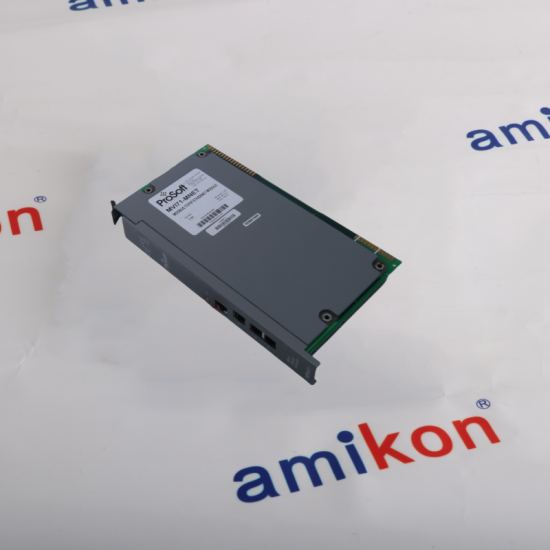

The MVI71-MNET Modbus TCP/IP Client/Server Communication Module allows Rockwell Automation PLC processors
to interface easily with other Modbus compatible devices. Compatible devices include Modicon Programmable Automation
Controllers (PACs), as well as a wide variety of instruments and devices. A 5000-word register space in the module exchanges
data between the processor and the Modbus TCP/IP network.
