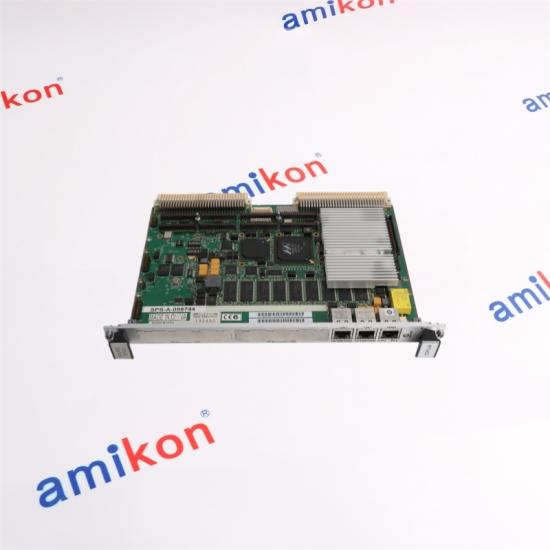

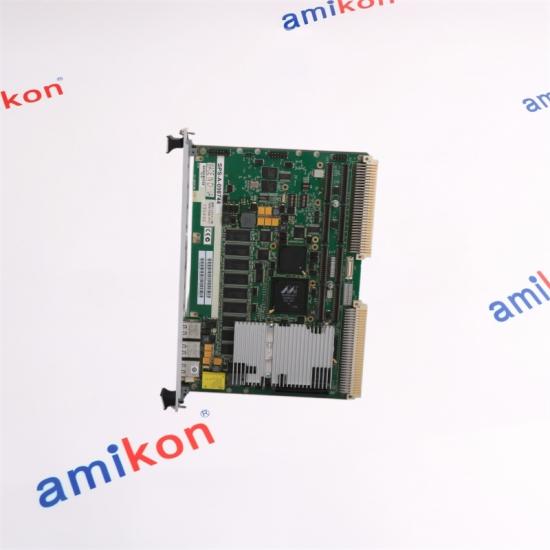

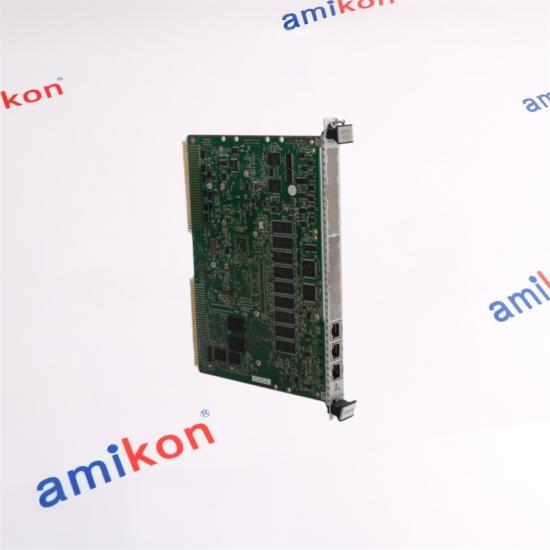

Motorola MVME6100-0161 VMEbus single-board computer

Motorola MVME6100-0161 VMEbus single-board computer

MVME6100-0161
POWERPC PLATFORM
01 / PROCESSOR
1.267 GHz
MPC7457 PowerPC
02 / MAIN MEMORY
512 MB
DDR memory
03 / FLASH
128 MB
On-board flash memory
AMIKON contact QR code

CONTACT OUR SALES TEAM
International Delivery on the Day Quick Response Support Intercontinental Cooperation Network





01 / VME PERFORMANCE CORE
MOTOROLA
MVME6100-0161
VME Single-Board Computer



02 / PRODUCT
Product Identification

MVME6100-0161
MOTOROLA
The MVME6100-0161 is a single-slot 6U VME computing platform built for high-throughput embedded control and signal-processing workloads. Its MPC7457 PowerPC processor, ECC-protected DDR memory, PCI-X expansion and 2eSST-capable VME interface form a direct upgrade path for installed VME systems that need substantially more processing and backplane bandwidth.

03 / ROLE
Functional Overview

  The processor and DDR memory sit on a 133 MHz processor path, while the MV64360 system controller links local resources to PCI-X. The Tsi148 bridge connects this PCI domain to the VME backplane. This arrangement supports local computation, PMC-based application I/O and high-speed VME exchanges without changing the installed 6U card-cage format.

04 / VERIFIED CONFIGURATION
Technical Specifications

Processor 1.267 GHz MPC7457 PowerPC with AltiVec
Installed memory 512 MB on-board DDR ECC
Flash storage 128 MB in two 64 MB banks
VME interface Tsi148; 2eSST transfers up to 320 MB/s
Network Two Gigabit Ethernet interfaces
Expansion Two PMC-X sites; 33/66/100 MHz
Form factor Single-slot 6U VME
Front hardware SCANBE ejector handles

05 / DATA PATH
System Architecture

PROCESSOR > MEMORY / SYSTEM BUS > I/O / NETWORK / BACKPLANE

06 / MATCH BEFORE REPLACEMENT
Compatibility & Related Models

MODEL KEY DIFFERENCE SELECTION GUIDANCE
MVME6100-0161 512 MB DDR ECC; SCANBE handles Exact model - preferred like-for-like replacement
MVME6100-0163 512 MB DDR ECC; IEEE handles Same core electronics; different extraction hardware
MVME6100-0171 1 GB DDR ECC; SCANBE handles Higher-memory member with matching handle style
MVME6100-0173 1 GB DDR ECC; IEEE handles Higher memory plus IEEE handle format

07 / SITE CHECK
Installation Considerations

01
Power down and observe ESD controls before insertion or removal.
02
Confirm the chassis supplies the required VME power rails and airflow.
03
Match handle type, board revision, PMC population and rear-I/O routing.
04
Record switch and jumper positions before replacing an installed board.
05
After installation, verify MOTLoad startup, memory test, Ethernet links and VME access.
Returns: Contact us within seven days if a concern appears after receipt. Keep the item in its original condition and provide the reason. Resolution is arranged after the returned item is received and checked; return shipping costs are the buyer's responsibility.

08 / GLOBAL SUPPORT
AMIKON Supply and Service


20 YEARS OF INDUSTRIAL AUTOMATION SUPPLY

INSPECTION AND ORDER VERIFICATION

URGENT SHIPPING COORDINATION
AMIKON supplies current and discontinued automation parts for customers who need dependable response, careful part matching and international delivery support. Send the complete model, revision, quantity and destination for a focused quotation.

09 / ENGINEERING CHECK
Engineering FAQ

01
MVME6100-0161: Can MVME6100-0161 directly replace an IEEE-handle version?
The processor and memory may match, but the front extraction hardware differs. Confirm chassis mechanics before substitution.
02
MVME6100-0161: Does MVME6100-0161 include 1 GB memory?
No. The -0161 ordering code carries 512 MB DDR ECC. The -0171 is the 1 GB SCANBE-handle member.
03
MVME6100-0161: What should be matched before moving existing PMC cards?
Confirm PMC voltage keying, bus speed, I/O routing, firmware expectations and the original interrupt/resource assignment.
04
MVME6100-0161: Can the board be installed in any legacy VME cage?
Only after verifying power, cooling, backplane signaling, slot mechanics and software support. Physical fit alone is not sufficient.
05
MVME6100-0161: What should be tested after replacement?
Run startup diagnostics, memory checks, both Ethernet links, application PMC tests and VME communication with peer boards.

10 / ADDITIONAL STOCK
Recommended Models

TG111-HP3NZRL TXA1.IBE MVME51105E-2263 MRI-M500S 330881-28-00-265-00-02
1SBL141001R8110 TLS1CARD CS4303T01 3HAC022286-001 KJ1501X1-BC2
074-02-005 VS7-6-FG-D-3N 5441-693 1305-AA04A NBG-12LX
KC4021X1-BC1 FM19856 3RT2016-1AB01 ATG-50120-SN 571-200-20
70-575-07 PLX32-EIP-MBTCP S0612LSER2 20F1ANC170JA0NNNNN TLRP-3062L
CC4620-2X 80190-560-02-R IC200ALG320 BGS-DL10CN SC1-1/2T1.000B
3RP2525-1BW30 140CRP93100 3RU2116-1GB0 QAM2120.040 T18-301
1769-OF4 WL160-F330 6022771 KL3003X1-LS1 3RG4021-0GB33-PF A3C40173228
RX50 VCP9000 C98043-A7111-L2 H3DE-S1 IC695PBM300-EC VF20-1B54
KJ4003X1-BE1 EVM50L0316MC SR2E201BD CXS-A1000-10 F01U033343
3HAC14757-1 8C-TCNTA1 ST201M-K2 2093-AM03 67000-0-160
TTEL25.4-2T17 871FM-D2CP11-E2 6ES7410-5HN08-0AB0 EI1808NPOS IC200CHS022L
Model availability changes. Send the exact designation and quantity for confirmation.

11 / CONTACT
Price, Availability and Delivery

SALES MANAGER
Miya zheng
EMAIL
sales@amikon.cn
WHATSAPP
86-18020776792
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
