Product Details

Honeywell

HONEYWELL · SYSTEM HARDWARE

FS-CPCHAS-0003

Safety Manager Control Processor Chassis

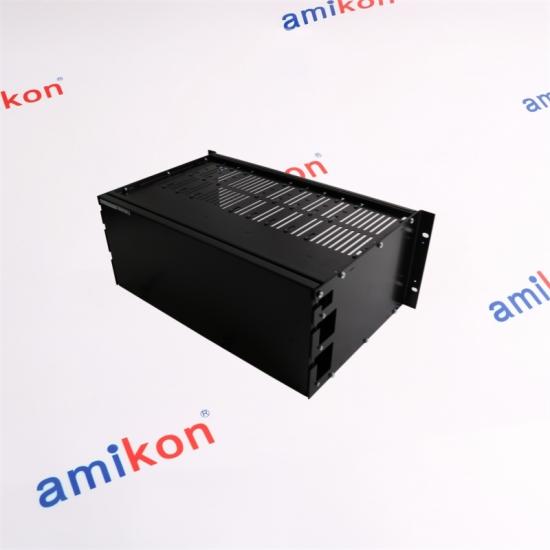

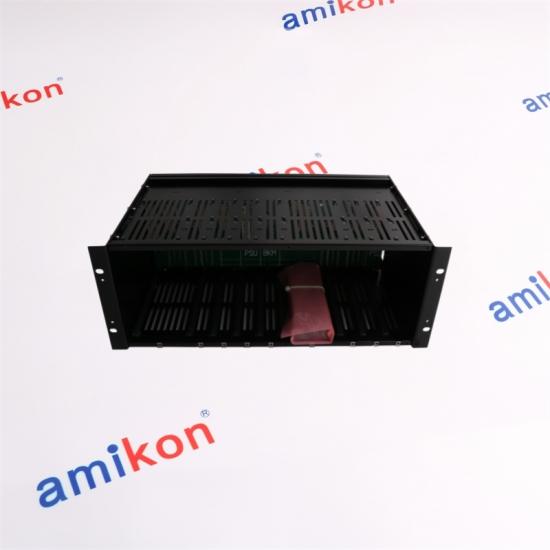

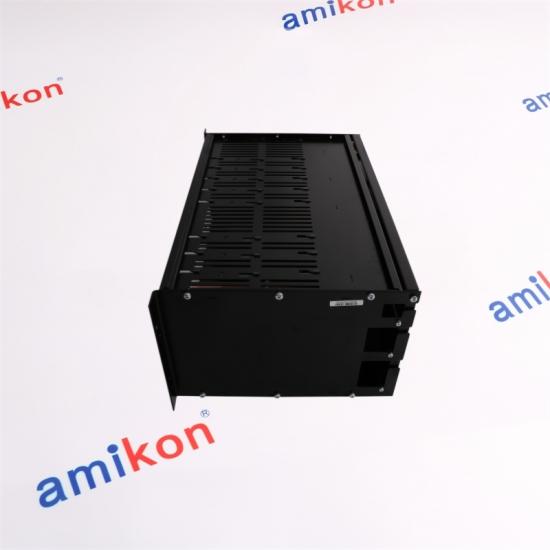

A 19-inch Safety Manager chassis that houses the complete Control Processor assembly in non-redundant or redundant configurations. Its backplane and cable-management layout organize processor, supply, watchdog and communication connections.

PURCHASING CHECKPOINT

MODEL · CODE · REVISION · INSTALLED ROLE

Confirm the complete hardware identity before replacement.

REQUEST PRICE & AVAILABILITY

Email: sales@amikon.cn

WhatsApp: 86-18020776792

Sales manager: Miya zheng

02 / HONEYWELL PRODUCT DETAILS

Technical Specifications

Product role	Chassis for Control Processor
System family	Honeywell Safety Manager
Backplane	FS-CPB-0003, part number 51156761-126
Rack format	19-inch industrial chassis
Height	4 HE / 177 mm
Width	482.6 mm
Depth	280 mm
Controller arrangement	Non-redundant or redundant
Redundant arrangement	Processor modules doubled except shared battery/key-switch module
Rear cable bars	24 V supply/signal; communication; 5 V/watchdog

03 / HONEYWELL PRODUCT DETAILS

Functional Role & System Integration

The chassis provides the mechanical housing, processor backplane and routed connection area for the Safety Manager Control Processor. In a redundant controller, both processor sides occupy defined positions while the battery and key-switch module is shared.

Installation focus
Confirm controller redundancy and every installed processor-module position.
• Map the three rear cable groups before disconnecting the chassis.

BRAND MESSAGE · GLOBAL SUPPLY

20 Years of Industrial Automation Supply

Responsive support for scarce automation parts, urgent dispatch and international delivery coordination.

DISCUSS YOUR REQUIREMENT

Email: sales@amikon.cn

WhatsApp: 86-18020776792

Sales manager: Miya zheng

05 / HONEYWELL PRODUCT DETAILS

Related Models & Selection Guide

MODEL	RELATIONSHIP	SELECTION POINT
FS-CPCHAS-0003	Current model	Control Processor chassis
FS-CPB-0003	Integrated backplane	Part of FS-CPCHAS-0003
FS-CPCHAS-0001	Earlier chassis	Replacement planning requires wiring review
FC-IOCHAS-0003R	Related I/O chassis	Redundant I/O arrangement
FC-IOCHAS-0003S	Related I/O chassis	Non-redundant I/O arrangement

1	Confirm controller redundancy and every installed processor-module position.
2	Map the three rear cable groups before disconnecting the chassis.
3	Check whether the installation uses earlier chassis power-distribution wiring.
4	Preserve grounding, cabinet clearances and cable bend radius.

06 / HONEYWELL PRODUCT DETAILS

Frequently Asked Questions

01	Is FS-CPCHAS-0003 a processor module? No. It is the housing and backplane assembly that contains the Control Processor modules.

02	Can FS-CPCHAS-0003 support redundant processors? Yes. The chassis has defined positions for a redundant pair; the battery and key-switch module is shared.

03	What should be checked when replacing FS-CPCHAS-0001? Confirm the complete processor population, power-distribution arrangement, I/O chassis connection and cabinet wiring.

04	Which backplane belongs to FS-CPCHAS-0003? FS-CPB-0003, part number 51156761-126, is the associated processor backplane.

05	How should rear cables be routed in FS-CPCHAS-0003? Use the upper bar for 24 V supply and signal cables, the middle bar for communication cables, and the lower bar for 5 V and watchdog cables.

07 / HONEYWELL PRODUCT DETAILS

Final Inquiry CTA

Ready to confirm price and availability?
Send the complete model, order code, visible revision, quantity, condition requirement and delivery destination.

CONTACT MIYA ZHENG

Email: sales@amikon.cn

WhatsApp: 86-18020776792

Sales manager: Miya zheng

08 / HONEYWELL PRODUCT DETAILS

Recommended Models

MC-TDIY22 51204160-175	KL2001X1-BD1	IC5002TBW0000	3HAC033209-001	PR6423/13R-030 CON021
Tricon 4351	6GK7542-1AX10-0XE0	25B-D030N104	3HAC033207-001	IC655MDL511
IC655MDL512	5430-933	6GK1162-3AA00	5441-693	KC4011X1-BC1 12P6745X012
KJ3241X1-EA1	8440-2082	1394C-SJT10-A	KC4011X1-BE1 12P6771X032	MC-TDID52 51304441-275
IC698CHS009	KJ3002X1-BG2 12P1731X062	X-DI 32 01	X-DI 32 02	1336F-BRF10-AA-EN
X-DO 32 01	PLX51-PBM	F6214	F6217	6ES7590-1AF30-0AA0
F6220	F6221	CC-SDOR01 51308380-175	Tricon 4119A	2198-C4020-ERS
IC698ACC701	KJ3002X1-BA1 12P06801X122	IC754VBL06CTD	X-DO 32 51	6ES7232-4HD32-0XB0
PLX32-EIP-MBTCP-UA	6ES7515-2AM01-0AB0	CC-TDIL11 51308388-175	1394-SJT22-C	2098-DSD-HV220
KC4011X1-BD1 12P6758X022	IC754CSF06CTD	6ES7954-8LL02-0AA0	PLX82-EIP-61850	IC698PSD300
PR6423/10R-040 CON021	CC-TAOX11 51308353-175	MVI56-PDPMV1	1394C-SJT05-A	PR9268/302-000
25B-D4P0N104	3HAC021800-003	5X00300G02	Tricon 4329	8200-188

09 / HONEYWELL PRODUCT DETAILS

Ordering Information

Send the exact product identity, revision, quantity, required condition and destination for an exact-match quotation.

Returns and replacement: Contact us within seven days of receipt if an issue is found. Approved items must remain in their original condition and include a clear reason. Return or replacement follows inspection; shipping costs remain the buyer's responsibility.
