HIMA k9203

Overview

The K9203 rack fan is a circulation fan equipped with the following components: ·

l 3 axial fans ·

l Redundant supply ·

l Fan operation monitoring ·

l Voltage monitoring

The HIMA K9203 is a 19-inch rack-mounted circulation fan module designed for forced ventilation and thermal management in critical industrial control cabinets and Safety Instrumented Systems (SIS). It ensures electronic components remain cool in harsh environments.

Application

Forced ventilation of 19'' rack installations. Air is sucked in below the circulation fan and is blown out from the top. The axial fans are positioned to align with HIMA 19'' subracks.

FAQ

Q1. How does the HIMA K9203 Rack Fan optimize thermal management within HIMA safety system cabinets?
A: The HIMA K9203 Rack Fan is designed to provide continuous airflow across rack-mounted safety modules, effectively dissipating heat and maintaining stable operating temperatures. This helps improve system reliability and extends the service life of critical control components.

Q2. Why is the HIMA K9203 Rack Fan considered essential for maintaining the operational integrity of HIMA control racks?
A: The HIMA K9203 Rack Fan prevents excessive heat accumulation inside the rack, reducing the risk of thermal stress, performance degradation, and unexpected equipment failures. Its efficient cooling capability supports the continuous operation of safety-critical automation systems.

Q3. What installation factors should engineers evaluate when integrating the HIMA K9203 Rack Fan into a safety system?
A: When installing the HIMA K9203 Rack Fan, engineers should ensure proper rack compatibility, unobstructed airflow, secure mounting, and a stable power supply. Regular inspection and cleaning of the fan assembly also help maintain optimal cooling efficiency.

Q4. Which design attributes enable the HIMA K9203 Rack Fan to perform reliably in demanding industrial environments?
A: The HIMA K9203 Rack Fan features an industrial-grade construction engineered for continuous operation. Its dependable airflow performance and durable mechanical design make it well suited for control cabinets operating in harsh process industries where equipment reliability is critical.

Q5. In what industrial applications does the HIMA K9203 Rack Fan provide the greatest operational benefit?
A: The HIMA K9203 Rack Fan is widely used in safety instrumented systems across industries such as oil and gas, chemical processing, petrochemical plants, power generation, and other mission-critical facilities. By maintaining effective cabinet cooling, it helps ensure stable operation and enhances the overall availability of HIMA automation systems.

Related introduction

The HIMA PES

The HIMA PES consists of the H41q and H51q system families. Both system families are based on the same hardware and software, and they are the third generation of the field-proven HIMA PES to control preferably process engineering plants. PCs (PADT)* are used for programming, configuration, data logging, operation and trend recording.

Digital and analog inputs can be processed. Some input modules are designed for intrinsically safe circuits as well as for electric position sensors (proximity switches) according to DIN EN 60947-5-6. Digital and analog outputs are also available.

The HIMA PES are installed in 19-inches subracks. The H41q system family is a compact system consisting of one subrack, holding all components such as central unit, interface extensions, communication modules, power supplies, fusing and power distribution, as well as input/ output modules.

The H51q system has a modular structure. A central rack contains the central unit(s), interface exten-sions, communication modules, monitoring and power supplies, and it can have up to 16 associated input/output subracks.

Concept of the HIMA PES

The HIMA PES of the H41q and H51q system families consist of 19 inches subracks for central devices 5 HU and modules for binary and analog input/output signals which are assembled in H51q systems within 19 inches subracks, 4 HU.

The HIMA PES use PCs (PADTs) with the tool ELOP II for programming, configuration, monitoring, operation and documentation. The entry of the user program and the compilation into the machine code is made only on the PC without connected PES. To load, test and to monitor the PES the PC is connected via a serial interface RS 485 or a bus system to the PES.

Designs and Types of the PES

The controls can be adapted to the requirements of the plant by equipping them with the appropriate central modules. The following structures are possible with the H41q or H51q system family:

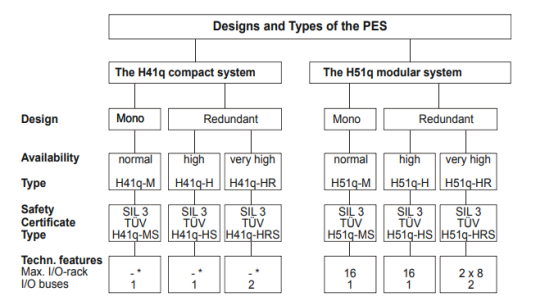

Figure 1: Designs and Types of the PES

* Central modules, communication modules and I/O modules are installed in the system subrack.

Notes:

Mono = single channel system structure Redundant = redundant central modules and/or separated I/O bus system structure SIL = Safety Integrity Level according to IEC 61508 I/O = input and output
