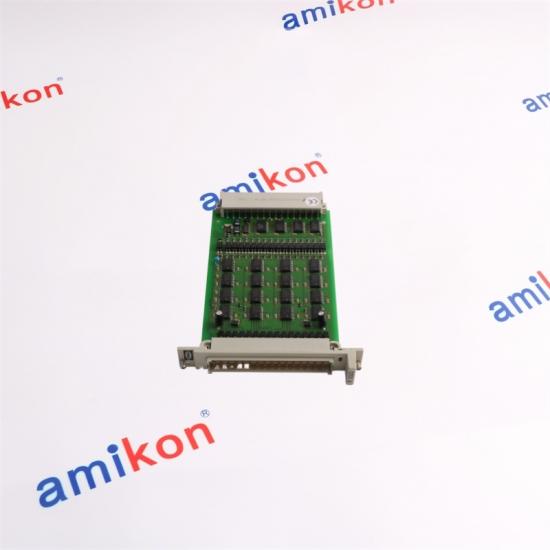

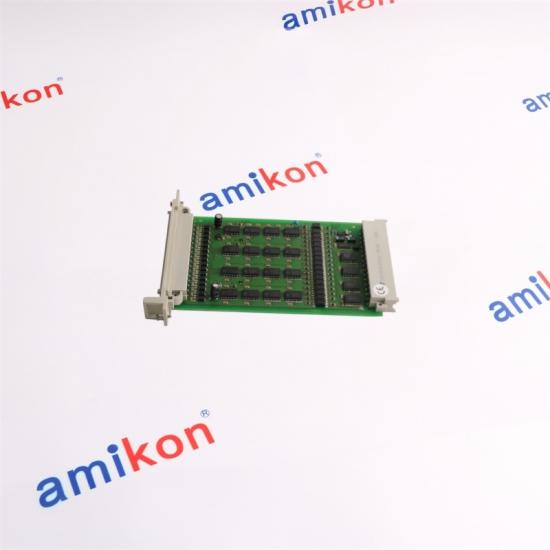

HIMA
F3325
Ex(i) transmitter supply
|
SAFETY SYSTEM I/O
F3325 • SIX-CHANNEL SUPPLY
The F3325 is a six-channel transmitter supply module designed for intrinsically safe (Ex)i transmitter applications within the HIMA system architecture. Its defined electrical characteristics make it suitable for installations where transmitter power and system compatibility must be checked together.
|
KEY PARAMETERS
CHANNELS
6 channels TRANSMITTER SUPPLY
≤ 22 V / ≤ 60 mA SPACE REQUIREMENT
4 SU |
|
Where F3325 Fits
F3325 belongs to the I/O architecture used with HIMA safety systems such as the H41q and H51q families. In the system configuration, it serves as the transmitter supply interface for intrinsically safe field devices. The module provides six supply channels. The transmitter supply is specified as up to 22 V and 60 mA per the system data. For the safety-related arrangement described for F3325, the transmitter signal path is associated with the F6221 analogue input module. This makes F3325 particularly relevant when replacing an existing module while preserving the intended field-device interface and rack architecture. |
Configuration Focus
|
|
F3325
6-channel Ex(i) transmitter supply
|
→ |
F6221
8-channel safety-related analogue input with (Ex)i capability
|
→ |
H41q / H51q
System family architecture supporting the module combination
|
|
PURCHASING SUPPORT
F3325 QUOTATION
For a quotation, please provide the following five details so the requested configuration and delivery requirements can be checked efficiently.
|
|||||||
| ◷ Delivery 3–5 Days |
✓ Warranty 12 Months |
◇ Packaging Brand New |
↗ Delivery Way E-packing / FedEx / EMS / TNT / DHL / UPS |
$ Payment T/T |
|
Q1. Is F3325 the correct choice when six Ex(i) transmitter supply channels are required?
Yes. F3325 is specified as a six-channel supply module for intrinsically safe transmitter applications. Its transmitter supply specification is up to 22 V and 60 mA.
|
Q2. What should be checked before replacing an installed F3325?
Check the existing HIMA system family, rack position, field wiring, transmitter requirements, and the associated input architecture. For the safety-related arrangement, F6221 is the relevant analogue input partner.
|
|
Q3. Does F3325 require special attention to rack space during replacement?
Yes. The module requires 4 SU of rack space. Replacement planning should therefore preserve the required module position and available rack width rather than treating it as a physically interchangeable part without system checks.
|
Q4. Can F3325 be evaluated separately from the analogue input module in a safety-related replacement?
The electrical interface should be evaluated as part of the complete channel arrangement. F3325 provides the transmitter supply, while the F6221 architecture handles the corresponding analogue input function, so both sides should be checked against the existing configuration.
|
|
Q5. Why is the F3325 supply rating important when selecting a replacement transmitter interface?
Because the connected transmitter must remain within the defined supply capability. F3325 is specified for an Ex(i) transmitter supply of up to 22 V and 60 mA, so the field-device requirements should be checked before ordering a replacement.
|
|
 |
