✦F3238 |
|
8 DI channels, each 24 VDC, 7 mA, configurable sink or source SIL3 / IEC 61508 certified, TÜV approved for high-integrity loops Response & filter time: 1 – 20 ms, set per channel to stop bounce or noise trips Dual-channel cross-check on each input; HFT = 1, DC > 90 % Redundant back-plane bus link to F30/F33 CPUs; no extra wiring Powered from the rack: 5 V 120 mA & 24 V 200 mA, < 1 W total -20 °C … +60 °C operating, IP 20 housing, hot-swap allowed Clear green LEDs for every input plus fault LED—quick visual check during walk-downs |

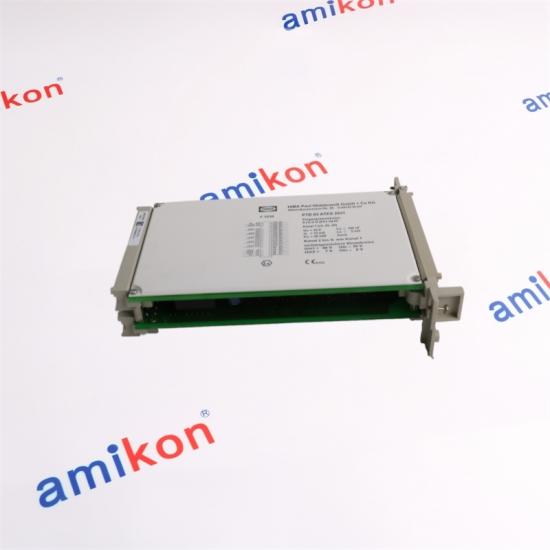

Model F3238 is the HIMA HIMatrix fail-safe 24 VDC input slice that drops straight onto any SIL3 HIMatrix rack. Each of its eight channels is individually configurable as sink or source, hardware cross-checked and filtered from 1 ms to 20 ms, so you can land field contacts or proximity switches directly—no interposing relays, no extra marshalling. Dual internal comparators give 1oo2D architecture inside the slice, keeping diagnostic coverage above 90 % and maintaining SIL3 even in single-channel mode. Power, addressing and the safety bus all come from the back-plane, so adding eight new safety inputs is literally a ten-second click-in job. Wide -20 °C … +60 °C rating, hot-swap capability and bright channel LEDs make F3238 the fastest way to expand a safety system without touching the wiring drawings.
|
✦Contact info |
|
E-mail: sales@amikon.cn Whatsapp: +86 18020776792
|
|
✦Our Service |
|
1.We will provide you the product info and picuture 2.Large stock, fast delivery 3.Competitive prices and immdiate quotation 4.Professional service,professional technical support 5.Warranty time is one year. 6.Strict test machine before shipment. |
|
✦FAQ |
|
Q: When will you ship the goods after I make the payment? A: Usually, our warehouse arranges shipment within 3-5 working days. Q If I buy some different products in your store, can you send them all at once? A: Yes, we will send all the projects immediately. Q: What is your packaging? A: 5-layer corrugated superhard, export specific cardboard box. Q: What return and refund services do we offer? A: We offer different warranties for different products It you receive any defective goods from us pls notify us within 7days. Returned items must remain in their original condition in order to be eligible for a refund or replacement We cannot replace it due to human damage. |
|
HONEYWELL |
AB |
|
CC-PDOB01 51405043-175 |
2711P-RN15S |
|
MC-TAIH02 51304453-150 |
2711P-RP8A |
|
MC-TAMR03 51309218-175 |
2711-B5A16 |
|
MC-TAMT03 51309223-175 |
2711-B6C15 |
|
MC-TAOY22 51204172-175 |
2711-B6C3L1 |
|
MC-TDID12 51304441-175 |
2711-B6C9 |
|
MC-TDIY22 51204160-175 |
2711-K5A10 |
|
MC-TPIX12 51304084-175 |
2711-K5A16L1 |
|
MC-TSIM12 51303932-476 |
2711-K5A3L1 |
|
MC-PAOY22 80363969-150 |
2711-K6C8 |
|
CC-TCNT01 51308307-175 |
2711-K6C9L1 |
|
MC-TAMT04 51305890-175 |
2711P-B6M20D |
|
FC-SDO-0824 V1.3 |
2711P-K4M20A |
|
TSAI-1620M FC-TSAI-1620M |
2711P-K4M20D |
|
MC-TAMR04 51305907-175 |
2711P-K6C20A |
|
TC-FPDXX2 |
2711P-K6C5D |
