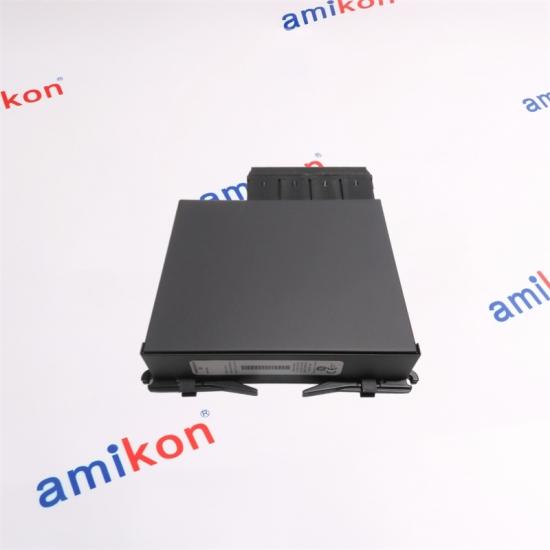

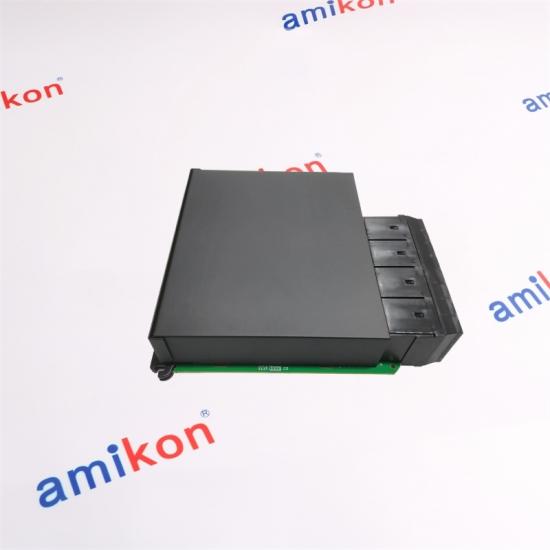

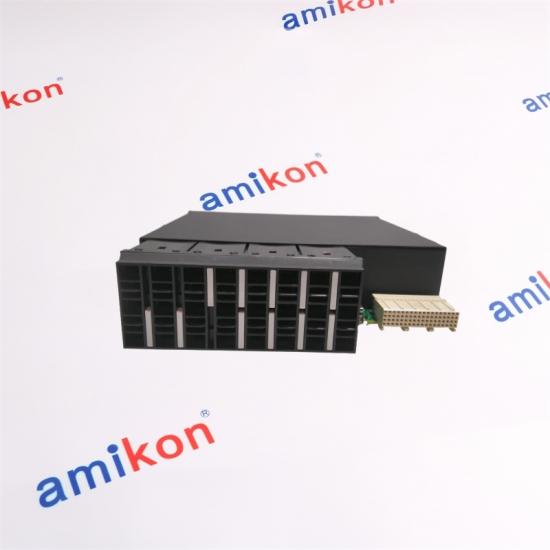

GENERAL ELECTRIC UR5CH I/O MODULE

GENERAL ELECTRIC UR5CH I/O MODULE

Feature

5-Channel CT/VT Inputs: accepts 1 A / 5 A CT and 67-300 V VT, ±0.2 % accuracy, 256 samples/cycle—ideal for metering, differential or ground-fault schemes.
Slide-In “5C” Form Factor: hot-swap 160 × 100 × 25 mm card, auto-detected <5 s; no jumpers, halves commissioning time versus legacy 5A cards.
Wide Temp & Isolation: –40…+70 °C, 2 kV channel-to-ground, 1 kV ch-ch; conformal-coated PCB survives offshore rigs & desert solar plants.
Plug-and-Play with UR Racks: drops into any UR 6U chassis (UR6, UR8, UR9); firmware auto-recognises scaling—no re-calibration needed.
Global Certs: CE, UL, ATEX II 3 G Ex nA IIC T4 Gc, ABS Marine, SIL 2 suitable; 12-month warranty, worldwide spare-part support.

Application

Generator ground-fault & metering: 5 CT cores measure neutral, earthing-resistor and stator currents; 50G/51G element trips field breaker on earth fault.
Transformer restricted earth-fault: high-impedance REF scheme uses 5 CT inputs, detects 5 % winding fault within 15 ms, prevents core damage.
Feeder metering & over-current: plugs into UR relay to provide kW, kVAR, PF and 50/51 protection on 6.6 kV motor feeders.
Capacitor-bank unbalance: star-point CT input detects internal unit failures, prevents tank rupture in large utility banks.
Retrofit of obsolete 5C cards in UR-1H/UR-6H racks: identical slot & wiring footprint allows 15 % higher accuracy upgrade without new chassis—ideal for 20-year-old turbine control rooms upgrading to SIL-rated standards.
