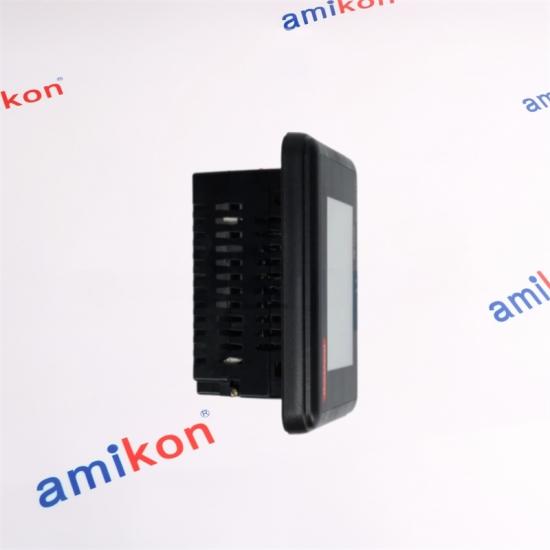

6-INCH OPERATOR INTERFACE
IC754CSF06CTD
QuickPanel View/Control configuration with a color TFT display, resistive touchscreen and multiple industrial communication interfaces.
|
|
CORE PLATFORM
|
|
CPU
Intel XScale PXA255
|
Clock
300 MHz
|
|
Flash
32 / 64 MB
|
DRAM
32 MB
|
|
SRAM
512 KB
|
Operating System
Windows CE.NET
|
Industrial Operator Interface
Designed for networked or stand-alone factory-floor HMI and control applications.
|
|
|
◉
Color Visualization
65,536-color TFT display with 320 × 240 resolution.
|
⌁
Touch Operation
12-bit resistive touchscreen with calibrated X/Y touch cells.
|
↔
Industrial Connectivity
Ethernet, serial communication and USB connectivity.
|
▣
Expandable Platform
Compact Flash and fieldbus expansion provisions are available.
|
|
|
Technical Profile
IC754CSF06CTD Specifications
|
|
Display
Type
Color TFT
Size
5.75 in / 14.6 cm
Resolution
320 × 240
Colors
65,536
|
Touch & CPU
Touch Type
Resistive, 12-bit
Processor
Intel XScale PXA255
Clock Speed
300 MHz
|
Memory
FLASH
32 MB or 64 MB
DRAM
32 MB
SRAM
512 KB, battery-backed
Boot ROM
512 KB
|
Communication
Ethernet
IEEE 802.3, 10/100BaseT
COM1
EIA232C / EIA485
COM2
EIA232C
USB
2 × USB 1.1
|
|
|
Factory-Floor Role
Where IC754CSF06CTD Fits
The QuickPanel View/Control platform is designed for factory-floor HMI and control use. It can operate as an HMI or as a combination of HMI and controller for local and distributed control applications. It can also operate in networked or stand-alone installations.
Typical Search Situation
A replacement search may begin when the existing operator terminal has a blank display, touch input problems, communication loss, or a startup issue.
|
Downtime Consideration
A failed operator terminal can interrupt local monitoring, operator input and machine interaction, making a compatible replacement important for restoration work.
|
|
Power & Environment
| DC Supply |
24 VDC / 24 W |
| Operating Temperature |
-10°C to 60°C |
| Storage Temperature |
-20°C to 70°C |
| Ethernet |
10/100BaseT |
| Vibration |
IEC 68-2-6 |
|
|
|
Connection Architecture
Interfaces Built Around the Operator Panel
|
|
01
Ethernet
IEEE 802.3 Ethernet with 10/100BaseT operation, RJ45 connection and two status LEDs. The maximum cable length specified is 30 m.
|
02
Serial Communication

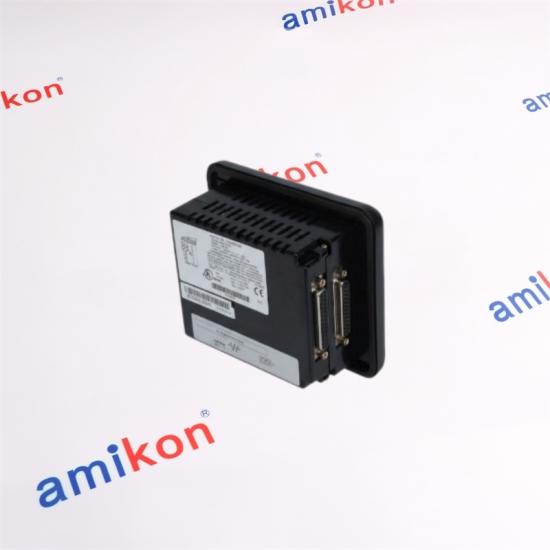

COM1 provides EIA232C/EIA485 through a DP25S female connector. COM2 provides EIA232C through a DP9P male connector. Both serial interfaces support 300 to 115200 bps.
|
03
Expansion
The platform provides one Type 2 Compact Flash slot, one fieldbus slot and two USB 1.1-compatible ports. An expansion memory slot supports up to 64 MB DRAM.
|
|
|
MOUNTING
Panel Installation
|
Panel Cutout
123.5 mm height × 156 mm width
Cutout Depth
70 mm
Panel Thickness
1.6 mm to 5 mm
Mounting Hardware
Four mounting brackets |
|
|
ENVIRONMENT
Industrial Conditions
|
Operational Shock
15 g, 11 ms sine wave
Operational Vibration
10–57 Hz: 0.012" peak-to-peak displacement
57–500 Hz: 1.0 g acceleration
Enclosure Qualification
NEMA 4, 4X and 12 when installed in a comparably rated panel |
|
|
|
Buyer Questions
IC754CSF06CTD FAQ
Five practical questions for replacement, configuration and operation.
|
|
01
|
Which QuickPanel configuration is the closest match when replacing IC754CSF06CTD?
The closest match must be checked against the installed unit's display type, touchscreen configuration, communication ports, memory configuration and application requirements. The IC754CSF06CTD is a 6-inch class color configuration with a 5.75-inch TFT display, 12-bit resistive touch and Ethernet/serial interfaces.
|
|
02
|
What advantage does the 512 KB battery-backed SRAM provide during a power interruption?
The SRAM is battery-backed and intended for retained data storage. The platform also uses non-volatile FLASH memory for operating system and persistent application storage.
|
|
03
|
Can the serial configuration be changed without checking the existing controller connection?
No. COM1 supports EIA232C/EIA485 while COM2 supports EIA232C. Before replacement, verify the existing controller interface, connector type, baud rate and communication arrangement to avoid an incompatible connection.
|
|
04
|
What should be checked before replacing a failed IC754CSF06CTD in an operating machine?
Confirm the exact part number, installed application, panel cutout, power arrangement, Ethernet or serial connections, touch calibration requirements and memory configuration. A replacement should be treated as a system-level compatibility check, not only a display replacement.
|
|
05
|
Which conditions can indicate that the operator terminal itself should be investigated first?
A blank display should first prompt a check of the power connections. The platform also indicates an amber left LED when the backlight fails. Communication faults should be investigated together with Ethernet or serial connections.
|
|
|
|
