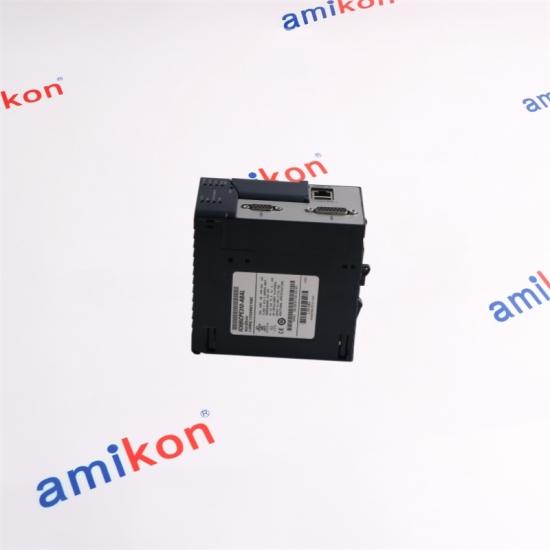

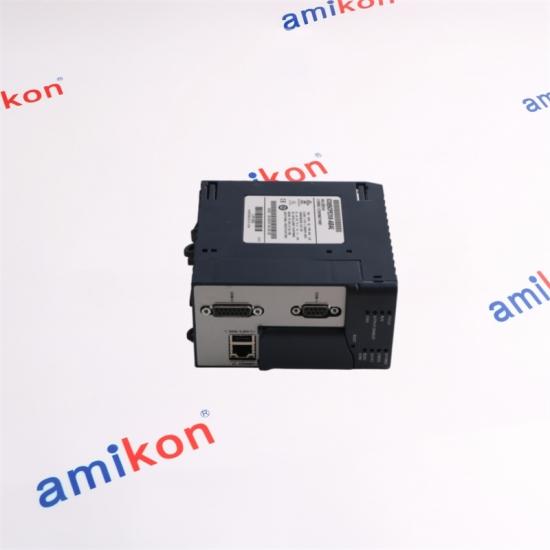

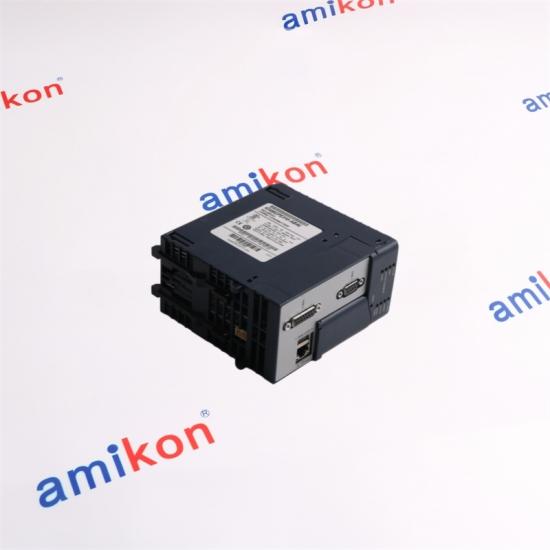

CPE310 CPU · 10 MB User Memory · 1.1 GHz Processor
A PACSystems RX3i controller positioned between compact and high-capacity CPUs, combining 10 MB user memory, fast logic execution, dual serial communication and embedded Ethernet. It is particularly useful when an RX3i project needs more memory and communication capability than a smaller CPU while avoiding the larger CPE330 memory class.
PROCESSOR
1.1 GHz
CPU processing class
USER MEMORY
10 MB
SRAM / Flash architecture
SERIAL
RS-232 + RS-485
Dual serial interfaces
I/O MEMORY
32K / 32K
Discrete / analog capacity
LOCAL RACKS
Up to 8
RX3i local rack expansion
01 / PROCESSING CORE
IC695CPE310 uses a 1.1 GHz processor and provides a typical Boolean execution speed of approximately 0.072 ms per 1,000 Boolean instructions. Floating-point operation is supported for control calculations.
02 / MEMORY BALANCE
The 10 MB user-memory level provides considerably more room than compact RX3i CPUs. The processor uses SRAM and Flash-based storage, while non-volatile storage supports retention of stored data.
03 / SERIAL + ETHERNET
CPE310 combines RS-232 and RS-485 serial ports with embedded Ethernet. Serial communication supports SNP, Serial I/O and Modbus RTU functions, while the Ethernet interface supports RX3i Ethernet communication functions.
Technical Profile — IC695CPE310-BHAE
Platform
PACSystems RX3i
Processor
1.1 GHz
User Memory
10 MB
Discrete I/O Memory
32 Kbits
Analog I/O Memory
Up to 32 Kwords
Program Blocks
Up to 512; maximum 128 KB per block
Serial Ports
RS-232 / RS-485
Ethernet
10/100 Mbps
USB
USB-A 2.0 Master
Local Racks
Up to 8
Operating Temperature
0–60 °C
Memory Type
SRAM / Flash
Power
+3.3 VDC 1 A; +5 VDC 1 A; +24 VDC requirements depend on Energy Pack operation
Floating Point
Yes
Application Structure
Machine Control
Logic execution, sequencing, interlocks and I/O coordination
Legacy Integration
RS-232 / RS-485 interfaces for serial-connected equipment
Distributed I/O
RX3i rack architecture with local and remote expansion options
Operator Communication
Ethernet and serial communication paths for HMI / control-network integration
RX3i CPU SELECTION MAP
The CPE310 occupies a useful middle ground between compact control and high-capacity networking.
Model
Memory
Communication
Position
When to Choose
IC695CPE305
5 MB class
Compact RX3i Ethernet / serial architecture
Entry / mid range
When the program is smaller
IC695CPE310-BHAE
10 MB
Ethernet + RS-232 + RS-485 + USB
Mid-range
When memory, serial integration and rack expansion must increase together
IC695CPE330-ABAN
64 MB
3 × Gigabit Ethernet + USB + CFast
High-capacity
When application size and network density dominate
IC695CPU320
CPU320 class
Established RX3i architecture
Legacy / established
When existing architecture compatibility is the priority
Why CPE310? It offers a useful balance: 10 MB user memory is substantially above compact CPU levels, while dual serial interfaces preserve connectivity with equipment that still relies on RS-232 or RS-485. This makes CPE310 a practical choice for RX3i projects that need more controller capacity without moving directly to the 64 MB CPE330 class.
AMIKON / INDUSTRIAL STOCK IN MOTION
STOCK / PEOPLE / SERVICE
Amikon's large stock is the core of our supply.
Our large stock of industrial products is ready for delivery. More than 400,000 electronic products support a broad range of automation requirements.
New or out of production — from the smallest module to complete configurations. Strategic purchasing helps us respond to market changes and customer demand.
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world. If items happen to be out of stock, we will search our preferred supplier network for you. This means that your production can start and run immediately — reduce production stagnation or loss of capital gains.
Return / Replacement: Please contact us within 7 days after receipt if any issue occurs. Returned items should remain in original condition and the return reason should be stated clearly. A return or replacement can be processed after the returned item is received. The buyer covers shipping expenses associated with the return.
PURCHASE DECISION
IC695CPE310-BHAE — FAQ
Q1. Why would IC695CPE310-BHAE be selected instead of IC695CPE305 for an RX3i upgrade?
CPE310 provides 10 MB user memory and adds the RS-485 interface alongside RS-232, giving projects more memory headroom and broader serial integration capability.
Q2. Is IC695CPE310-BHAE suitable when existing equipment still communicates through RS-485?
Yes. CPE310 includes RS-485 as COM2 in addition to RS-232 COM1. Its serial communication support includes SNP, Serial I/O and Modbus RTU functions, making the interface combination valuable for mixed-generation equipment.
Q3. What does the 10 MB memory level of IC695CPE310-BHAE mean for application design?
The CPU provides 10 MB of user memory and can support up to 512 program blocks, with a maximum block size of 128 KB. This gives considerably more room for larger control applications than compact CPU classes.
Q4. Can IC695CPE310-BHAE handle a system with multiple local RX3i racks?
The CPE310 architecture supports up to eight local racks. The final rack arrangement depends on the selected backplanes, power supplies, I/O modules and communication architecture.
Q5. When is IC695CPE310-BHAE a better economic choice than IC695CPE330?
When the application needs the RX3i mid-range balance of 10 MB memory, dual serial ports and embedded Ethernet but does not require the CPE330's 64 MB memory and three-port Gigabit Ethernet architecture. Matching the CPU to actual application scale can avoid unnecessary controller capacity.
