Sixteen Slots / Two Internal Buses / One Local Control Base
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
DUAL BUS

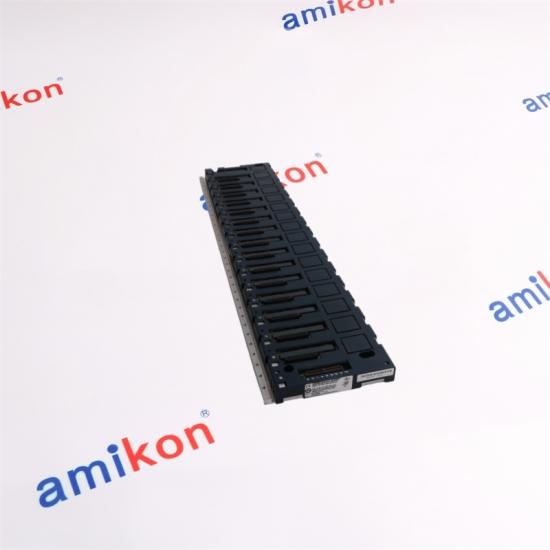

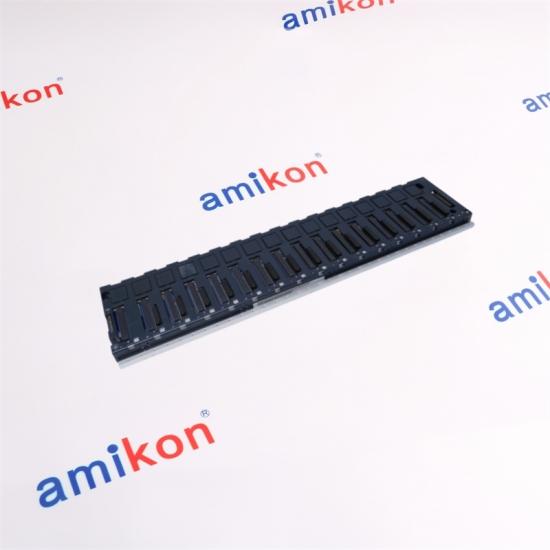

The IC695CHS016-EA is a sixteen-slot RX3i universal backplane that distributes power and internal communications across controller, communication and I/O modules. Its dual-bus construction supports the RX3i PCI bus and high-speed serial bus. Horizontal mounting, protective enclosure and adequate cooling clearance are essential.
604.3 mm Overall width
102 mm Minimum clearance
600 mA at 3.3V DC
240 mA at 5V DC
Mechanical and System Integration
Universal Slot Layout The backplane accepts compatible IC695 PCI-based modules and supported IC694 serial-bus modules within the RX3i architecture.
Cooling Space Allow at least 102 mm on all sides. Horizontal mounting supports the specified airflow and reliability.
Grounding and Enclosure Use the grounding point and protective enclosure. The backplane is open equipment and requires at least IP20 or NEMA/UL Type 1 protection.
Parameter
Value
Overall dimensions
604.3 x 141.5 x 148 mm approximately
Mounting centers
570.2 mm horizontal
Required clearance
102 mm minimum on all sides
Internal current
600 mA at 3.3V DC and 240 mA at 5V DC
Orientation
Horizontal mounting
Request a Focused Quote for GE IC695CHS016-EA Share the installed platform, revision, required quantity and destination.
Highest slot count in the standard RX3i universal backplane range.
IC695CHS012
12 universal slots
Shorter width where twelve slots meet the system plan.
IC695CHS007
7 universal slots
Compact base for smaller local configurations.
Selection point: Confirm slot count, cabinet width, cooling clearance, CPU-required hardware revision, power budget and module depth.
Amikon's Large Stock Is the Core of Our Supply
Customer Team Multilingual coordination
400,000+ Industrial Products PLC, HMI, drives, servo, CNC, IPC and PG coverage for current and mature equipment.
Order Control Structured tracking
Our stock-driven supply and preferred supplier network support fast availability checks. Strategic purchasing helps reduce production interruption. No additional handling or hidden charges are incurred.
Speak With Miya Zheng
Receive a focused response for compatibility, quantity and delivery planning.
After-delivery support: Contact us within seven days if an issue occurs. Keep the item in its original condition and provide the return reason. Return or replacement can be arranged after receipt and inspection; return freight is paid by the buyer.
GE IC695CHS016-EA Buyer FAQ
Can IC695CHS016-EA be mounted vertically? Horizontal mounting is required for specified performance and airflow.
Does IC695CHS016-EA provide sixteen usable module positions? It provides sixteen universal slots; the final arrangement depends on module width and power planning.
Can IC695CHS016-EA accept every Series 90-30 module? No. Only supported IC694 serial-bus modules may be used; compatibility must be checked by catalog and revision.
How much cooling clearance does IC695CHS016-EA need? Allow at least 102 mm on all sides, with more space when system heat requires it.
What should be verified before ordering IC695CHS016-EA? Confirm the CPU compatibility requirement, full backplane revision, enclosure width, horizontal mounting, clearance and module power demand.
