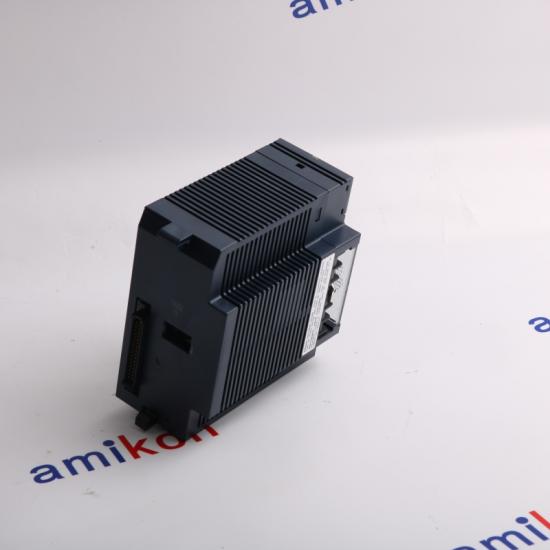

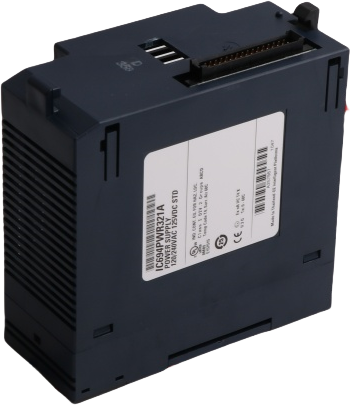

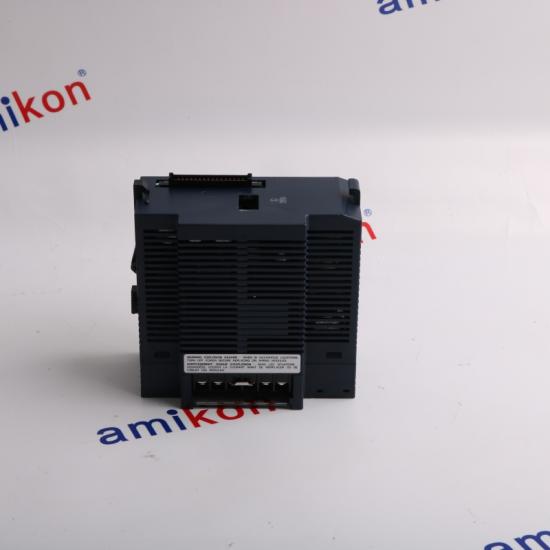

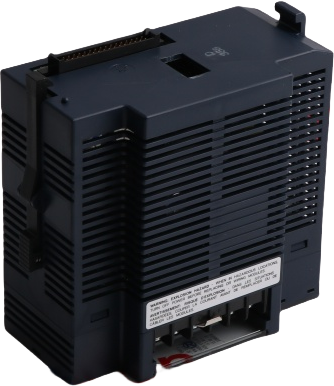

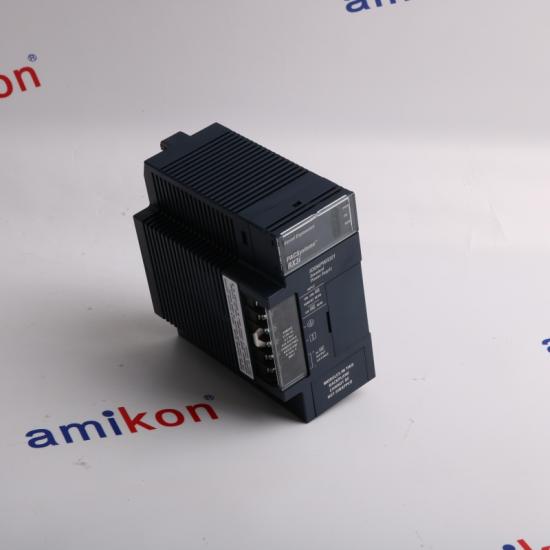

GE IC694PWR321 POWER SUPPLY Module

The IC694PWR321 power supply module has been designed and manufactured by GE Fanuc in the RX3i PacSystem series as a PLC power supply. It can be used in any RX3i PLC because it is compatible with all of the GE RX3i CPUs.

The IC694PWR321 power supply module is rated at 120/240 Volts AC and 125 Volts DC. It is designed to be a serial expansion device and it needs to be installed in the serial backplane of its host PLC, specifically in the slot furthest to the left.

The IC694PWR321 power supply module has a current rating of 2 Amps and it can provide up to 30 Watts of power unless it is operating with 5 Volts DC output voltage, in which case it can only provide 15 Watts of power. It does not support a load-sharing redundancy feature.

The IC694PWR321 power supply module runs on input voltages of 85 to 264 Volts AC or 100 to 300 Volts DC. Its green “PWR” LED glows when it is on and its power source and levels are steady.
