CORE FUNCTION
16-Point Digital Input

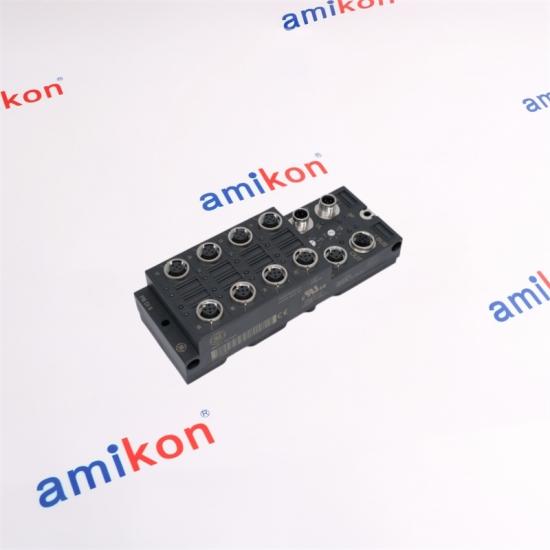

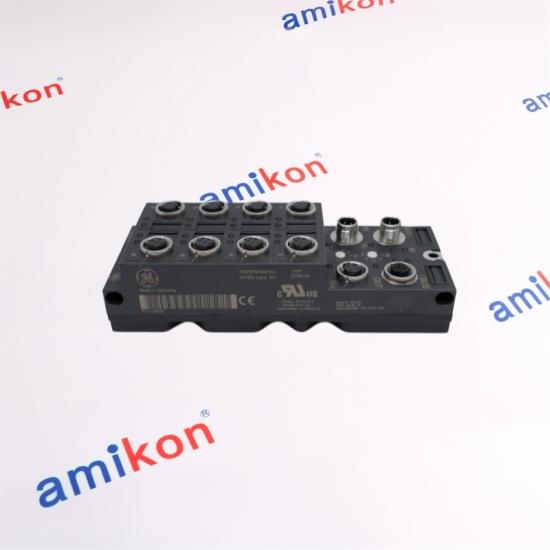

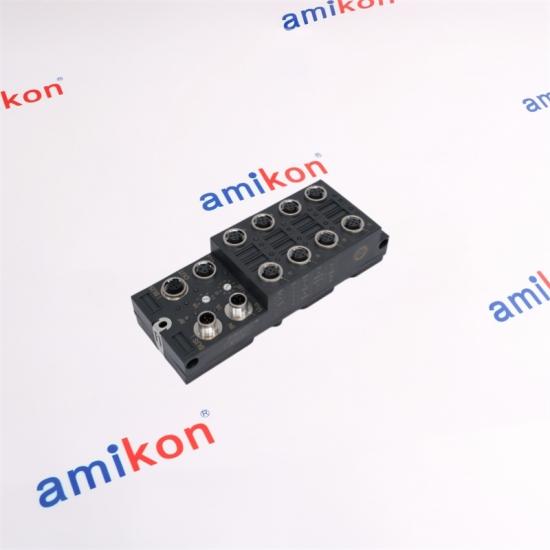

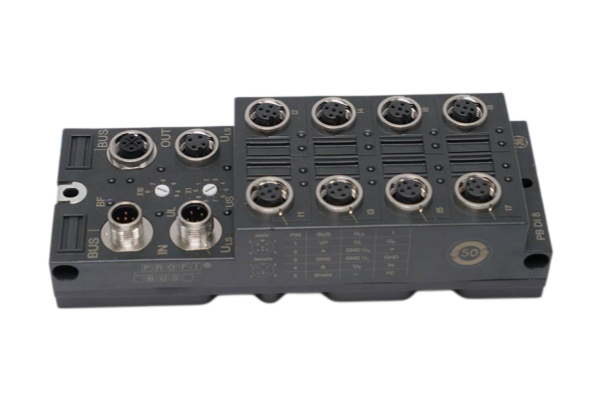

IC676PBI016-EA is the 16-point input member of the VersaMax IP standalone PROFIBUS family. Its role is to bring discrete field signals into the PROFIBUS DP control architecture through a compact distributed I/O node. |
|
|||||||||||
|
FIELD CONNECTION
Designed for distributed placement
VersaMax IP devices are intended for distributed automation close to field sensors and actuators. The IP65/IP67 family design allows I/O to be positioned nearer to the equipment rather than concentrating every signal inside a central cabinet. |
NETWORK PATH
|
The IC676 family uses the same standalone PROFIBUS concept, but the channel mix changes the function of each module. The comparison below makes the selection logic visible instead of treating the family as interchangeable.
| MODEL | I/O ROLE | POINT COUNT | OUTPUT CAPABILITY | BEST MATCH WHEN |
| IC676PBI016-EA | Digital Input | 16 inputs | None | More discrete sensor points are required |
| IC676PBI008 | Digital Input | 8 inputs | None | The input requirement is smaller |
| IC676PBM442 | Mixed I/O | 4 inputs + 4 outputs | 4 × 2 A outputs | Both sensing and switching are needed |
| IC676PBO082 | Digital Output | 8 outputs | 8 × 2 A outputs | The node is primarily actuator-side |
| IC677PBI001 | PROFIBUS Interface Unit | Gateway architecture | Modular I/O expansion | A modular local-bus architecture is required |
IC676PBI016-EA is specifically differentiated by its 16-point digital-input capacity. A visually similar module should not be treated as equivalent when the required I/O role or point count differs.
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
| 01 |
Can IC676PBI016-EA replace an 8-point IC676 input module without changing the application architecture?
The modules share the standalone PROFIBUS concept, but IC676PBI016-EA provides 16 inputs while IC676PBI008 provides 8. The receiving configuration and available field wiring should therefore be checked rather than assuming a direct point-for-point replacement.
|
| 02 |
Does IC676PBI016-EA fit a system that requires both digital inputs and outputs?
IC676PBI016-EA is an input-only module. If the same distributed node requires both sensing and actuator switching, the mixed-I/O IC676PBM442 has a different I/O composition and should be evaluated instead.
|
| 03 |
What should be checked when IC676PBI016-EA is installed near field sensors?
The VersaMax IP family is designed for distributed installation and supports 2-, 3-, and 4-wire sensor connections on the relevant digital I/O configurations. Confirm the actual sensor wiring, terminal arrangement, supply distribution and environmental requirements before commissioning.
|
| 04 |
Is IC676PBI016-EA suitable when the available installation space is limited?
The standalone IC676 modules are listed at 60 × 160 × 44.5 mm. This compact form factor supports distributed placement, but the complete installed clearance must include connectors, cable bend radius and the surrounding equipment.
|
| 05 |
What makes IC676PBI016-EA different from a modular IC677 PROFIBUS interface?
IC676PBI016-EA is a standalone PROFIBUS DP slave with its own 16-point digital-input role. IC677PBI001 is a PROFIBUS interface unit for a modular local-bus architecture. The choice therefore depends on whether the required architecture is a standalone I/O device or a gateway supporting modular I/O expansion.
|
