Passive carrier that mounts a compatible VersaMax communication module, joins it to the local backplane and provides the required mechanical interface.
Revision control: retain the H suffix when checking fit, connector condition and module compatibility.
66.8 mm Carrier width
133.4 mm Carrier height
35 mm DIN rail
Use a conductive, grounded DIN rail and verify side-bus engagement, keying and module retention before energizing the station.
International Delivery on the Day / Quick Response Support Intercontinental Cooperation Network

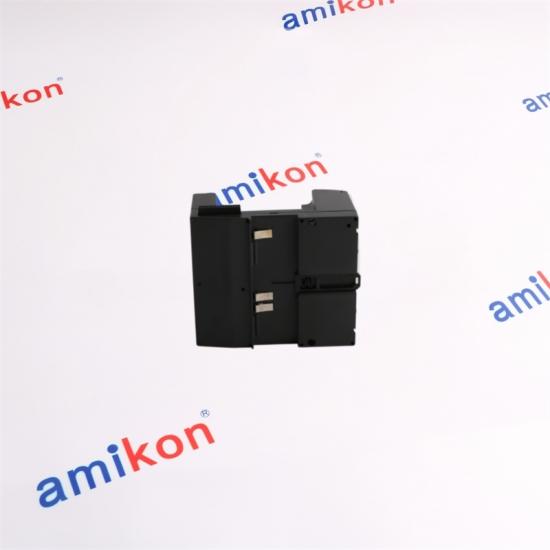

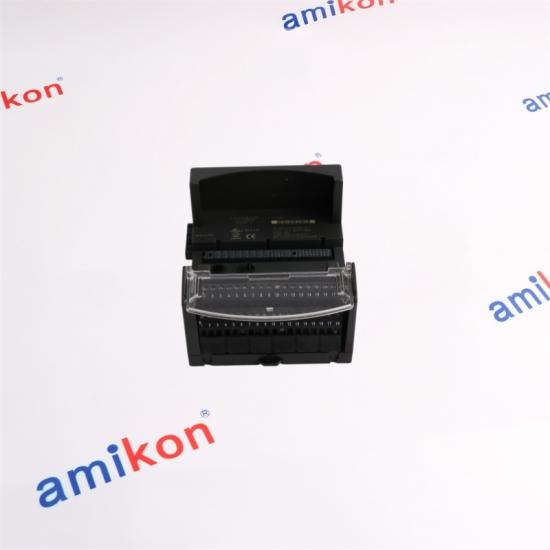

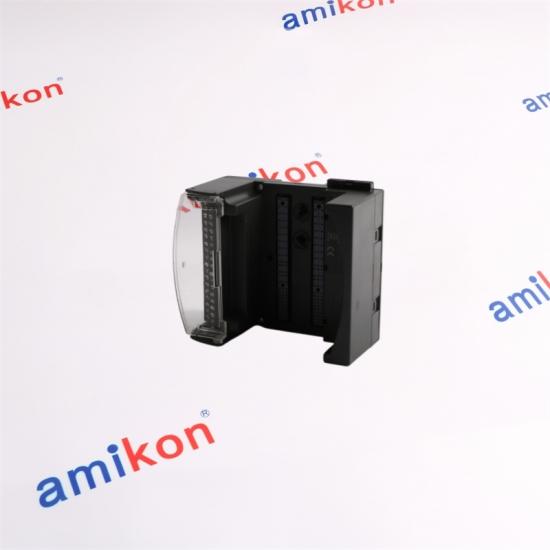

IC200CHS006H is a hardware revision of the VersaMax IC200CHS006 communications carrier. The carrier provides the mechanical mounting position, backplane connection and required field-wiring interface for a supported VersaMax fieldbus or communications module. It is a passive carrier rather than a CPU, network interface or standalone communication module.
Mechanical Interface, Backplane Path and Installation
Carrier function The CHS006 supports the communication module mechanically and connects it to the adjacent VersaMax backplane. It must be used with a compatible module and system arrangement.
DIN-rail installation The carrier snaps onto a 35 mm DIN rail. The rail must be conductive, corrosion resistant, unpainted at the contact surface and correctly grounded for EMC performance.
Module retention A latch opening secures the installed module to the carrier. Confirm that the module is fully seated, latched and correctly keyed before energizing the system.
Revision control The H suffix should be recorded during replacement. Verify connector condition, side-bus engagement, carrier keying, mechanical fit and compatibility with the installed communication module.
SYSTEM RELATIONSHIP
How the CHS006H Supports a VersaMax Communication Node
Adjacent VersaMax node Supplies the local backplane path and establishes the system position for the communication assembly.
IC200CHS006H Provides the mounting base, side-bus continuity, module retention and carrier-side connection points.
Communication module Performs the active fieldbus or serial communication function and contains protocol-specific electronics and indicators.
Selection advantage: the communications carrier allows a supported module to join the modular VersaMax backplane while preserving a compact DIN-rail arrangement. It must not be confused with an I/O terminal carrier or with the active communication module itself.
AMIKON GLOBAL SUPPLY NETWORK
Fast, Reliable Delivery for Industrial Automation
Responsive multilingual service
Clear coordination from inquiry through dispatch.
Quality-focused handling
Product identity, condition, quantity and destination are coordinated before shipment.
Stock positioned for urgent demand
New and discontinued automation parts for customers across multiple industries.
QUALITY Careful part matching
RELIABILITY Prompt order coordination
TRUST Transparent communication
SUPPORT Customer-focused response
AMIKON supplies high-quality industrial automation parts through a convenient international platform. Our priority is to reduce procurement delay, support maintenance schedules and build lasting relationships through reliable service, honest communication and efficient delivery.
Contact within 7 days Tell us promptly if an issue is found after receipt.
Keep the item unchanged Returned items must remain in their original condition with a clear return reason.
Return freight The buyer is responsible for shipping costs arising from the return.
After the returned item is received and checked, the order can be coordinated for an applicable replacement or return outcome.
PURCHASING FAQ
Five Questions Buyers Ask Before Ordering
Is IC200CHS006H an active communications module?
No. It is the local communications carrier. The separately installed compatible module performs the active protocol and network functions.
What should be checked before ordering IC200CHS006H?
Confirm the complete H revision marking, the hosted communications module, carrier keying, adjacent VersaMax arrangement, physical connector condition and required mounting method.
Can IC200CHS006H replace a standard I/O terminal carrier?
It should not be treated as a general I/O terminal carrier. CHS006 is designed for supported communications modules and has a different mechanical and connection role.
Does IC200CHS006H require the DIN rail to be grounded?
Yes. The carrier installation requires a conductive, corrosion-resistant DIN rail that is electrically grounded to support EMC performance.
What should be inspected after IC200CHS006H installation?
Check DIN-rail locking, optional panel fastening, module latch engagement, side-bus seating, connector alignment and the active module diagnostics after power is restored.
