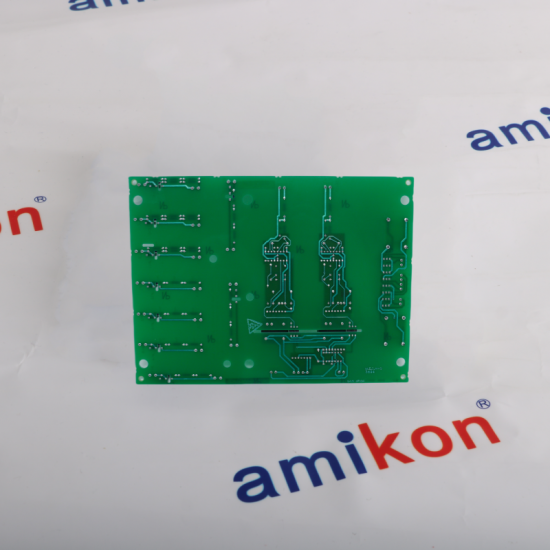

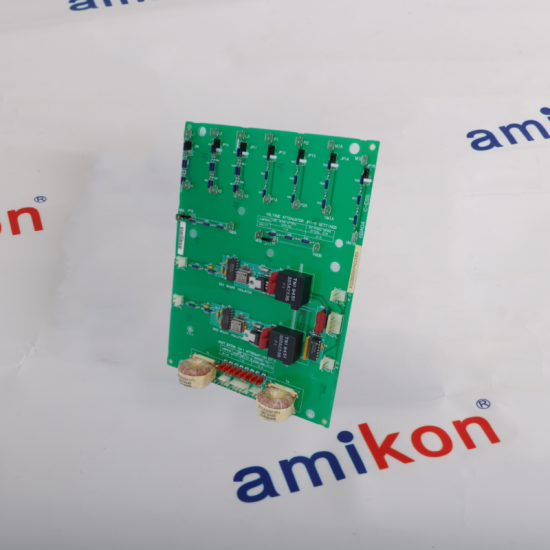

GE DS200SHVMG1AED HIGH VOLTAGE CONTROL BOARD

After installing the card, a medium for interfacing the SCR bridge from the M-frame drive and the power supplies found in either the DCFB or SDCI board as well as the power connect card, or PCCA.

Differential frequency outputs ranging from 0 to 500 kHz are produced by the card converting shunt signals ranging between -500 and 500 mV. All conversions of these signals are performed by DC positive and negative floating shunts in the voltage-controlled oscillator (VCO) circuits.

Once converted, the differential frequency outputs are sent to the DCFB/SDCI board or the PCCA card. AC line currents on the board are provided a 10:1 current transformer attenuation.

There are 17 configurable jumpers on board, allowing users to select attenuation rates.

Several connectors have been included in this DS200SHVMG1AED PCB's assembly for convenient and safe interfacing potential. These connectors all correspond to their own specific factory-printed nomenclature labels, and include:The CT1PL-1 L1 ACCT Current Negative Input Connector.The CT1PL-2 L1 ACCT Current Positive Input Connector.The CT3PL-1 L3 ACCT Current Negative Input Connector.The CT3PL-2 L3 ACCT Current Positive Input Connector.

Compatibility:Speedtronic Turbine Control

Operating Temperature:-10°C to 55°C

Storage Temperature:-20°C to 60°C

Dimensions:178 x 114 x 36L x W x H (mm)

Weight:0.9 Kg
