| ACC-5595-208 / RFM HUB | OVERVIEWSPECIFICATIONSINTEGRATIONRELATED MODELSFAQ |
|
|
GE INTELLIGENT PLATFORMS / REFLECTIVE MEMORY
ACC-5595-2082 Gb/s Reflective Memory Hub

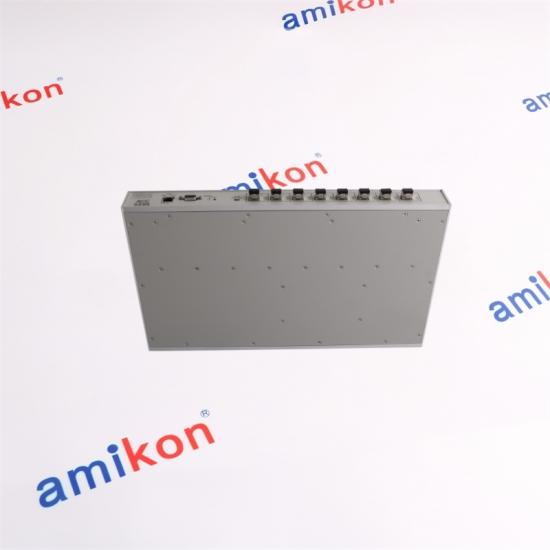

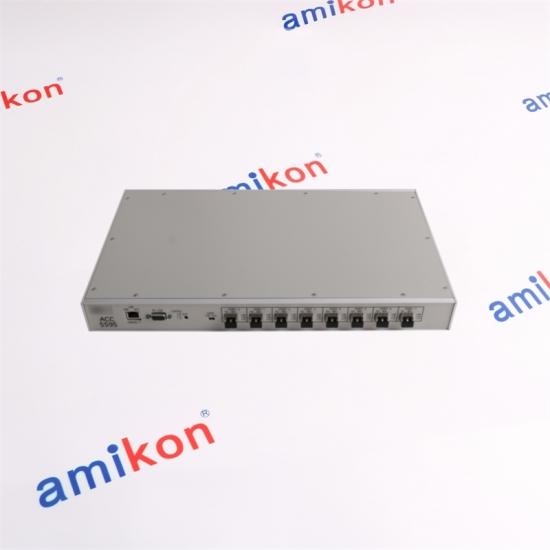

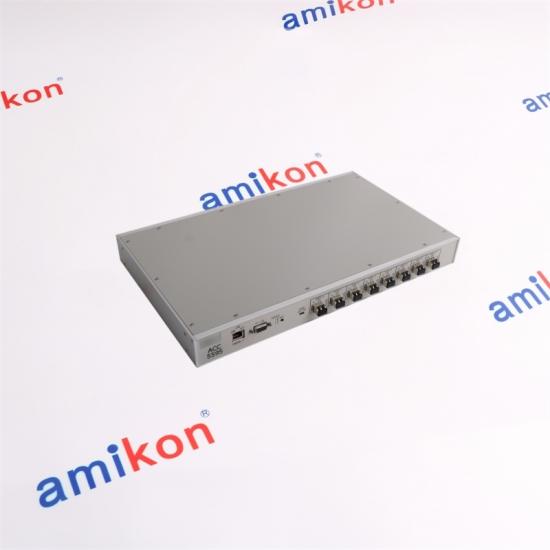

Rack-mount or desktop reflective-memory hub that regenerates and distributes a 2 Gb/s fiber-optic reflective-memory network through eight multimode pluggable transceiver ports.
|
NETWORK MATCH
FIBER / PORT COUNT / TOPOLOGY
01 Exact code
02 Multimode network 03 Installed topology |
| REQUEST PRICE & AVAILABILITY | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
|
02
|
VERIFIED PRODUCT DATA
Technical Specifications
|
|
|
03
|
SYSTEM SIGNAL PATH
Functional Role & System Integration
|
|
| The hub receives optical reflective-memory traffic, regenerates it and redistributes it to connected nodes. Gang selection permits one eight-port loop or two independent four-port loops. Ethernet browser management and the serial service interface support status review and configuration of port bypass, Dark on Dark and forced port states. | Replacement gate Identity / revision / wiring / configuration / validation |
| DISCUSS YOUR REQUIREMENT | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| Sales manager: Miya zheng | ||
|
06
|
PURCHASE DECISIONS
Frequently Asked Questions
|
|
| 01 |
Can ACC-5595-280 replace ACC-5595-208 directly?
No. The 280 variant uses single-mode optics while the 208 uses multimode transceivers.
|
| 02 |
Does ACC-5595-208 store process data?
Its primary role is to regenerate and distribute reflective-memory traffic; it is not the application memory node.
|
| 03 |
Can the eight ports be divided into two loops?
Yes. The Gang Select function supports one eight-port loop or two separate four-port loops.
|
| 04 |
How is the hub managed?
It provides 10BaseT Ethernet browser management and an RS-232 service interface.
|
| 05 |
What must be checked before replacement?
Verify optical mode, transceiver population, firmware, topology, bypass settings, supply and physical mounting.
|
|
