Manufacturer / Division |
Emerson (EPRO Division) |
|
Model Number |
PR6423/002-000 with CON021 Converter |
|
Product Type |
Non-contact Eddy Current Displacement Transducer |
|
Static Measurement Range |
±1.0 mm (±0.04 inches) |
|
Dynamic Measurement Range |
0 to 500 μm (0 to 20 mils) |
If you want to know more, please contact us!
Looking forward to your contact.
Product Description

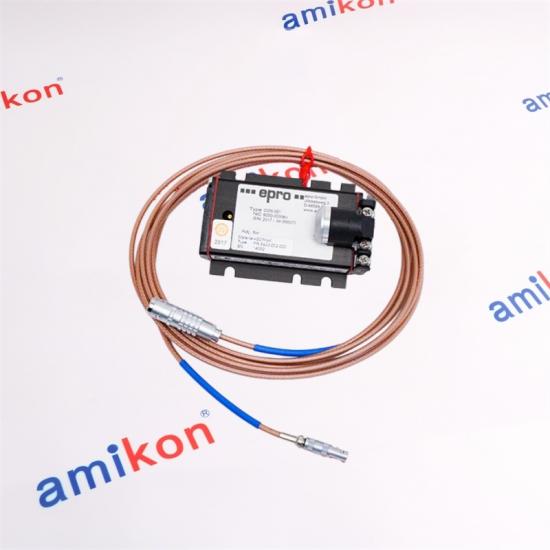

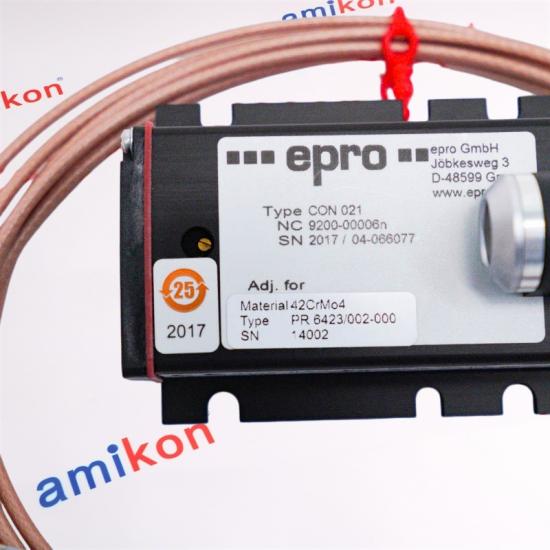

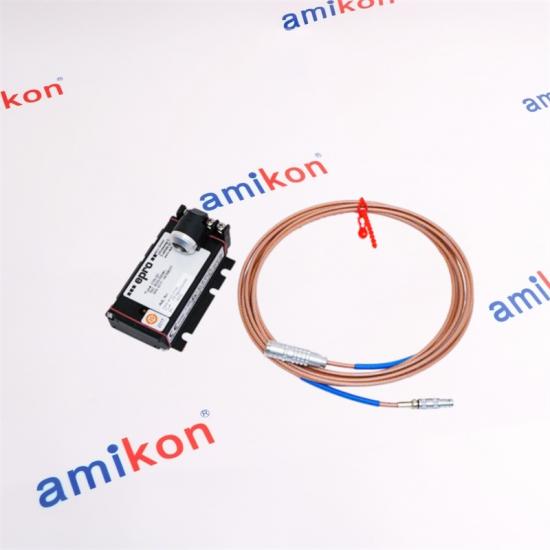

u The Emerson PR6423/002-000 CON021 (commonly referred to as the EPRO PR6423) is a high-performance, linear eddy current displacement sensor engineered for non-contact, continuous measurement of rotating machinery. Operating on high-frequency eddy current principles, it accurately monitors static parameters (such as shaft position and eccentricity) and dynamic parameters (such as radial vibration) without physical contact.
u As a core component of Emerson's globally recognized EPRO series, this sensor is purpose-built to comply with stringent API 670 standards. It is typically paired with the CON021 signal converter for precise signal linearization and temperature compensation, converting raw impedance changes into standard signals for integration into machinery protection platforms like the Emerson CSI 6500 or AMS 6500.
Technical Specifications
|
Manufacturer / Division |
Emerson (EPRO Division) |
|
Model Number |
PR6423/002-000 with CON021 Converter |
|
Product Type |
Non-contact Eddy Current Displacement Transducer |
|
Static Measurement Range |
±1.0 mm (±0.04 inches) |
|
Dynamic Measurement Range |
0 to 500 μm (0 to 20 mils) |
|
Resolution |
Down to 1 μm |
|
Initial Air Gap (Mounting) |
Typically 0.5 mm |
|
Temperature Error |
Zero point drift of 200 mV / 100 K |
|
Operating Temperature |
-40°C to +100°C (-40°F to +212°F) |
|
Output Signal |
Conditioned voltage or current (e.g., 4–20 mA) via CON021 |
|
Housing Material |
High-grade Stainless Steel |
|
Ingress Protection |
IP67 |
|
Weight |
Approx. 0.4 kg (Sensor only) |
|
Certifications |
ISO 9001, CE, UL, CSA |
Key Features
u Non-Contact Measurement: Eliminates mechanical wear and loading on the rotating shaft, ensuring an unlimited sensor lifespan and maintenance-free operation.
u API 670 Compliant: Fully meets the rigorous international industry standard for machinery protection systems in critical oil, gas, and power applications.
u Laboratory-Grade Precision: Delivers high-resolution feedback down to 1 micron, capable of detecting the most minute shaft movements under harsh field conditions.
u Integrated Signal Conditioning: The companion CON021 converter provides advanced linearization and temperature compensation to ensure signal stability across varying climates.
u Heavy-Duty Construction: Features an IP67-rated high-grade stainless steel housing that withstands extreme temperatures, dust, and moisture in heavy industrial environments.
Frequently Asked Questions (FAQ)
1. What is the primary application of the PR6423/002-000 sensor?
This sensor is mainly used for non-contact displacement and vibration monitoring of rotating machinery such as turbines, compressors, and motors.
2. What does the CON021 converter do?
The CON021 converter conditions the sensor signal and provides standardized output signals such as voltage or 4–20 mA current output for monitoring systems.
3. What is the measurement accuracy of this transducer?
The transducer offers very high precision with a resolution down to 1 μm, making it suitable for critical machinery protection applications.
4. Is the sensor suitable for harsh industrial environments?
Yes. Its stainless-steel housing and IP67 protection rating provide excellent resistance to dust, moisture, and industrial conditions.
5. What industries commonly use this product?
It is widely used in power plants, oil and gas facilities, petrochemical plants, and heavy industrial process systems.
