EMERSON / EPRO · PR9268 SERIES

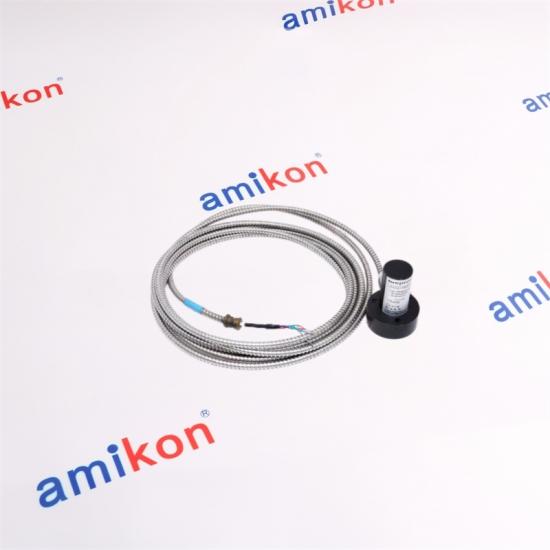

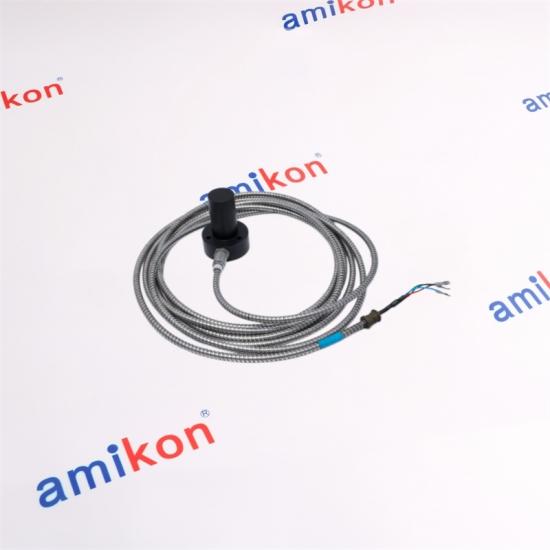

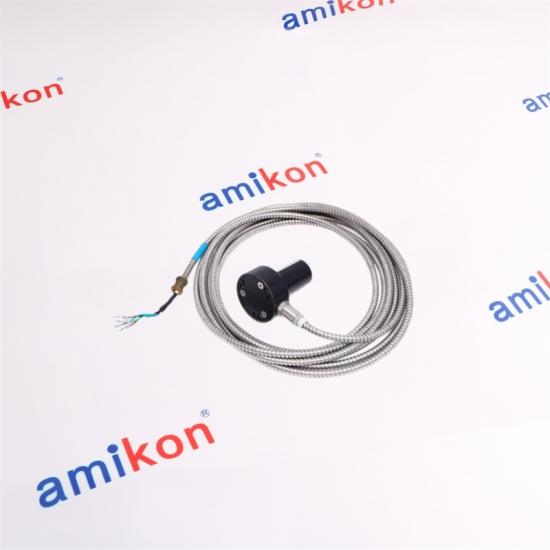

PR9268-201-100
Electrodynamic Velocity Sensor · Vertical Vibration Measurement
Built for critical machinery monitoring. The PR9268 family provides absolute vibration measurement for machinery such as turbines, compressors, pumps and fans. The electrodynamic principle produces a self-powered vibration signal without a separate sensor power supply.
|
CONFIGURATION SNAPSHOT
◆ Engineered for continuous machinery condition monitoring
|
|
Designed around the machine condition signal
The PR9268-201-100 belongs to the PR9268 electrodynamic velocity sensor family and is configured for vertical vibration measurement. It is intended for absolute vibration measurement on critical rotating machinery, including steam, gas and hydro turbines, compressors, pumps and fans.
Why the configuration matters
The “20” measurement designation specifies the vertical sensor orientation. The “1” cable designation corresponds to a 5 m armored cable, while the cable-end designation “1” specifies an open cable end. This configuration should be matched with the existing monitoring chain before replacement.
|
|
|
|
|
PR9268/01x
Omni-directional configuration
14–1000 Hz family range |
PR9268/20x
Vertical measurement
4–1000 Hz · 28.5 mV/mm/s PR9268-201-100 belongs here |
PR9268/30x
Horizontal measurement
4–1000 Hz family range |
|
Critical rotating equipment
The PR9268 family is intended for absolute case-vibration measurement on critical turbomachinery. Typical equipment includes steam, gas and hydro turbines, compressors, pumps and fans.
|
Replacement & fault-check scenarios
01 · No expected signal
Check the transducer circuit and insulation resistance. For the PR9268/20x-x00 family, insulation resistance is specified above 1 MΩ when tested at 500 V AC. 02 · Unexpected signal during movement check
A moving PR9268/20x-x00 transducer can generate approximately 1–2 V AC depending on movement. A signal-generation check can therefore help distinguish a sensor circuit issue from a monitoring-chain issue. 03 · Replacement configuration mismatch
Confirm vertical orientation, 5 m armored cable and open cable end before ordering the replacement. Cable termination differences can change the installation requirements. |
| 01 |
Does PR9268-201-100 match a replacement that requires a vertical sensor, 5 m armored cable and open cable end?
Yes. The ordering configuration PR9268/201-100 corresponds to the PR9268/20x vertical measurement family, cable option 1 for 5 m armored cable, and cable-end option 1 for an open cable end. Confirm the installed monitoring chain before replacement.
|
| 02 |
Can PR9268-201-100 be substituted directly with a horizontal PR9268 variant?
Not on the basis of the family number alone. PR9268/20x versions are specified for vertical measurement, while PR9268/30x versions are specified for horizontal measurement. The mounting direction and measurement-chain configuration should therefore be checked before substitution.
|
| 03 |
Is PR9268-201-100 suitable when the existing system expects a self-powered velocity sensor?
Yes. The PR9268 family is specified as self-powered and uses electrodynamic conversion. This makes the exact sensor configuration and the receiving monitoring input important considerations when replacing an installed unit.
|
| 04 |
What should be checked when PR9268-201-100 gives little or no vibration signal after installation?
Check the sensor circuit, cable condition, insulation resistance and connection polarity. For the PR9268/20x-x00 family, the specified insulation resistance is above 1 MΩ at a 500 V AC test voltage. A movement check can also produce approximately 1–2 V AC depending on movement.
|
| 05 |
Is PR9268-201-100 appropriate for hazardous-area machinery monitoring?
The PR9268/20x-x00 family has intrinsic-safety versions with ATEX and IECEx approvals. Hazardous-area installation requires the applicable safety barriers, grounding and installation conditions to be satisfied. Verify the exact installed configuration and hazardous-area requirements before purchase.
|
|
Please include these five details with your inquiry:
Providing the complete configuration helps reduce replacement errors, especially where sensor orientation, cable length and cable termination are critical.
|
|
|
