Model : 330881-BR-04-034-06-02
Original and brand new
12-month warranty
Shipping worldwide
Q Contact Info
Q Product Applications
lShaft vibration monitoring on small-to-medium centrifugal pumps and fans – the 34 mil (0,86 mm) range is perfect for machines with tight bearing clearances.
lThrust-position check on high-speed gear-boxes; alarms if the pinion or wheel moves axially before teeth touch the casing.
lSpeed/key-phasor pickup on motor-driven compressors – the 5 mm probe tip sees every key-way and sends a clean TTL pulse to the protection system.
Q Product Summary

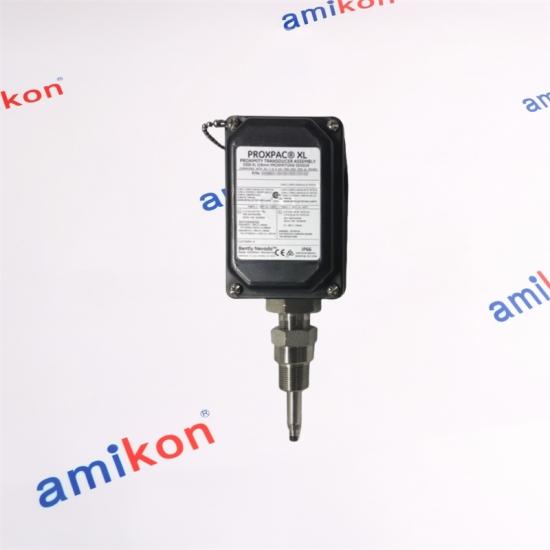

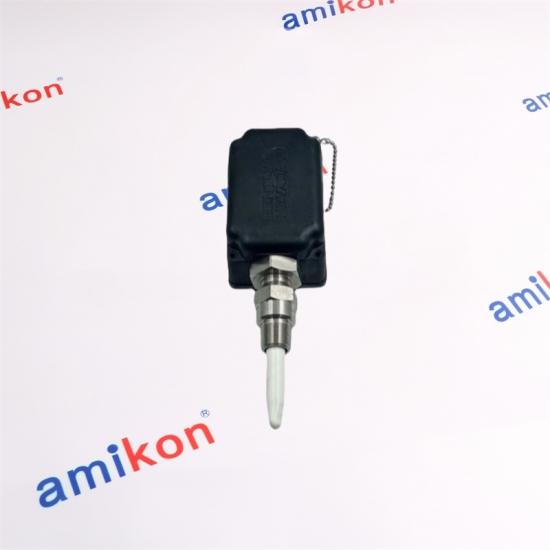

330881-BR-04-034-06-02 is a Bently Nevada PROXPAC® XL proximity transducer that gives a –10 V to 0 V signal over 0–34 mil (0–0,86 mm) of shaft movement. It runs on –24 V dc, works from –34 °C to +100 °C, and plugs straight into 3300 monitors—ideal for tight-clearance pumps, gear-boxes or compressors that need reliable, non-contact vibration or thrust data without extra hardware.
Q Amikon
We are spare parts specialists in industrial automation
Inventory: A large number of new and discontinued parts with a wide range of brand names.
Economic Benefits: Competitive Prices and Specific Distributor Discounts
Reliability: Each product is tested and guaranteed for at least 12 months.
Speed: Rapid response, efficient delivery.
Professional: Solid business organization, well-trained engineers.
International: Global network of partners and preferred suppliers
