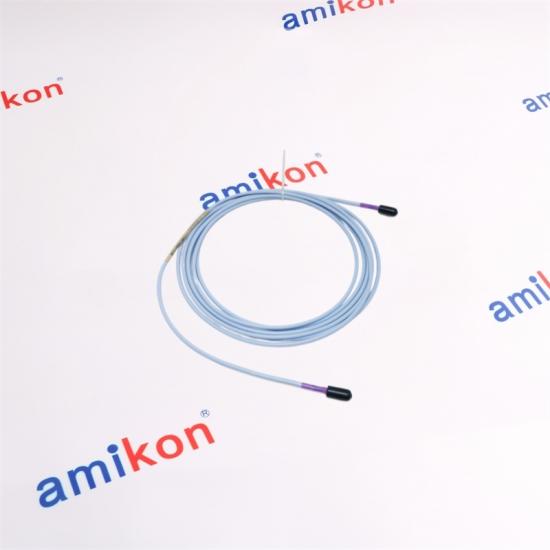

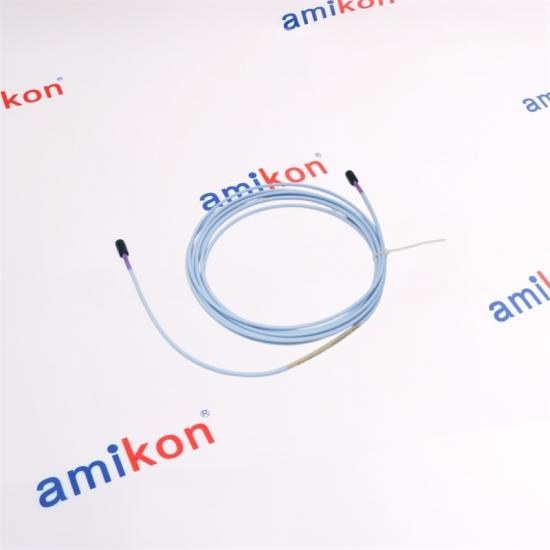

A 4.0 m FluidLoc extension cable with connector protector for the 3300 XL 11 mm proximity transducer system. It carries the probe signal to the matching Proximitor Sensor while preserving the electrical-length relationship required by the selected system.
|
01
Exact Build Code |
|
The cable is an electrically matched link, not a general-purpose coaxial lead. Option 12 adds a FluidLoc construction that restricts oil and other liquids from migrating through the cable interior, while the connector protector adds environmental protection around the ClickLoc connection. The locking, gold-plated brass connectors help resist loosening in machinery environments.
| Cable Characteristics | |
|---|---|
| Product role | Probe-to-Proximitor Sensor extension cable |
| Associated system | 3300 XL 11 mm proximity transducer system |
| Nominal length | 4.0 m (13.1 ft) |
| Cable construction | 75 Ω triaxial cable with FEP insulation; FluidLoc option |
| Typical capacitance | 69.9 pF/m (21.3 pF/ft) |
| 4.0 m core resistance | 1.0 ± 0.25 Ω, center conductor to center conductor |
| 4.0 m jacket resistance | 0.3 ± 0.1 Ω, coaxial conductor to coaxial conductor |
| Connector style | Gold-plated brass ClickLoc connectors with protector |
The surrounding 3300 XL 11 mm system supports non-contacting radial vibration, axial position, position and Keyphasor measurements. Its 4.0 mm (160 mil) linear range and 3.94 V/mm (100 mV/mil) scale factor suit applications that need more measurement range than the standard 8 mm system.
The cable itself does not perform the measurement. Measurement performance depends on the correct 11 mm probe, extension-cable length, Proximitor Sensor total-length option, target material and monitor channel configuration working together.
|
①
3300 XL 11 mm ProbeCreates the proximity signal at the machine |
→ |
②
330730-040-12-00Extends the probe connection by 4.0 m |
→ |
③
3300 XL 11 mm Proximitor SensorConditions the signal for the monitor |
| Selection Point | 040 Version | 080 Version |
|---|---|---|
| Extension length | 4.0 m (13.1 ft) | 8.0 m (26.2 ft) |
| Typical matched use | Commonly paired with a 1.0 m probe for a 5.0 m system | Commonly paired with a 1.0 m probe for a 9.0 m system |
| Core resistance | 1.0 ± 0.25 Ω | 2.0 ± 0.5 Ω |
| Jacket resistance | 0.3 ± 0.1 Ω | 0.6 ± 0.2 Ω |
| Electrical length Add probe cable length and extension-cable length; the result must equal the Proximitor Sensor total-length option. |
Connector care Seat ClickLoc connectors fully, protect them from moisture and keep contaminants away from the contact surfaces. |
Routing Avoid sharp bends, crushing, abrasion and unsupported pull at the probe-to-cable connection. |
|
Exclusive multilingual support and structured order tracking.
|
Model matching, inspection coordination and responsive customer care.
|
More than 400,000 industrial electronic products prepared for global delivery.
|
Our industrial stock covers PLC, HMI, drives, servo and CNC devices, IPC and PG products. It ranges from current technology to hard-to-find and discontinued components, from individual modules to complete configurations.
Market awareness, technology tracking and customer demand guide strategic purchasing, reducing the need to transfer business. When an item is unavailable, our preferred supplier network supports a focused search.
Wide brand coverage helps customers restore production quickly, reduce downtime and limit lost capital gains. No additional handling charge or hidden charge is added.
Send the exact part number, required quantity, target machine and current probe/Proximitor Sensor part numbers. This allows the electrical length and option code to be checked before shipment.
| Email sales1@amikon.cn |
Response Focus Availability, configuration check and shipment planning |
| 01 | Contact us within 7 days after receipt if a problem is found. |
| 02 | Keep the item in its original condition and provide the specific reason. A return or replacement is arranged after the returned item is received and checked. |
| 03 | Return-shipping costs are the buyer's responsibility. |
| Q1 | Will 330730-040-12-00 complete my existing 3300 XL 11 mm loop correctly? It will when the probe cable plus this 4.0 m extension equals the total length configured for the matching Proximitor Sensor. A common pairing is a 1.0 m probe plus this cable for a 5.0 m system. Confirm all three part numbers before purchase. |
| Q2 | Does 330730-040-12-00 include mechanical armor? No. Code 12 means FluidLoc cable with connector protector. It does not mean armored FluidLoc cable. If physical armor is required, the connector-and-cable option must be selected accordingly. |
| Q3 | Can 330730-040-12-00 be ordered for a hazardous-area installation? The final code 00 means agency approval is not required. If the installation requires specific approvals, confirm the site classification and choose an approval option that meets the project requirement before ordering. |
| Q4 | Can 330730-040-12-00 replace a damaged cable without matching individual calibration? Components within the correct 3300 XL 11 mm family are designed for interchangeability. The replacement must still match the 11 mm family, total electrical length, target calibration and required cable/approval options. An 8 mm cable or a different system length is not a direct substitute. |
| Q5 | What should be checked when 330730-040-12-00 arrives? Verify the complete part number, 4.0 m length, FluidLoc construction, connector protectors and connector condition before installation. Keep protective parts fitted until connection, avoid ESD and do not substitute silicone tape where the joint is exposed to turbine oil. |
