Extended Temperature Range Applications
An extended temperature range (ETR) probe and ETR extension cable are available for applications in
which either the probe lead or extension cable may exceed the standard 177˚C (350˚F) temperature
specification. The ETR probe has an extended temperature rating for up to 218˚C (425˚F). The ETR
extension cable rating is up to 260˚C (500˚F). Both the ETR probe and cable are compatible with standard
temperature probes and cables, for example, you can utilize an ETR probe with the 330130 extension cable.
The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component
as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system.
☆。☆。☆。☆。☆。 ☆。☆。☆。☆。☆。☆。☆。☆。☆。☆。☆。☆。
Product Description

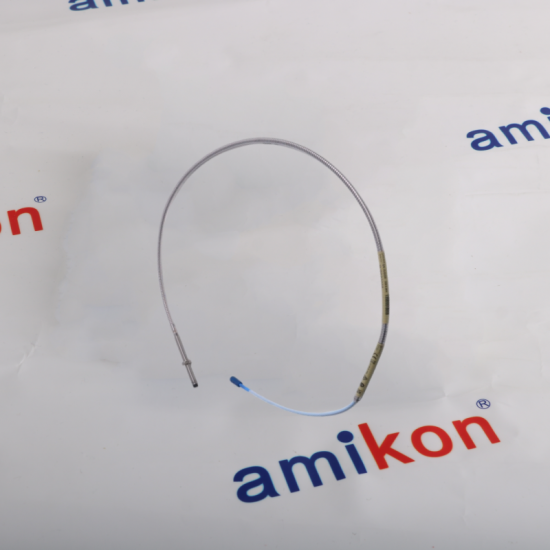

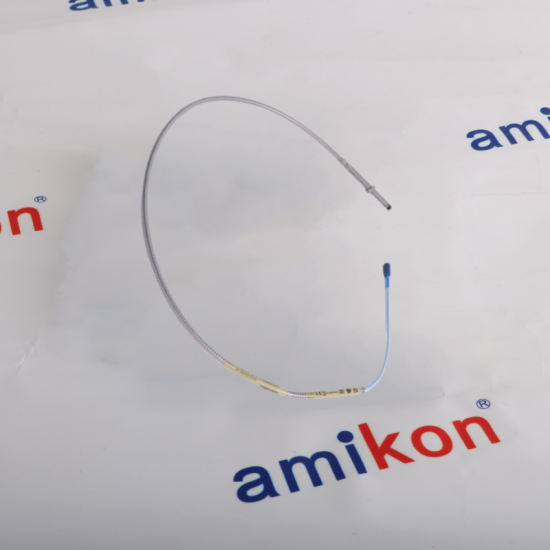

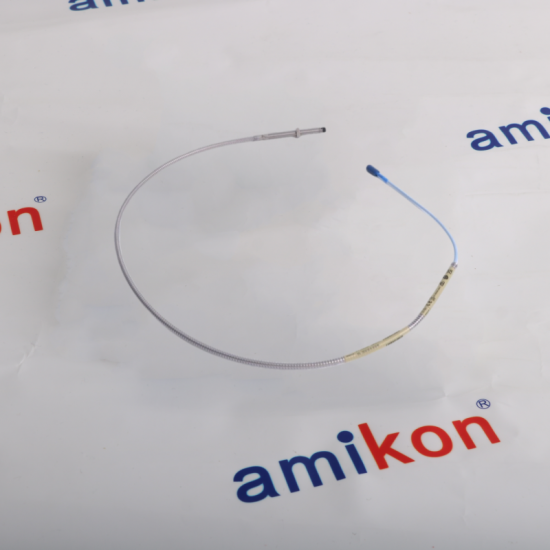

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented
TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s
cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely
attach the probe cable and probe tip. You can also order 3300 XL 8 mm probes and extension cables with
an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine
through the cable’s interior.
☆。☆。☆。☆。☆。 ☆。☆。☆。☆。☆。☆。☆。☆。☆。☆。☆。☆。
