330105-02-12-15-12-CN BASIC INFO:

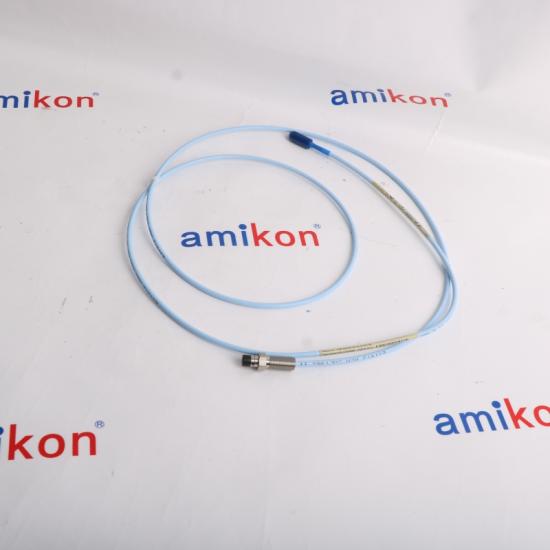

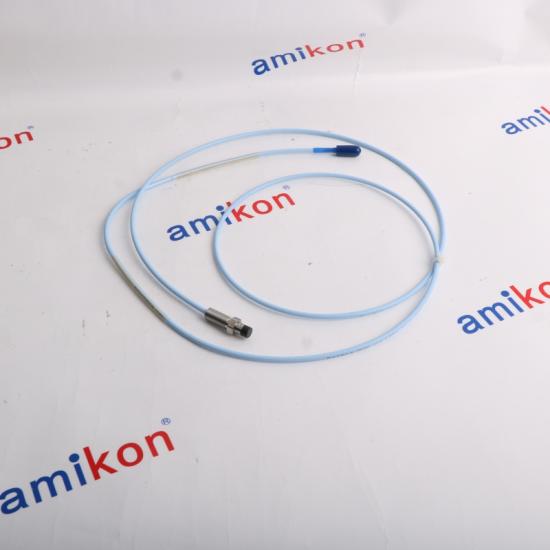

1.Model Number: 330105-02-12-15-12-CN
2.Brand Name: Bently Nevada
3.Description: 3300 XL 8mm Proximity Probes
4.Product Range: 3300 XL Proximity Transducer System
330105-02-12-15-12-CN:
One 3300 XL probe
One 3300 XL extension cable1 and
One 3300 XL Proximitor Sensor
|
Sales manager |
|
Phone |
|
|
|
Jessica |
hu18030235311 |
The Bently Nevada 3300 XL Proximity Transducer System series includes two models, 8 mm and 11 mm,
and is widely used for vibration and displacement measurement of fluid film bearing machinery. The Bently
Nevada 3300 XL Proximity Transducer System is an eddy current sensor system that is widely used for
vibration and displacement measurement of fluid film bearing machinery.
1. 3300 XL 8 mm Eddy Current Sensor System
Measurement Range: 2 mm (80 mils). Linear range starts at approximately 0.25 mm (10 mils) from the probe
tip to the target surface and ranges from 0.25 to 2.3 mm (10 to 90 mils), corresponding to an output voltage of
approximately -1 to -17 Vdc.
Measurement Accuracy: 7.87 V/mm sensitivity at 1 or 5 m for standard 8 mm systems,
±5% error, for 0 to +45°C temperature range.
Frequency Response: 0 to 10 kHz, +0, -3 dB. Maximum field wiring length is 305 m.
System Length Options: 5 or 9 m including extension cable, or 1 m without extension cable.
Probe Types: Available in a variety of diameters and lengths, customizable as needed.
Temperature: -51°C to +177°C (-60°F to +351°F)
Hazardous Area Approvals: CSA, ATEX, IECEx, etc.
2. 3300 XL 11 mm Eddy Current Sensor System
Measurement Range: 4 mm (160 mils). Linear range starts at approximately 0.5 mm (20 mils) from the probe
tip to the target surface and ranges from 0.5 to 4.5 mm (20 to 180 mils), corresponding to an output voltage of
approximately -1 to -17 Vdc.
Measurement Accuracy: Sensitivity is 3.94 V/mm (100 mV/mil) with an error of ±10% for a temperature range
of 0 to +45°C.
Frequency Response: 0 to 8 kHz.
System Length Options: 5 or 9 meters including extension cable.
Head Type: Available in a variety of thread sizes and configurations, including 1/2-20 UNF, 5/8-18 UNF, M14x1.5,
and M16x1.5, with armored or unarmored options.
|
