Bently Nevada 330104-06-14-10-02-00 Metric-thread 3300 XL 8 mm Proximity Probe
| BENTLY NEVADA | Overview Specifications Application FAQ Models Contact |
|
BENTLY NEVADA · 3300 XL 8 MM

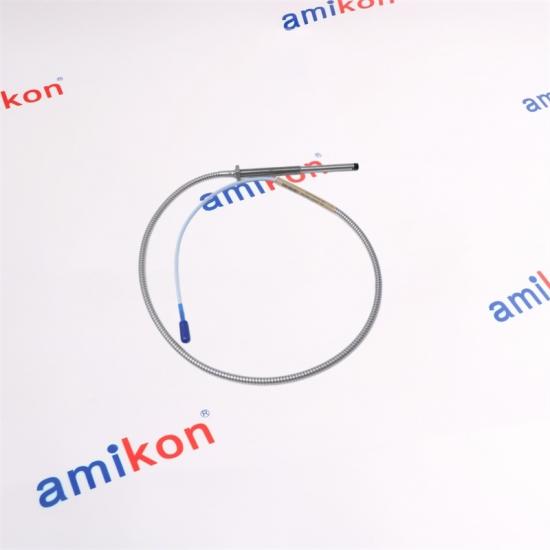

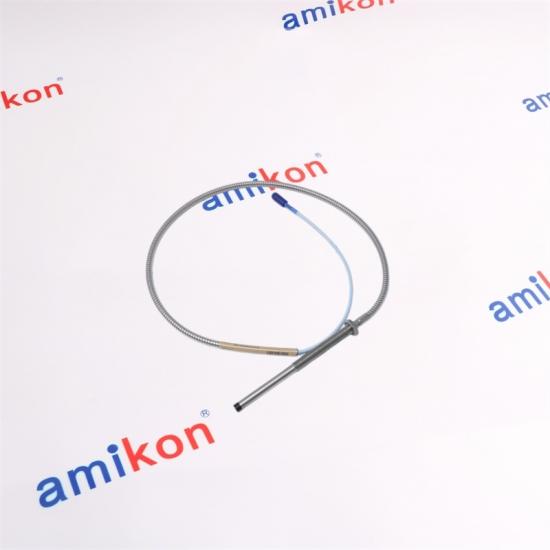

330104-06-14-10-02-00
3300 XL 8 mm Proximity Probe
A metric-thread 3300 XL 8 mm proximity probe configuration designed for non-contact measurement of shaft position and dynamic vibration within compatible machinery monitoring systems. |
|
|
01
Eddy-Current Measurement
Non-contact sensing provides measurement proportional to the distance between the probe tip and the conductive target.
|
02
Metric Installation
The 330104 configuration uses an M10 × 1 threaded probe body for compatible mounting arrangements.
|
03
Position & Vibration
The 3300 XL 8 mm system supports static position and dynamic vibration measurements on fluid-film bearing machinery.
|
| Product Family | 3300 XL 8 mm Proximity Probe |
| Probe Configuration | 330104 metric configuration with M10 × 1 thread and armor |
| Unthreaded Length | 60 mm |
| Overall Case Length | 140 mm |
| Total Probe Length | 1.0 meter |
| Connector / Cable | Miniature coaxial ClickLoc connector with standard cable |
| Agency Approval Option | 00 — approval not required |
| Probe Tip Diameter | 8.0 mm |
|
SYSTEM PERFORMANCE
Measurement Characteristics
The complete 3300 XL 8 mm transducer system produces an output voltage directly proportional to the distance between the probe tip and the conductive target. A standard 5-meter system provides a 2 mm linear range and a nominal incremental scale factor of 7.87 V/mm, or 200 mV/mil. |
|
|
◉
Fluid-Film Bearings
Suitable for vibration and position measurements associated with rotating machinery using fluid-film bearing arrangements.
|
◌
Shaft Monitoring
Non-contact sensing supports monitoring of shaft position and dynamic movement without physical contact with the rotating surface.
|
↗
Keyphasor & Speed
The 3300 XL 8 mm system also supports Keyphasor reference and speed measurement applications.
|
|
TRANSDUCER SYSTEM
A Three-Part Measurement Chain
The 3300 XL 8 mm system is built around three coordinated elements:
01 · Probe — detects the conductive target without contact.
02 · Extension Cable — connects the probe to the Proximitor Sensor where required.
03 · Proximitor Sensor — forms the electronic interface for the transducer system.
|
COMPATIBILITY
Interchangeable System Architecture
3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, subject to the applicable system performance limitations.
For a complete 3300 XL 8 mm arrangement, the probe, extension cable and Proximitor Sensor should be selected as a compatible system configuration.
|
|
PROFESSIONAL TEAM
|
GLOBAL INVENTORY SUPPORT
|
|
◆
Quality
Reliable industrial automation parts for demanding operations.
|
◇
Reliability
Efficient delivery designed to help reduce equipment downtime.
|
●
Trust
Clear communication and long-term customer relationships.
|
✦
Service
Practical support for unique industrial equipment requirements.
|
|
What type of probe is 330104-06-14-10-02-00?
It is a 3300 XL 8 mm proximity probe using an M10 × 1 metric thread and an armored probe construction.
|
What are the configured probe dimensions?
The ordering configuration specifies a 60 mm unthreaded length, 140 mm overall case length and a 1.0 meter total probe length.
|
|
What does the “02” cable option represent?
The “02” option specifies a miniature coaxial ClickLoc connector with the standard cable configuration.
|
What measurements can the 3300 XL 8 mm system perform?
The system supports static position and dynamic vibration measurements, with additional applications for Keyphasor reference and speed measurement.
|
|
Why is the 3300 XL 8 mm system used on rotating machinery?
Its non-contact eddy-current measurement principle is suited to monitoring shaft movement and position on machinery with fluid-film bearings.
|
Can this probe operate as a standalone monitoring system?
The probe is one element of the transducer system. A compatible Proximitor Sensor and, where required, an extension cable complete the measurement chain.
|
