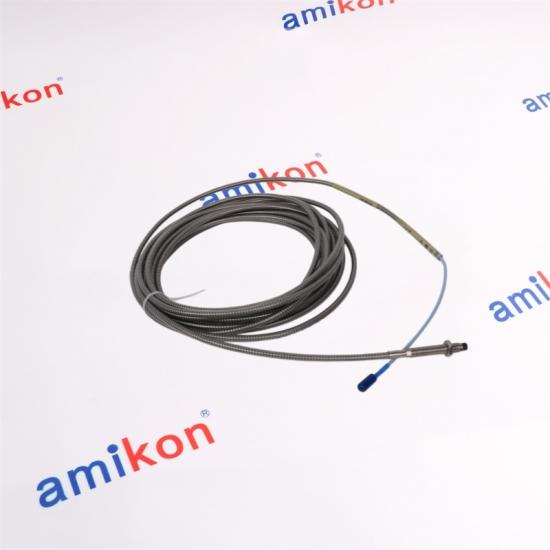

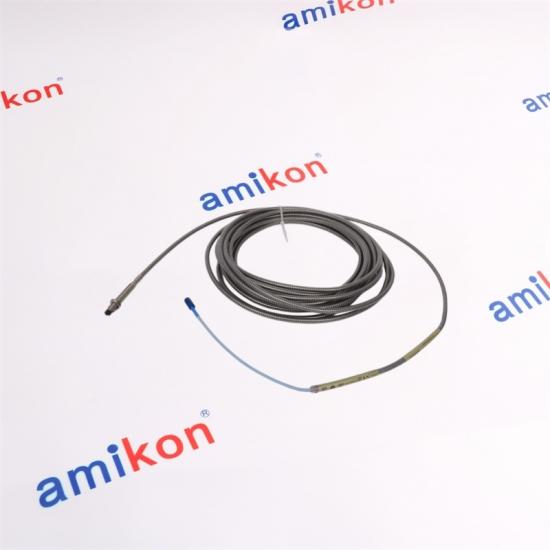

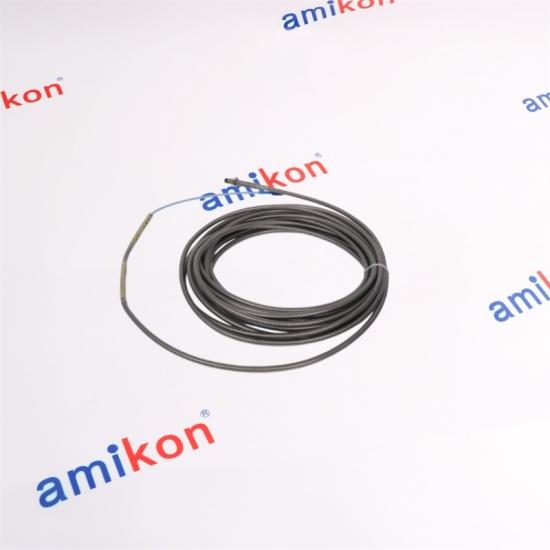

Bently Nevada 330104-00-06-90-02-05 3300 XL 8 mm Proximity Probe for Position and Vibration Measurement
A precision proximity measurement component designed for use within the 3300 XL 8 mm transducer system, supporting non-contact monitoring of conductive surfaces for both position and vibration measurement.
The proximity system produces an output related to the distance between the probe tip and the observed conductive surface, supporting static position measurement.
The same sensing principle supports dynamic measurement, making the system suitable for machinery vibration observation.
3300 XL system architecture supports interchangeable probes, extension cables and Proximitor sensors without individual component matching.
3300 XL 8 mm proximity systems are commonly applied to fluid-film bearing machines where shaft vibration and position need continuous observation. They can also support Keyphasor and speed measurement functions within machinery monitoring arrangements.
Plants may search for this probe when a sensing channel shows unstable readings, abnormal gap-related behavior, damaged probe wiring, or when a failed proximity component interrupts reliable shaft condition monitoring.
If the affected measurement point cannot be restored promptly, the loss of dependable vibration or position feedback can complicate machinery assessment and increase the risk of delayed troubleshooting or extended production interruption.
Our sales office responds actively to spare-part requests, replacement planning and delivery scheduling needs.
Our sales office focuses on quick responses to spare-part requests, practical replacement solutions and delivery suggestions shaped around customer schedules.
We support a broad range of electrical and industrial automation spare parts and can discuss alternatives, replacement options and stocking requirements.
As part of the 3300 XL 8 mm proximity transducer system, it supports sensing arrangements used for static position and dynamic vibration measurement.
The measurement principle is based on the relationship between probe-to-target distance and system output, allowing movement relative to a conductive surface to be monitored.
The 3300 XL architecture supports interchangeability among probes, extension cables and Proximitor sensors without requiring individual component matching or bench calibration.
Typical applications include vibration and position measurement on fluid-film bearing machines, together with Keyphasor reference and speed measurement functions.
A replacement may be required when the existing sensing point has suffered probe or cable damage, unreliable output or loss of dependable machine condition feedback that could delay restoration of the monitoring channel.
