The 3300 XL 8 mm system uses a probe, extension cable and Proximitor Sensor to produce a voltage proportional to the distance between the probe tip and conductive target. The system supports static position and dynamic vibration measurement on fluid-film bearing machines.
Relative shaft vibration, axial position and gap-related machine movement.
Turbines, compressors, pumps and other rotating equipment with fluid-film bearings.
Match electrical length, route cable carefully and verify target material, connector and approvals.
Only after confirming compatibility with the extension cable and Proximitor Sensor, including total electrical length.
Thread and case dimensions, connector condition, cable routing, target material and the installed gap setting.
Provide the complete suffix, label photo, quantity and destination.
AMIKON helps industrial teams locate machinery-monitoring and automation components with responsive sourcing and international delivery.

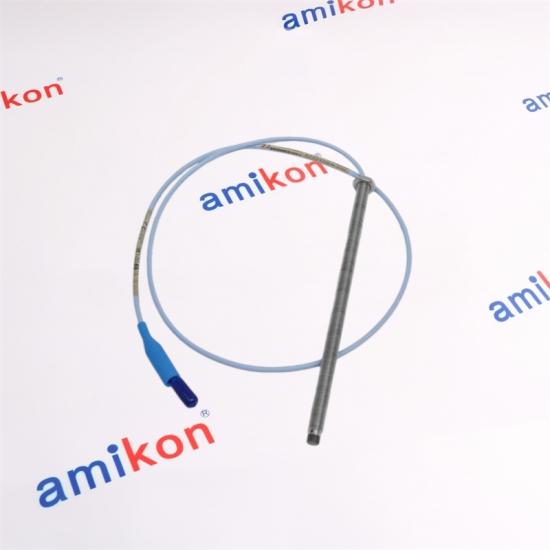

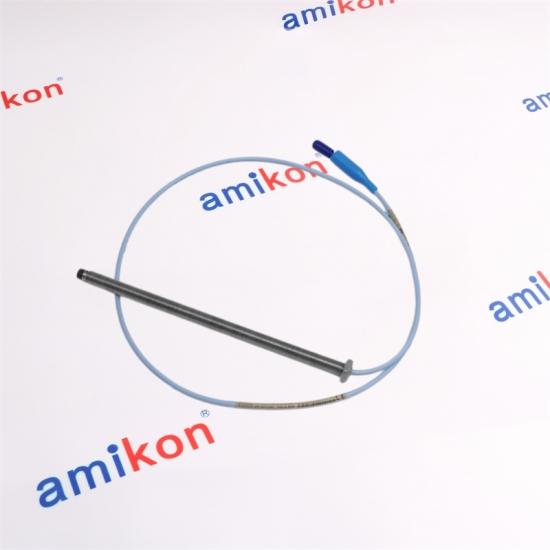

The complete code identifies the long 2.1 m case, 1.0 m cable, FluidLoc cable option and CN approval configuration.
Verify mounting reach, bend radius, connector access and the probe-tip gap specified for the matched 3300 XL system.
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
