Probe Configuration

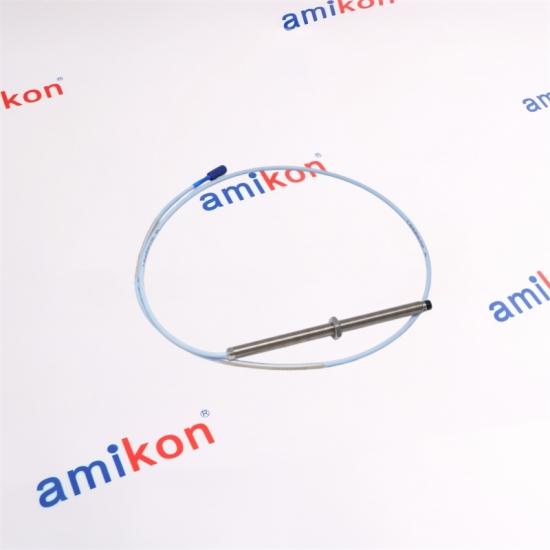

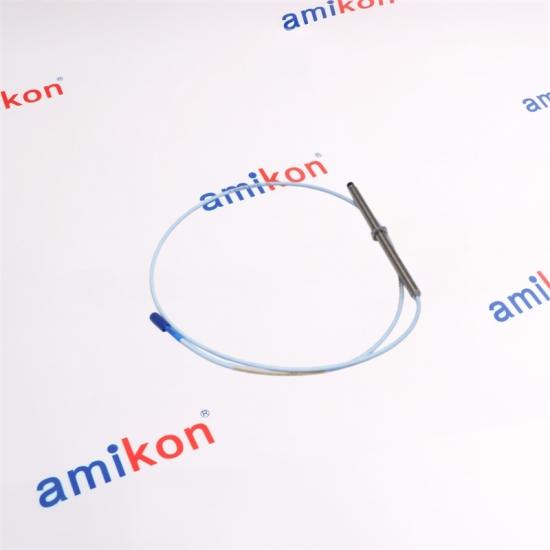

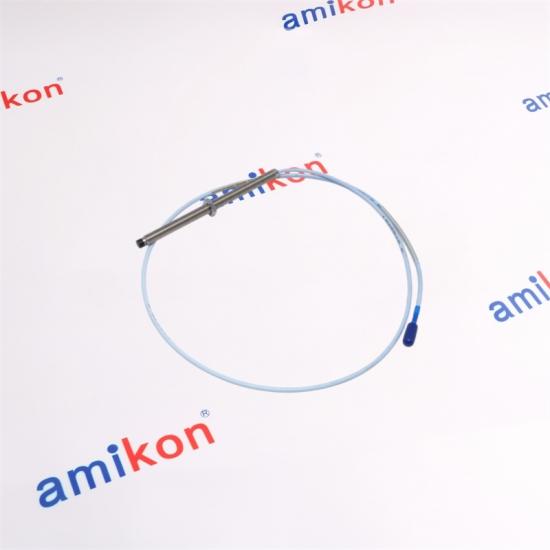

The 330101-00-16-05-02-05 configuration belongs to the 3300 XL 8 mm proximity probe family and uses a 1.6-inch total case length. |
◇
Connection
The configuration uses a miniature coaxial ClickLoc™ connector with a standard cable arrangement and a 0.5-meter cable length. |
|
△
Approval Configuration
The final suffix “05” corresponds to the CSA, ATEX and IECEx approval option for this configuration. |
○
System Role
Used as the probe element within a 3300 XL 8 mm proximity transducer system for machinery monitoring. |
| Product family | 3300 XL 8 mm Proximity Probe |
| Total case length | 1.6 in |
| Cable length | 0.5 m / 1.6 ft |
| Connector | Miniature coaxial ClickLoc™ connector |
| Approval option | CSA / ATEX / IECEx |
|
MACHINERY MONITORING
When the Probe Becomes CriticalIn rotating machinery monitoring, a proximity probe forms the sensing element used to observe shaft movement and position. A correctly matched probe configuration is therefore important when maintaining an existing monitoring channel. The 3300 XL 8 mm family is associated with machinery condition monitoring applications. When an installed probe develops a connection problem, mechanical damage, cable deterioration or an unstable measurement channel, maintenance teams may need to identify the exact replacement configuration before returning the monitoring loop to service. For rotating equipment where vibration or shaft-position monitoring supports protective action, an unavailable or incorrectly matched probe can extend troubleshooting time and potentially delay equipment restart. |
SERVICE CHECKPOINT
01 Confirm part number
02 Check cable and connector
03 Match the installed system
|
The 330101-00-16-05-02-05 combination brings together the 3300 XL 8 mm probe family, 1.6-inch case length, 0.5-meter cable configuration, miniature coaxial ClickLoc™ connection and the specified agency approval option.
Start with the complete part number rather than matching only the 3300 XL family. The 330101-00-16-05-02-05 configuration combines a 1.6-inch case length, 0.5-meter cable, miniature coaxial ClickLoc™ connector and the CSA/ATEX/IECEx approval option.
In this ordering configuration, “16” corresponds to the 1.6-inch total case length option.
Because this part number specifies a 0.5-meter cable configuration. Matching the installed cable arrangement helps avoid purchasing a probe with a different system configuration.
Yes. The “05” approval option corresponds to CSA, ATEX and IECEx approvals for this configuration.
Please provide the complete Part Number, Quantity, Destination, Required Date and Machine/System. These details allow the quotation to be matched to the actual maintenance requirement.
|
Need a price for 330101-00-16-05-02-05?
Send the complete part number and quantity for a prompt quotation.
|
REQUEST PRICE |
