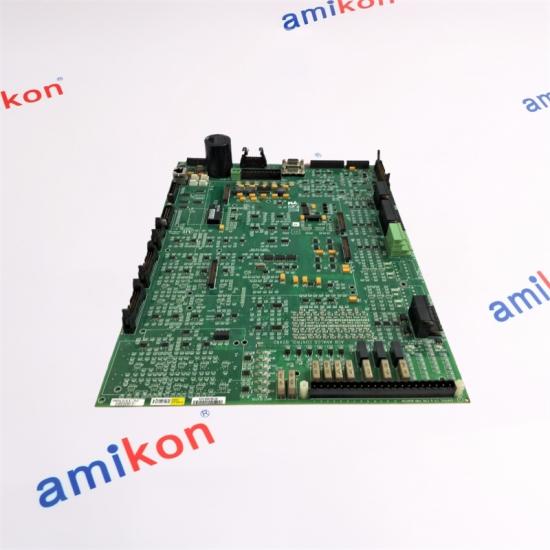

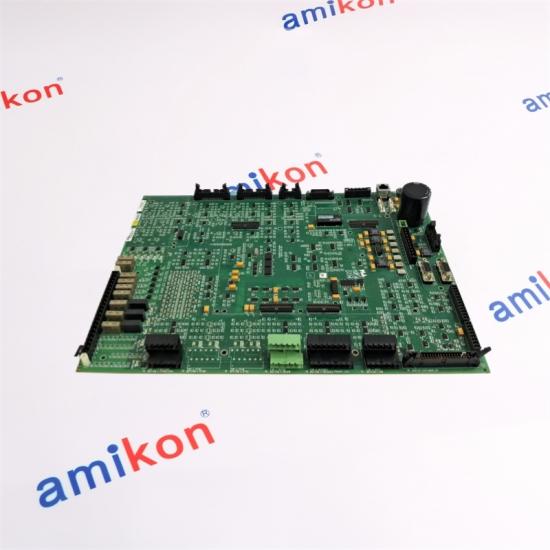

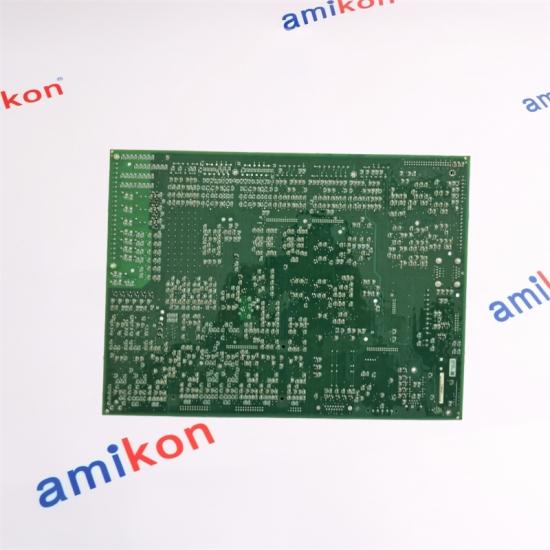

Allen Bradley 80190-560-02-R Analog Control Board

Sales manager

Miya

Click E-mail

sales@amikon.cn

Whatsapp

+86 18020776792

All items are NEW.

Any inquiries will be replied within 1 hour.

We check them more than three times before we send out the goods!

One year warranty

Worldwide Fast Shipment

Fits PowerFlex 7000 MV drive; handles all analog I/O for one chassis slot.

4 differential inputs: 0-10 V, 0-20 mA or 4-20 mA, 14-bit resolution.

2 isolated outputs: 0-10 V / 4-20 mA, 12-bit, loop-powered.

Update time ≤ 2 ms; accuracy ±0.1 % full scale @ 25 °C.

Supply drawn from drive back-plane: 24 V DC, 70 mA max.

Working temperature -20 °C…+60 °C; conformal-coated PCB.

Hot-swappable; auto-detected by drive firmware rev. 4.x and later.

CE/UL/cUL marked; 5.2 × 3.4 × 2.1 in, 1.5 lb.

80190-560-02-R is the Allen-Bradley analog control board that plugs straight into a PowerFlex 7000 medium-voltage drive, giving it four high-resolution analog inputs and two isolated outputs for speed, torque or process feedback, all refreshed in under 2 ms and ready to run the moment it snaps into the back-plane.
