Allen-Bradley 2711-B6C81 Pane View 600 Standard HMI

Contact：Miya Zheng

Email: sales@amikon.cn 

Whatsapp/phone: +86 18020776792

Overview

The Allen-Bradley/Rockwell Automation 2711-B6C8L1 terminal is an operator interface terminal from the Panelview 600 series. Its screen supports color graphics for clear and attractive data displays. The 2711-B6C8L1 operator interface terminal can be controlled both by a touchscreen and a keypad. The keypad includes numeric keys, navigation keys, and programmable function.

Description

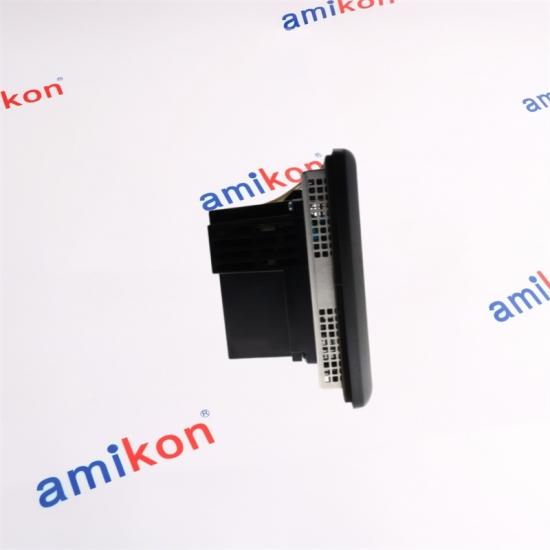

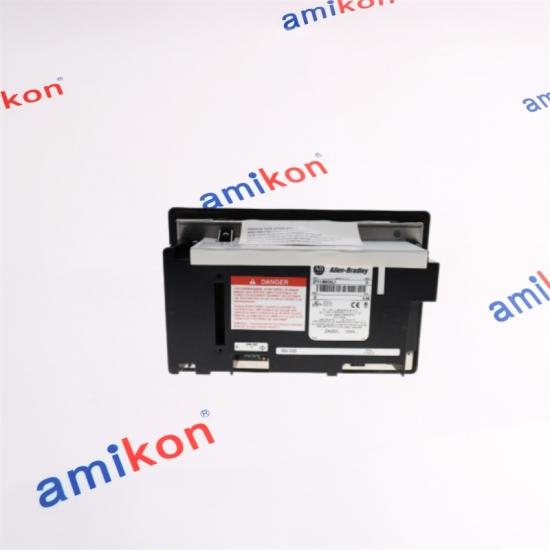

The discontinued Allen Bradley Panelview 600 2711-B6C8L1 is an operator terminal that enables the user to interface with their machine. This HMI has a 5 in. Color Display. The user is able to control the HMI using the Keypad/Touchscreen to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 240 KB. If applicable this unit has an internal backlight replacement part number of 2711-NL5. The approximate shipping weight and dimensions are 6 lbs. and 14 x 11 x 8 in. The Data Highway Plus terminals are capable of point-to-point communication with a single controller, as well as network communication with multiple controllers over an Allen-Bradley DH+ network. Direct access to controller data files minimizes ladder logic. The PC memory card interface can also be used.

Technical specifications

FAQ for Allen-Bradley 2711-B6C8L1

Q1: What is the Allen-Bradley 2711-B6C8L1 used for?

The Allen-Bradley 2711-B6C8L1 is a PanelView 600 operator interface terminal designed for industrial machine monitoring and control. It allows operators to interact with PLC systems through graphical displays, keypad input, and touchscreen functions.

Q2: What display and input features does the 2711-B6C8L1 provide?

This terminal features a 5-inch color display with a resolution of 320 × 234 pixels. It supports both keypad and touchscreen operation, providing flexible machine control and user-friendly navigation.

Q3: What communication options are supported by the 2711-B6C8L1?

The 2711-B6C8L1 supports DH+ communication and an RS-232 printer port. These communication interfaces enable reliable connectivity with Allen-Bradley controllers and industrial automation systems.

Q4: What are the power requirements of the 2711-B6C8L1 terminal?

The terminal operates on 18–32V DC input power and includes 240 KB of memory for application runtime and data handling. It also supports replaceable backlight modules for extended service life.

Q5: Is the Allen-Bradley 2711-B6C8L1 still available?

The 2711-B6C8L1 has been discontinued by the manufacturer, but refurbished, surplus, repair, and replacement units are still available through industrial automation suppliers worldwide.
