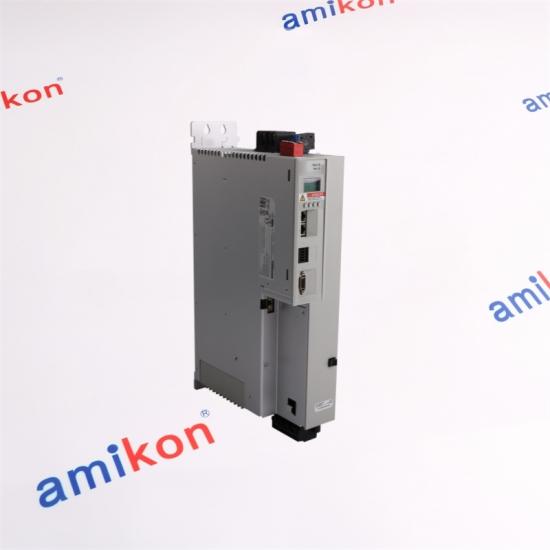

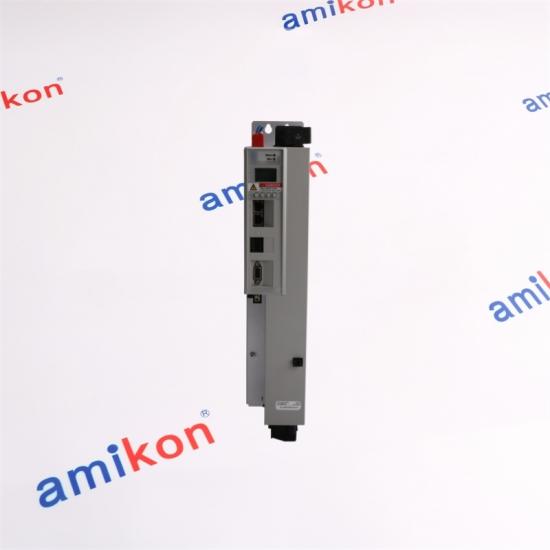

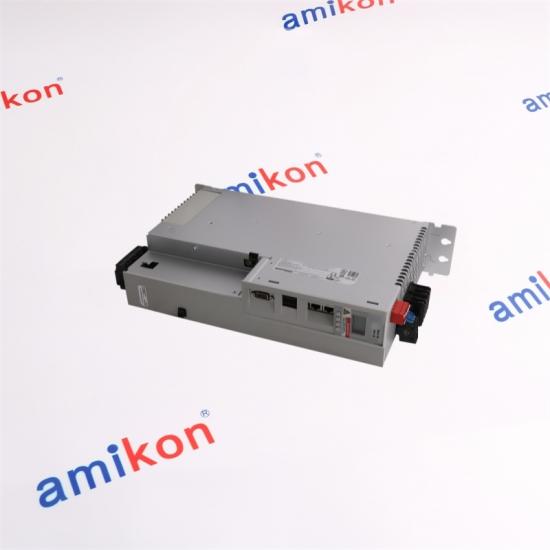

Allen-Bradley 2198-S086-ERS3 Kinetix 5700 Single-Axis Servo Drive Inverter Module
|
K57
NODE / 01
|
ALLEN-BRADLEY / KINETIX 5700
2198-S086-ERS343 A SINGLE-AXIS INVERTER
High-performance Kinetix 5700 axis inverter for a shared DC-bus motion architecture, rated 43 A rms continuous and engineered for coordinated servo control.
|
CONTROL PROFILE
MOTION POWER NODE
CATALOG ●
SERIES ● SYSTEM ● |
| REQUEST PRICE & AVAILABILITY | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
|
02
|
TECHNICAL DATA
Technical Specifications
|
|
|
03
|
SYSTEM PATH
Functional Role & System Integration
|
|
| The inverter operates on the Kinetix 5700 shared DC bus with a compatible bus supply, Logix motion controller, EtherNet/IP motion network, motor feedback and motor-power accessories. The servo system requires at least a DC-bus supply and an axis module; module sizing must reflect motor current, duty cycle, regeneration and cabinet thermal conditions. | Engineering gate Identity / rating / revision / wiring / configuration / validation |
| DISCUSS YOUR REQUIREMENT | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| Sales manager: Miya zheng | ||
|
06
|
PURCHASE & ENGINEERING
Frequently Asked Questions
|
|
| 01 |
Can 2198-S086-ERS3 operate by itself?
No. It is an axis inverter within a Kinetix 5700 system and requires a suitable shared DC-bus supply and control architecture.
|
| 02 |
Is the 43 A value peak current?
No. 43 A is the continuous rms output rating; the peak rms rating is 86 A.
|
| 03 |
Can 2198-S086-ERS4 be installed as a direct substitute?
Not without verification. Confirm firmware, controller support, safety functions, wiring and the validated machine safety design.
|
| 04 |
What cabinet space should be allowed?
The module is 85 mm wide and approximately 433 mm high by 250 mm deep; also maintain the required clearances and airflow.
|
| 05 |
Which details are needed for quotation and sizing?
Provide motor catalog number, supply and bus arrangement, duty cycle, firmware, safety requirement and installed axis catalog number.
|
|
