69 A
DC bus supply class
|
480 V
Three-phase AC input class
|
85 mm
Module width
|

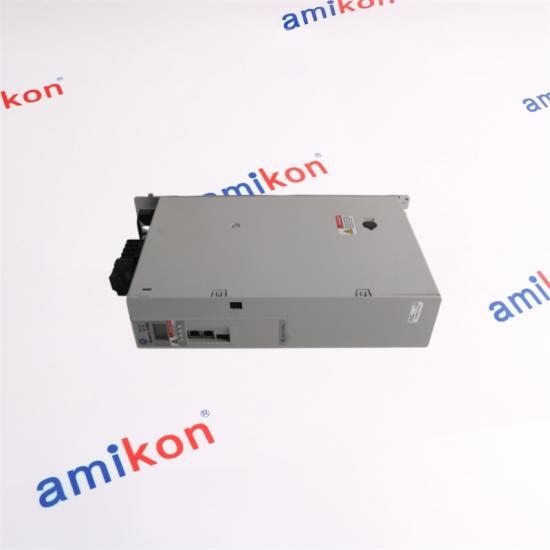

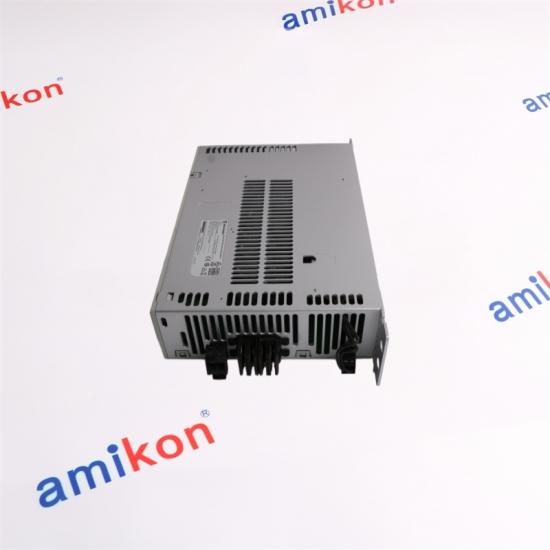

| Product role | Kinetix 5700 DC bus supply. It converts incoming AC power into the DC bus used by compatible inverter modules. |
| Motion-system position | Sits at the power-supply stage of the drive cluster; axis control and motor power delivery are handled through the compatible inverter and feedback architecture. |
| Shared DC bus | The Kinetix 5700 platform supports shared-bus configurations. When two or three DC-bus supplies are connected together in one drive cluster, Rockwell specifies that all supplies in that cluster must be catalog number 2198-P208. |
| Control power | A shared 24 V DC control-power connection is an available system arrangement. Confirm the actual cabinet wiring and accessory requirements for the intended build. |
| Installation planning | Check mounting clearances, grounding, AC-line components, protective devices, bus connections and thermal conditions before replacement or commissioning. |
| Lifecycle | The manufacturer currently identifies 2198-P208 as Active. Confirm the delivered unit's label, series and condition against your required installation. |
Send AMIKON the complete part number, required quantity, destination and a photo of the installed label. We can help check the requested configuration and availability before you place an order.
| Model / family | Primary role | When to consider it |
|---|---|---|
| 2198-P208 | Kinetix 5700 DC bus supply | For a compatible Kinetix 5700 power architecture, particularly where the existing cluster and shared-bus arrangement call for this exact catalog number. |
| 2198 inverter modules | Axis-level motor control | Select according to motor count, current demand, feedback and safety requirements; an inverter is not a substitute for the DC bus supply. |
| 2094-BM05-S | Kinetix 6000 axis module with Safe Torque Off | Relevant to legacy Kinetix 6000 installations. It belongs to a different drive generation and is not a direct drop-in replacement for 2198-P208. |
| 1394-SJT05-C | Legacy multi-axis GMC system module | Relevant when maintaining an existing Bulletin 1394 motion-control installation, not when building a Kinetix 5700 cluster. |
The key purchasing distinction is the system architecture, not just the voltage or power rating. Confirm the drive family, installed hardware, safety arrangement and complete catalog number before considering a replacement.
AMIKON supplies new and discontinued industrial automation parts to customers across a range of industries. Our focus is responsive service, practical order communication and dependable international delivery coordination to help customers address equipment replacement needs.
| Quality | We work to source parts that meet the requested model and condition requirements. |
| Reliability | We prioritize clear order communication and efficient shipping coordination. |
| Transparency | Customers can confirm part numbers, quantities, condition and destination before ordering. |
| Customer service | Our team helps customers communicate their application and sourcing requirements. |
Please include the following details so our sales team can review your request.
| Part number | 2198-P208 and required series, if applicable |
| Quantity | Required quantity |
| Destination | City and country |
| Required date | Target arrival date |
| Machine / system | Kinetix 5700 configuration and existing drive details |
Sales Manager: Miya Zheng · sales@amikon.cn · WhatsApp: +86 180 2077 6792
No. The 2198-P208 belongs to Kinetix 5700. A similar power rating or voltage does not establish mechanical, electrical or control compatibility with Kinetix 6000 or Bulletin 1394 equipment.
For a cluster with two or three DC bus supplies wired together, the specified configuration requires all of them to be 2198-P208. Confirm the complete cluster design before expanding or modifying it.
Compare the full catalog number and label, confirm the AC supply arrangement, inverter combination, shared-bus connections, protective devices and cabinet clearances. Provide photos of the existing installation if the configuration is uncertain.
Its primary role is supplying the DC bus. Compatible Kinetix 5700 inverter modules provide the axis-level motor drive function, so the power supply alone does not replace an inverter.
Provide the catalog number, series or revision shown on the label, the existing system layout and the intended use. Confirm the offered unit's condition and any required accessories before purchase; do not rely on a product photo alone.
