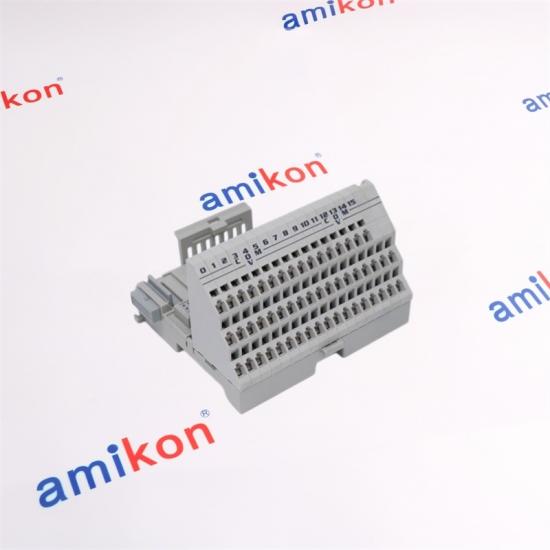

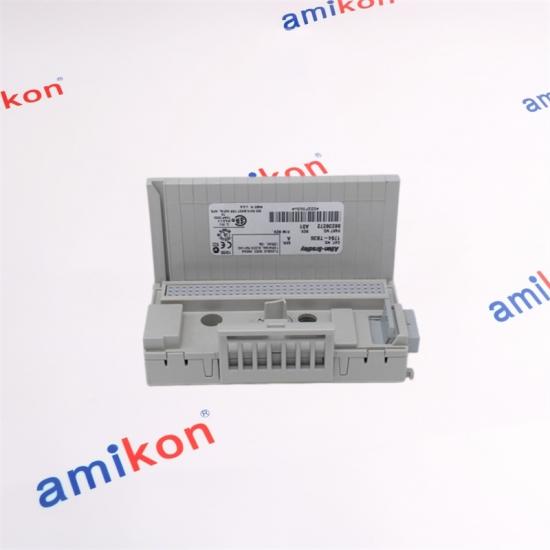

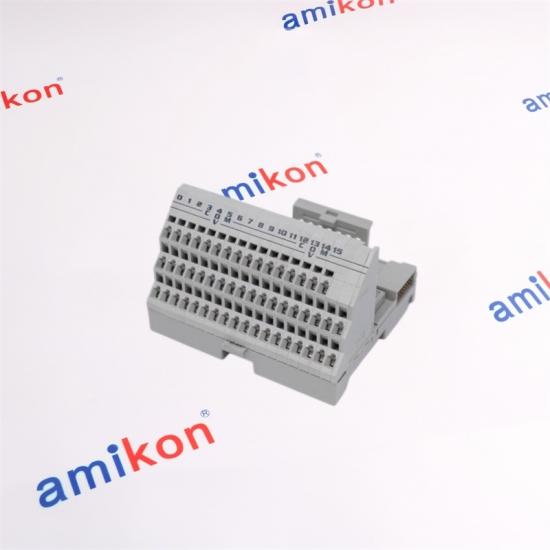

Allen-Bradley 1794-TB3S Flex I/O Terminal Base Unit

Manufacturer

Allen Bradley

Product Type

Flex I/O Terminal Base Unit

Product Line

Flex I/O 1794

Part Number

1794-TB3S

UPC

612598170906

Weight

0.50 lbs (0.23 kg)

Clamp Type

Spring Clamp

Current Rating

10A

Number of Inputs/Outputs

16 I/O

Minimum Frequency

50 Hz

Maximum Frequency

60 Hz

Wire Size

22 to 12 AWG

Operating Temperature Range

-20 to 70°C

Storage Temperature Range

-20 to 85°C

Relative Humidity

5 to 95% (non-condensing)

Vibration Resistance

5 g from 10 Hz to 150 Hz

Within the Flex I/O 1794 series, the 1794-TB3S terminal base unit stands out for its practicality in industrial applications. Designed for efficient integration, this unit supports a total of 16 input and output channels, allowing for versatile connectivity to different devices. Its current rating is 10A, ensuring adequate power capabilities for connected modules.

The spring clamp designed for this terminal unit allows for easy assembly and wire connections, accommodating a wire size range of 22 to 12 AWG. This flexibility makes it suitable for a variety of wiring needs. In terms of environmental tolerance, the 1794-TB3S operates effectively in temperatures ranging from -20 to 70 degrees Celsius. Furthermore, it can be safely stored at temperatures from -20 to 85 degrees Celsius, making it resilient in varying operational conditions.

Relative humidity levels between 5% and 95% can be tolerated without condensation, allowing its use in diverse environments. The unit also features vibration resistance, rated at 5 g over a frequency range of 10 Hz to 150 Hz. This enhances the reliability of the 1794-TB3S in applications where physical movement and vibration are expected. Consequently, the Allen Bradley 1794-TB3S terminal base unit is designed for dependable performance in a range of industrial settings, ensuring robust operation and reliability.

1. How does the AB 1794-TB3S terminal base structure contribute to modular field I/O scalability within FLEX I/O distributed control architectures?

The AB 1794-TB3S serves as a 3-wire terminal base unit within the FLEX I/O system, enabling modular installation of I/O modules. It supports scalable distributed control configurations by allowing field wiring termination directly at the base level, simplifying system expansion and maintenance.

2. What wiring topology and signal termination methodology does the AB 1794-TB3S employ to ensure stable electrical connectivity in high-density industrial installations?

The AB 1794-TB3S utilizes a screw-clamp termination system, providing secure and vibration-resistant wiring connections. This design enhances signal stability and reduces the risk of intermittent faults in high-vibration industrial environments such as machinery skids and process control panels.

3. In what way does the AB 1794-TB3S enhance maintainability and hot-swap efficiency within FLEX I/O node configurations?

The AB 1794-TB3S supports removable I/O module mounting, allowing modules to be replaced without rewiring the entire field termination block. This improves maintenance efficiency and reduces system downtime during module replacement or diagnostics.

4. How does the AB 1794-TB3S support signal segregation and wiring density optimization in complex distributed I/O layouts?

The AB 1794-TB3S is engineered to support compact terminal grouping with structured channel separation, enabling efficient wiring management in dense I/O assemblies. This reduces wiring congestion while improving traceability and field-level signal organization.

5. Why is the AB 1794-TB3S considered a critical infrastructure component in FLEX I/O systems despite being a passive interface module?

The AB 1794-TB3S plays a foundational role in FLEX I/O systems by acting as the physical interface between field wiring and I/O modules. Its mechanical robustness, standardized terminal layout, and compatibility with FLEX I/O adapters make it essential for reliable long-term distributed control system operation.
