Part Number |
1784-PKTX |
|
GTIN |
10612598181046 |
|
Weight |
0.56 lbs (0.26 kg) |
|
Description |
Network Interface card |
|
Part Number |
1784-PKTX |
We are spare parts specialists in the field of industrial automation.
Ø Inventory: Extensive range of new and discontinued components from multiple manufacturers.
Ø Cost-Effective: Competitive pricing with exclusive distributor discounts.
Ø Reliability: Every product is tested and backed by at least 12 months of warranty.
Ø Speed: Rapid response and efficient delivery services.
Ø Expertise: A robust commercial organization staffed by well-trained engineers.
Ø Global Reach: A worldwide network of partners and preferred suppliers.
|
Professional contact channel |
|
Sales Manager：Miya zheng |
|
E-mail: sales@amikon.cn |
|
Phone: +86-18020776792（whatsapp） |
Allen-Bradley 1784-PKTX Overview

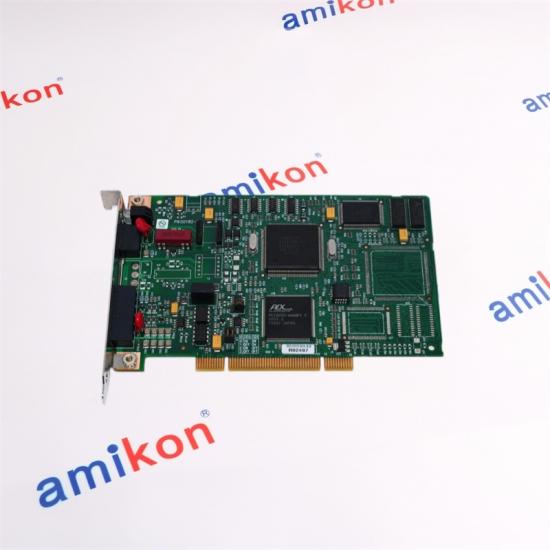

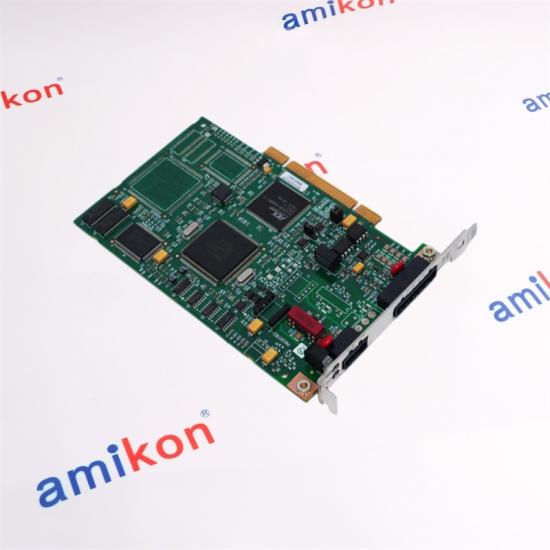

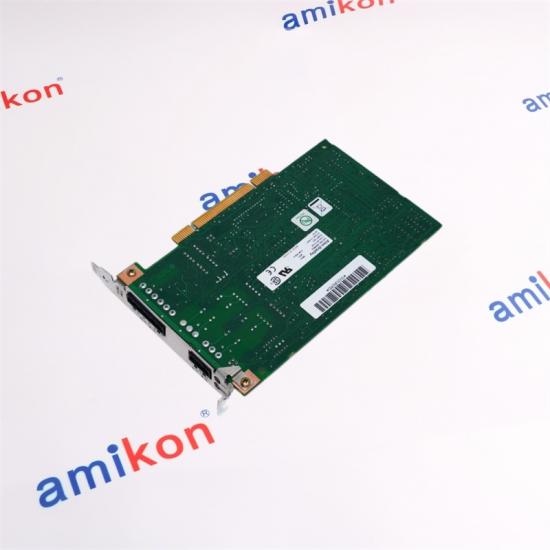

The Allen-Bradley 1784-PKTX is a PCI communication interface card designed for connecting personal computers to DH+, Remote I/O (RIO), and DH-485 industrial networks. Compatible with PCI Bus Version 2.3, the module enables reliable communication with PLC systems for process monitoring, programming, and industrial automation applications. It supports long-distance data transmission, diagnostic LED indicators, and RSLinx driver compatibility for stable network performance.
Technical specifications for 1784-PKTX
|
Manufacturer |
Allen Bradley |
|
Category |
PLCs |
|
Product Line |
PLC 5 |
|
Communication Protocol |
Data Highway Plus (DH+); Remote I/O (RIO); DH-485 |
|
Communication channels |
Channel 1A: DH+ / RIO Channel 1C: DH-485 |
|
PCI port |
PCI 2.3 compliant |
|
Compatible controllers |
PLC-5, PLC-5/250, and SLC 5/04 processors, and SLC 5/01, SLC 5/02, and SLC5/03 processors (only via 1785-KA5) |
|
Remote I/O scanner |
Supported |
|
DH+ / RIO Maximum cable and communication |
10,000 ft. (3048 m) @ 57.6K bit/s 5, 000 ft. (1,524 m) @ 115.2K bits/s 2,500 ft. (762 m) @ 230.4K bits/s |
|
DH-485 maximum cable and communication |
4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s |
|
Status LEDs |
1 diagnostic/status LED per channel |
|
Number of modules per system |
Four (4) |
|
Module Type |
Bus Communication Card |
|
Wiring Arm |
1771-WN |
|
Required External Power |
None |
|
Max Modules Per System |
4 |
|
Bus Communcations |
Local PCI 2.3 Compliant |
|
LEDs |
1 Diagnosis/Status Per Channel |
|
Coating |
Conformal Coat |
|
Typical AC Signal Delay (Off) |
29 (+/- 8) ms |
|
Typical DC Signal Delay (Off) |
30 (+/- 7) ms |
|
Channels |
1A 3-Pin Phoenix for DH+ & Remote I/O, 1C 6-Pin Phoenix for DH-485 |
|
DH+/DH-485/RIO |
Yes |
FQA
Questions: What is the primary purpose of the 1784-PKTX module?
Answer: The 1784-PKTX is a PCI communication interface card used to connect personal computers to DH+, Remote I/O, and DH-485 industrial networks.
Questions: Which communication networks are supported by the 1784-PKTX?
Answer: The module supports DH+, Remote I/O (RIO), and DH-485 communication networks.
Questions: What is the maximum communication distance supported by the module?
Answer: The module supports communication distances up to 10,000 feet at 57.6 Kbit/s on DH+ and Remote I/O networks.
Questions: Which software driver is commonly used with the 1784-PKTX?
Answer: The module commonly uses the RSLinx PKTx driver for network communication.
Questions: What environmental conditions can the 1784-PKTX operate in?
Answer: The module operates in temperatures from 0°C to 60°C with 5% to 95% non-condensing humidity tolerance.
