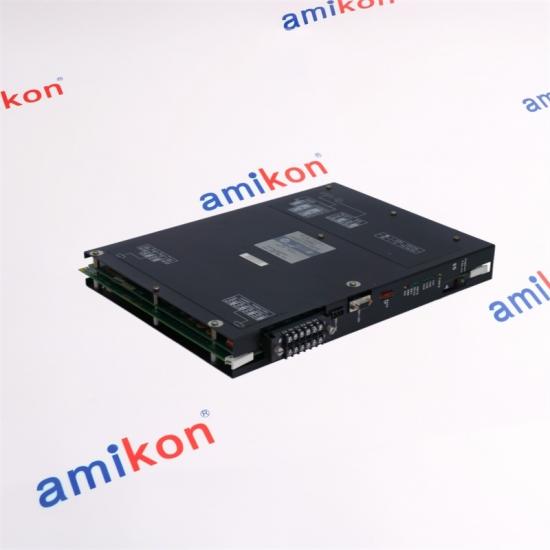

Allen Bradley 1775-S5 communication adapter module

Manufacturer

Allen Bradley

Product Type

Communication Adapter Module

Product Line

PLC 3

Part Number

1775-S5

Weight

6.38 lbs (2.89 kg)

UPC

612598294930

Power Dissipation

30 W (typical)

Module Installation Type

PLC-3 Backplane Slot

Compatible Processor Chassis

1775-A1, 1775-A2, 1775-A3

Communication Interface Type

Scanner/Adapter Module

I/O Scan Priority Capability

Supported

Auxiliary Supply Voltage

±15 VDC

Current Consumption

20 mA

Operating Voltage

5 VDC

The 1775-S5, manufactured by Allen Bradley, serves as a communication adapter module optimized for use with the PLC 3 family. Designed to fit into a PLC-3 backplane slot, it achieves seamless connectivity within compatible processor chassis such as the 1775-A1, 1775-A2, and 1775-A3. This module consumes a typical power of approximately 30 watts and has a current consumption of 20 mA, making it relatively efficient for its capabilities.

It employs a scanner/adapter module communication interface type that allows for versatile integration and operational efficiency. Supporting I/O scan priority capability, the 1775-S5 can manage multiple inputs and outputs effectively. It features four distinct I/O communication channels, with each channel capable of accommodating up to 4,096 points, thereby facilitating extensive data management tasks. Furthermore, it supports a maximum of 16 I/O chassis per channel, allowing for significant flexibility in system design and configuration.

This unit can operate with an auxiliary supply voltage of ±15 VDC, boasting a current capacity of 6 A. Additionally, its operational voltage stands at 5 VDC. For installation flexibility, the maximum cable length permitted for each channel is 10,000 feet.

Multi-Channel Communication

Supports four independent I/O communication channels for flexible system integration

Large I/O Capacity

Handles up to 4,096 I/O points per channel for extensive automation control

Remote I/O Support

Supports up to 16 remote I/O chassis on each communication channel

Long Cable Distance

Allows communication cable lengths up to 10,000 feet per channel

Efficient Power Consumption

Typical power consumption of approximately 30 Watts

PLC-3 Compatibility

Compatible with PLC-3 chassis including 1775-A1, 1775-A2, and 1775-A3

Reliable Data Exchange

Scanner/adapter interface ensures stable communication performance

Industrial Application Ready

Suitable for manufacturing, process control, and heavy industrial automation

Question

Answer

What is the primary function of the 1775-S5 module?

The 1775-S5 functions as a scanner/adapter communication module used in PLC-3 systems to manage remote I/O communication and distributed control operations.

Which PLC chassis are compatible with the 1775-S5?

The module is compatible with Allen-Bradley PLC-3 chassis including the 1775-A1, 1775-A2, and 1775-A3 models.

How many I/O points can the 1775-S5 support?

Each communication channel can support up to 4,096 I/O points, providing high-capacity data management for industrial systems.

What is the maximum communication cable distance supported?

The module supports communication cable lengths up to 10,000 feet per channel, making it suitable for large-scale facilities.

What industries commonly use the 1775-S5?

The 1775-S5 is commonly used in manufacturing plants, oil and gas facilities, power generation systems, chemical processing, and other industrial automation environments.
