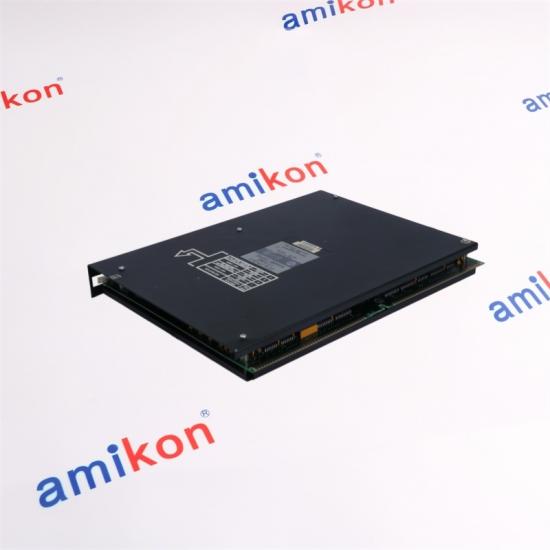

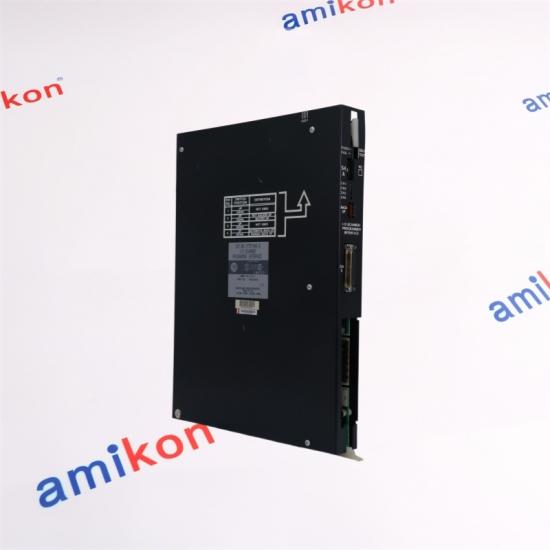

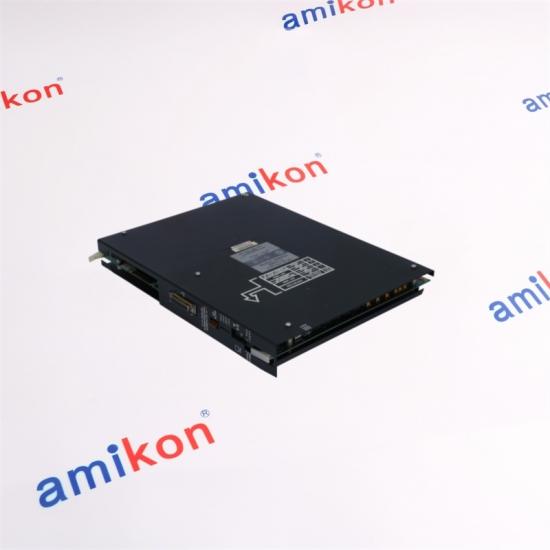

Allen Bradley 1775-S4A I/O scanner programmer interface

The Allen-Bradley 1775-S4A is an I/O scanner programmer interface module developed for the Allen-Bradley PLC-3 series. Manufactured by Rockwell Automation, this module is designed to provide efficient communication and interface functionality for industrial automation systems.

The 1775-S4A module features four dedicated input ports and four output ports, enabling stable and efficient communication between PLC systems and connected devices. Utilizing RS-232-C communication standards, the module supports reliable data exchange for industrial control and monitoring applications.

Designed for industrial environments, the 1775-S4A operates within a temperature range of 0°C to 40°C and supports humidity levels up to 80%. It is also suitable for installation at altitudes up to 1000 meters above sea level, providing flexibility for deployment across a variety of industrial locations and operating conditions.

Manufacturer

Allen Bradley

Product Type

I/O Scanner Programmer Interface

Product Line

PLC 3

Part Number

1775-S4A

Weight

4.88 lbs (2.21 kg)

Number Of Input Communication Ports

4 Input Ports

Number of Output Communication Ports

4 Output Ports

Communication Port

RA-232 C COMMUNICATION

Operating Humidity

80% (Non-condensing)

Storage Humidity

80% (Non-condensing)

Installation Altitude

1000 MSL

Feature

Description

PLC-3 Compatibility

Designed specifically for Allen-Bradley PLC-3 systems

Multiple Communication Ports

Includes 4 input ports and 4 output ports

RS-232-C Communication

Supports reliable industrial communication standards

Efficient Data Exchange

Provides stable communication between connected devices

Industrial Environmental Support

Operates reliably in industrial conditions

Question

Answer

What is the primary function of the Allen-Bradley 1775-S4A?

The 1775-S4A provides communication and interface functions for Allen-Bradley PLC-3 automation systems.

How many communication ports does the 1775-S4A include?

The module includes 4 input ports and 4 output ports.

What communication standard does the 1775-S4A use?

The module uses RS-232-C communication standards for data exchange.

What environmental conditions can the 1775-S4A operate in?

The module operates within temperatures from 0°C to 40°C and humidity levels up to 80%.

Is the 1775-S4A suitable for high-altitude installations?

Yes. The module supports installation at altitudes up to 1000 meters above sea level.
