Weight |
5.19 lbs (2.35 kg) |
|
Input Voltage |
5-15 VDC |
|
Current Rating |
5.0 A |
|
Logic Current |
80 mA |
|
System Compatibility |
PLC-3 Expansion Module |
Company Profile
▷For over two decades, AMIKON has been a trusted leader in the industrial automation supply industry.
▷As a reliable supplier of automation components, we have continuously expanded our product range, grown our global customer base, and earned multiple industry recognitions.
▷Our long-standing success stems from our unwavering commitment to quality, reliability, and customer satisfaction.
▷Whether you're sourcing hard-to-find or obsolete parts, AMIKON stands out among automation suppliers with deep industry expertise, exceptional service, and unmatched warranty support.
contact channel
Email: sales@amikon.cn
Whatsapp/phone: +86 18020776792
Overview

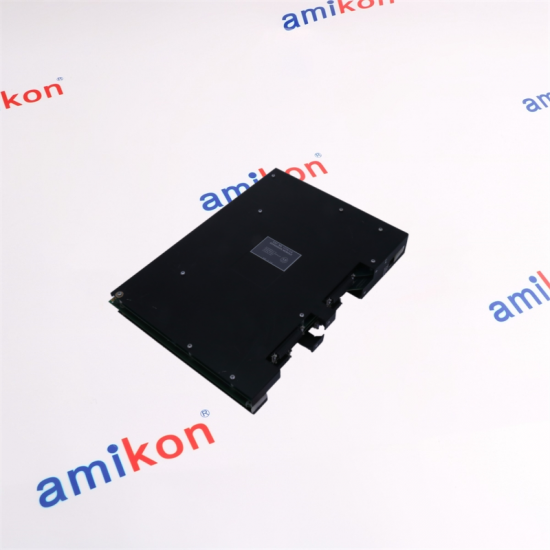

▷The Allen-Bradley 1775-LX is a communication adapter module designed for Allen-Bradley PLC-3 expansion systems. Manufactured by Rockwell Automation, this module provides reliable communication integration and expansion capabilities for industrial automation applications.
▷The 1775-LX communication adapter is engineered to support efficient data exchange within PLC-3 systems while maintaining stable operation in demanding industrial environments. It operates with an input voltage range of 5 VDC to 15 VDC and supports a current rating of up to 5.0 amperes. With low logic current consumption of only 80 milliamperes, the module offers energy-efficient communication performance.
▷Designed for flexible industrial installations, the 1775-LX operates within a temperature range of 0°C to 40°C and supports humidity levels up to 80% non-condensing. It is also suitable for installations at altitudes up to 1000 meters above mean sea level, making it adaptable for a variety of industrial applications and expansion systems.
Details
|
Manufacturer |
Allen Bradley |
|
Product Type |
Communication Adapter Module |
|
Product Line |
PLC 3 |
|
Part Number |
1775-LX |
|
Max. Operating Temperature |
40 °C |
|
Min. Storage Temperature |
0 °C |
|
Max. Storage Temperature |
40 °C |
|
Operating Humidity |
80% (Non-condensing) |
|
Storage Humidity |
80% (Non-condensing) |
|
Installation Altitude |
1000 MSL |
|
Max. Operating Temperature |
40 °C |
Features
|
PLC-3 Expansion Compatibility |
Specifically designed for PLC-3 expansion systems |
|
Wide Input Voltage Range |
Operates with 5 VDC to 15 VDC input voltage |
|
Efficient Current Handling |
Supports up to 5.0 A current rating |
|
Low Logic Power Consumption |
Consumes only 80 mA logic current |
|
Reliable Communication Integration |
Enhances system communication capabilities |
|
Industrial Environmental Support |
Operates reliably in industrial conditions |
|
Humidity Resistance |
Supports up to 80% non-condensing humidity |
|
Flexible Installation |
Suitable for installations up to 1000 m altitude |
|
Compact Expansion Solution |
Integrates easily into existing PLC systems |
|
Stable Operational Performance |
Designed for dependable automation system operation |
FQA
|
Question |
Answer |
|
What is the primary function of the Allen-Bradley 1775-LX? |
The 1775-LX provides communication expansion and integration capabilities for Allen-Bradley PLC-3 systems. |
|
What input voltage range does the 1775-LX support? |
The module operates with an input voltage range of 5 VDC to 15 VDC. |
|
What environmental conditions can the 1775-LX handle? |
The module operates in temperatures from 0°C to 40°C and supports up to 80% non-condensing humidity. |
|
What is the current handling capability of the 1775-LX? |
The communication adapter supports a current rating of 5.0 amperes with 80 mA logic current consumption. |
|
Is the 1775-LX suitable for high-altitude installations? |
Yes. The module can be installed at altitudes up to 1000 meters above mean sea level. |
