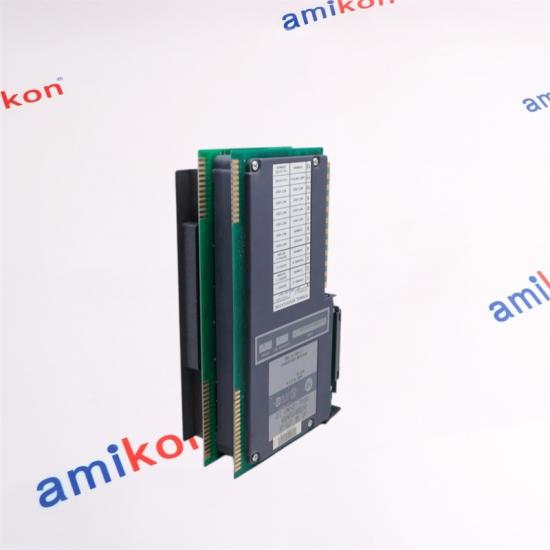

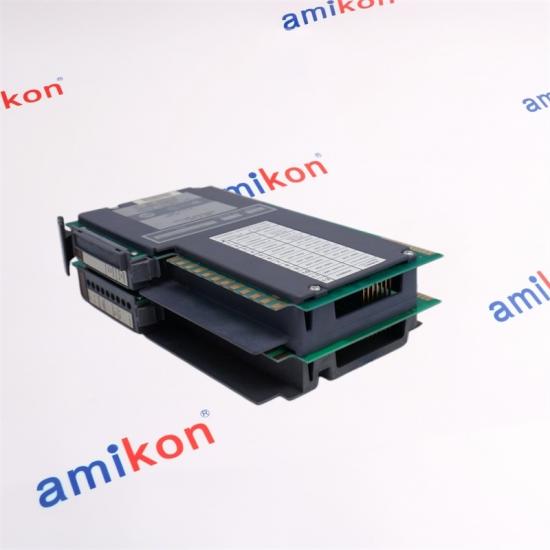

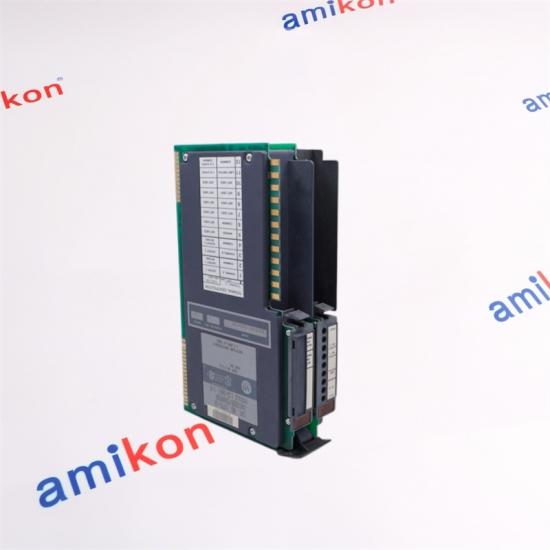

Allen-Bradley 1771-IK counter module and encoder module

Details

Main Features

² High-speed encoder/counter module designed for PLC-5 and 1771 I/O systems.

² Supports quadrature encoders, optical beam counters, and pulse input devices.

² Maximum input frequency up to 50 kHz for accurate high-speed counting applications.

² Supports both encoder mode and counter mode for flexible industrial control.

² Compatible with binary and BCD data formats for easier PLC programming integration.

² Features two open-collector outputs for external control functions.

² LED status indicators simplify troubleshooting and system diagnostics.

² Supports block transfer and single transfer communication modes.

² Requires external 12–24V DC power supply for stable operation.

² Rugged industrial-grade construction ensures reliable long-term performance in harsh environments.

FAQ

Q: What is the Allen-Bradley 1771-IK used for?

A: The 1771-IK is an encoder/counter module used for high-speed pulse counting, position tracking, and motion control applications in industrial automation systems.

Q: What devices are compatible with the 1771-IK?

A: The module supports quadrature encoders, optical beam counters, proximity switches, and other pulse-generating input devices.

Q: What is the maximum input frequency of the 1771-IK?

A: The 1771-IK supports high-speed pulse inputs up to 50 kHz for accurate counting and encoder applications.

Q: What are the main advantages of the 1771-IK?

A: Key advantages include high-speed processing, precise counting accuracy, flexible encoder compatibility, reliable industrial performance, and seamless integration with PLC-5 systems.

Q: Does the 1771-IK require an external power supply?

A: Yes, the module requires an external 12–24V DC power supply for stable operation.
